Pushbuttons

A22NN-MGM-NRA-G202-NN

Omron A22NN-MGM-NRA-G202-NN - Assm, FG, BM Bzl, Red, 2NC

Omron

ZB5AW0M33

Schneider Electric ZB5AW0M33 is a light unit within the XB5 sub-range, featuring a light block with an integral LED and a body/fixing collar. It is constructed from plastic and offers a degree of protection rated at IP20. This unit is designed to operate at a network frequency of 50/60 Hz, with dimensions of 49 mm in height, 55 mm in depth, and 30 mm in width. It includes 2 Normally Open (NO) auxiliary contacts and supports a supply voltage of both AC and DC at 230 V and 240 V. The light color emitted by the LED is green. The control circuit rated current is specified as 10 A for 120Vac (AC-15), 6 A for 240Vac (AC-15), 3 A for 600Vac (AC-15), 1.2 A for 125Vdc (DC-13), 0.55 A for 250Vdc (DC-13), 0.27 A for 600Vdc (DC-13), and 0.1 A for various DC voltages. Connection to the unit is facilitated through screw-clamp terminals, and it is designed to withstand a rated impulse voltage (Uimp) of 6 kV.

Schneider Electric

D7P-MM63

Sprecher + Schuh D7P-MM63 - D7 22mm Push Button, Non-Illuminated, Plastic, Mushroom Momentary 60mm, Green, Operator Only, UL Type 4/4X/13, IP66

Sprecher + Schuh

LPCB1102

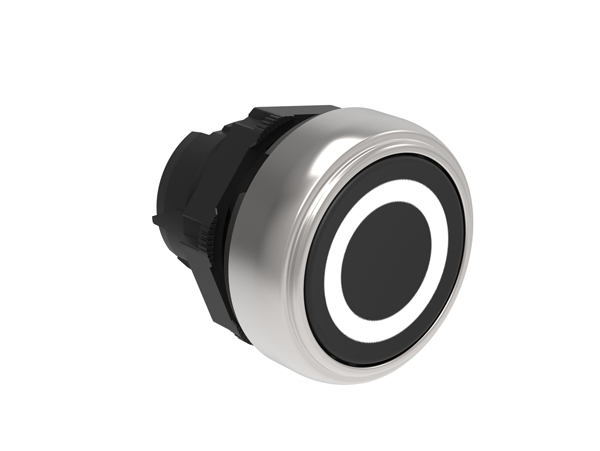

LPCB1102 Lovato - Pushbutton actuator, spring return, with symbol dia: 22mm Platinum series chromed plastic, flush, 0/Black

Lovato Electric

XB7NJ06M1

Schneider Electric XB7NJ06M1 is an illuminated monolithic flush push-button from the XB7 sub-range, designed with a plastic body and a round shape. It features a rated impulse voltage (Uimp) of 4 kV and offers a degree of protection rated at IP65 NEMA 12, ensuring its suitability for various industrial environments. The mechanical durability of this push-button is rated at 300,000 operations at no load, with a network frequency of 50/60 Hz. It has a diameter of 22 mm, a net height of 29 mm, a net depth of 57.5 mm, and a net width of 29 mm. This model is equipped with 1 Normally Open (NO) auxiliary contact and operates with a supply voltage of 230 V AC. The light color of the push-button is blue. It includes short-circuit protection by a 4A gG cartridge fuse and has a control circuit rated current of 0.6 A at 120Vac (AC-14), 0.3 A at 240Vac (AC-14), 0.22 A at 125Vdc (DC-13), and 0.1 A at 250Vdc (DC-13). The type of terminals used are screw-clamp, and it features an operating mode of push-to-release stay-put (maintained/latched).

Schneider Electric

A22NK-3RB-01DA-G101

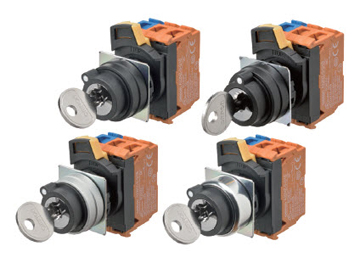

A22NK - 22 mm Keyed Selector Switch

Omron

A22NL-BPM-TRA-G102-RC

Omron A22NL-BPM-TRA-G102-RC - Assm Prj Plas Bzl Red 1 NO/NC

Omron

A165-TGA-1

Omron A165-TGA-1 - PB RND GREEN SPDT ALT

Omron

A30NZ-MPM-TWA

Omron A30NZ-MPM-TWA - White Brshd Mtl Bzl Proj Lum

Omron

D7M-LE7MD3X10

Sprecher + Schuh D7M-LE7MD3X10 - D7 22mm Push Button, Illuminated, Metal, Extended Momentary, Clear, 24V AC/DC Incandescent, Metal Latch, 1NO Standard, UL Type 4/13, IP66

Sprecher + Schuh

D7D-F1R01

Sprecher + Schuh D7D-F1R01 - D7D 22mm Push Button, Non-Illuminated, Monolithic, Flush Momentary, White, 1NC Ring Lug, UL Type 4/4X/13, IP66

Sprecher + Schuh

ZB4BW7A97

Schneider Electric ZB4BW7A97 is a head component from the XB4 sub-range, designed for automation systems. It features an illuminated double head configuration, including two flush black heads and one clear central pilot light. The bezel of the ZB4BW7A97 is made from metal and is black in color, with a rectangular shape. This part offers a high degree of protection with ratings of IP66 and IP69K, ensuring its suitability for use in environments requiring high levels of dust and water resistance. It has a diameter of 22 mm, with dimensions of 50 mm in height, 30 mm in depth, and 30 mm in width. The operating mode of the ZB4BW7A97 is spring-return, also known as impulse or momentary.

Schneider Electric

D7M-FA3MX10E

Sprecher + Schuh D7M-FA3MX10E - D7 22mm Push Button, Non-Illuminated, Metal, Flush Maintained, Green, Metal Latch, 1NO Early Make Standard, UL Type 4/13, IP66

Sprecher + Schuh

A22NL-BNA-TRA-G002-RC

Omron A22NL-BNA-TRA-G002-RC - Assm, Flt, Plas Bzl, Red, 1 NC

Omron

A22NL-MPA-TRA-P102-RE

Omron A22NL-MPA-TRA-P102-RE - PshInPrj BM Bzl Red 1 NO/NC

Omron

A22NL-MPM-TYA-P202-YE

Omron A22NL-MPM-TYA-P202-YE - PshIn Prj, BM Bzl, Yllw, 2NC

Omron

9001K11J38Y

Schneider Electric 9001K11J38Y is an illuminated selector switch featuring a standard handle and a metal (chromium-plated) bezel. This selector switch is designed for full voltage and resistor applications, with a yellow lens color and a primary voltage of 30 mm. It operates within a network frequency of 9001K and supports both AC and DC circuits at 110 V. The electrical durability of this switch is rated for 500,000 operations in a 2-position, stay-put (maintained/latched) configuration. It is equipped to handle speeds with protection ratings of IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, and NEMA 13. The type of lens measures 1.18 inches, and the switch allows for angular positions of -35° to +35°.

Schneider Electric

A22NZ-3BM-01CA

Omron A22NZ-3BM-01CA - 3 POS Key, Man Right Plastic

Omron

LPSBL106K11PB6

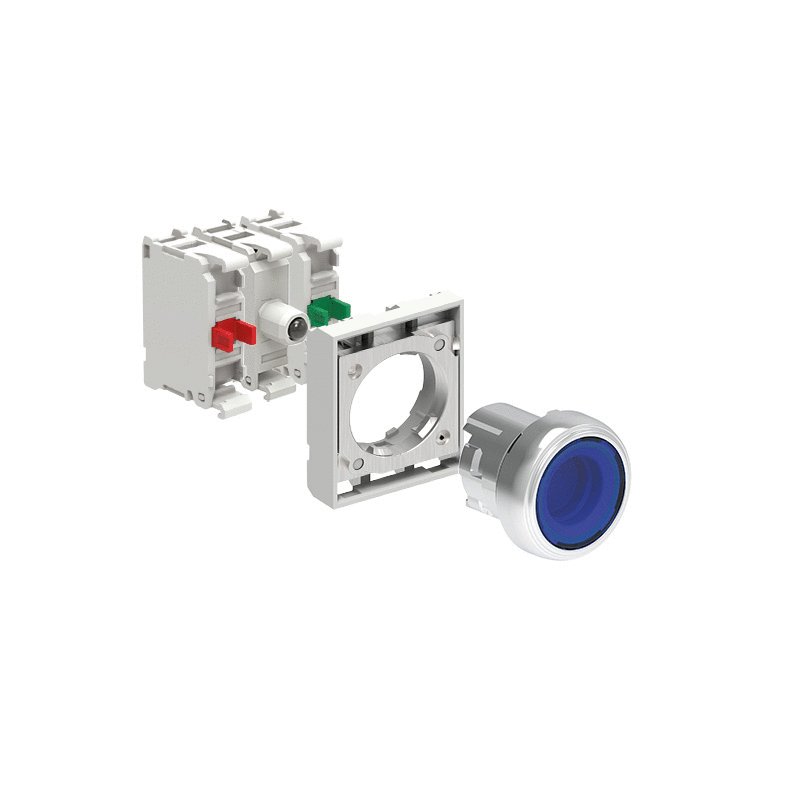

LPSBL106K11PB6 Lovato - KIT metal illuminated button actuator, spring return, flush, blue with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Lovato Electric

9001SKR3E

Schneider Electric 9001SKR3E is a flush corrosion-resistant push-button within the 9001SK sub-range, designed for a wide array of applications requiring a durable and chemical-resistant interface. This push-button is made from plastic and features a round shape with a diameter of 30 mm (1.18 in). It offers a high degree of protection, rated at IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, ensuring its suitability for use in environments requiring protection against dust, water, and corrosion. The mechanical durability of this push-button is rated for 5,000,000 operations at no load, highlighting its longevity in repetitive use scenarios. Its operating mode is a spring-return (impulse/momentary), facilitating brief and responsive actuation for various control tasks.

Schneider Electric
