Pneumatic Fittings

GPEB1004D

AirTAC GPEB1004D - GPEB10-04 Fitting (black)

AirTAC

X-S6-NPC5/16-1/2

Straight connector (NPT thread), 316 stainless steel, 5/16" inch tubing connection,1/2" NPT thread, 316 stainless steel, Viton

AirTAC

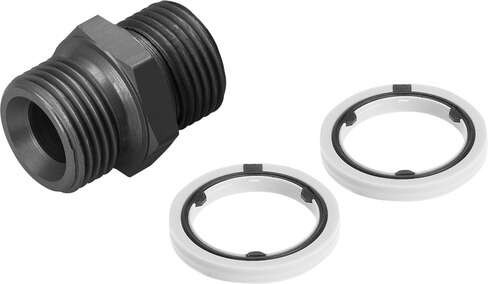

9630

double nipple E-G1/8-1/8NPT With 2 sealing rings. Nominal size: 5,95 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium: Lubrica

Festo

151996

quick coupling plug KS1-CN-2 For self-closing quick coupling connectors. Nominal size: 1,5 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 44 l/min, Operating medium: Compressed air in accordance with ISO8573

Festo

130625

push-in sleeve QSH-8-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

NPL3/8-1/8

AirTAC NPL3/8-1/8 - Inch Series NPL3/8-1/8 Fitting, NPL Series

AirTAC

PTL1204A-S

AirTAC PTL1204A-S - PTL12-04A Stainless steel Speed Controler Fitting (gray)

AirTAC

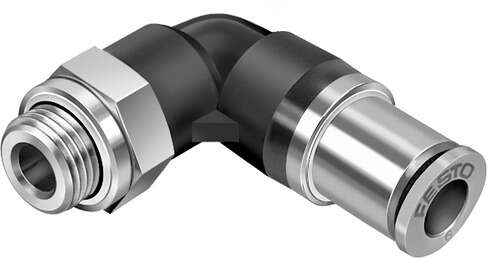

186311

self-sealing push-in L-fitting QSKL-G3/8-10 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 5,3 mm, Approved tubing type: (* PAN-, * PAN-MF-, * PAN-R-, * PAN-V0-, * PEN-, * PFAN-, * PLN-, * PTFEN-, * PUN-, * PUN-CM-, * PU

Festo

153246

multiple distributor QSLV6-3/8-8 6-fold, 360° orientable. Size: Standard, Nominal size: 4,1 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

X-S6-NPY3/8

Union "Y", 316 stainless steel, 3/8" inch tubing connection, NPT thread, 316 stainless steel, Viton

AirTAC

GPEG10-8D

AirTAC GPEG10-8D - GPEG10-8 Fitting (black)

AirTAC

POC402-S

AirTAC POC402-S - POC4-02 Stainless steel fitting (gray)

AirTAC

9397

adapter AD-G3/8-3/8NPT-I Female thread one one side, male thread on the other. Nominal size: 11,5 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -1

Festo

PZ4D

Union cross connector, Plastic body and plastic collar, 4 mm tubing connection,plastic, NBR, Black

AirTAC

POC1003

Hexagon socket head straight connector (PT thread), Nickel plated brass body with plastic collar, 10 mm tubing connection,3/8" PT thread, Nickel plated brass, NBR, Gray

AirTAC

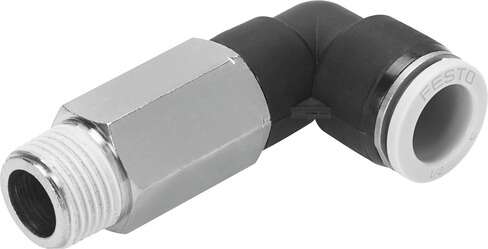

564683

push-in L-fitting, long QBLL-1/2-1/2-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,354 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

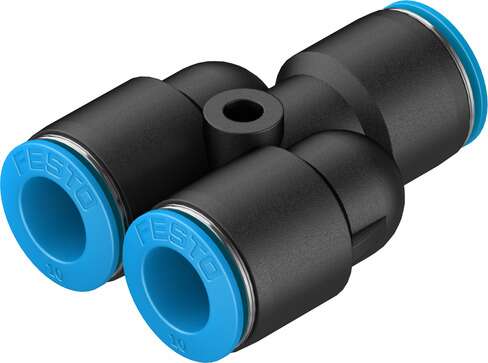

130810

push-in Y-connector QSY-10-20 Size: Standard, Nominal size: 5,9 mm, Assembly position: Any, Container size: 20, Design structure: Push/pull principle

Festo

4476

ring piece LK-1/8-PK-4 With 2 sealing rings. Maritime classification: see certificate, Pneumatic connection, port 2: for barbed connector internal diameter 4 mm with nut, Materials note: Conforms to RoHS

Festo

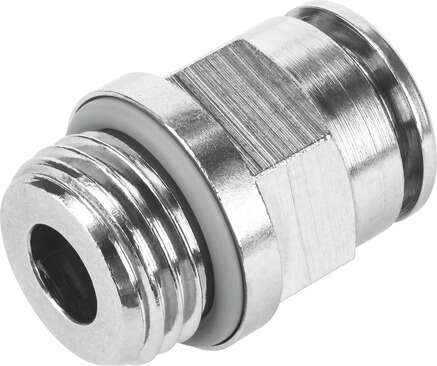

578348

push-in fitting NPQH-D-G38-Q14-P10 Size: Standard, Nominal size: 10 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

132643

push-in fitting CRQS-1/8-4 male thread with external hexagon. Size: Standard, Nominal size: 2,5 mm, Assembly position: Any, Design: Straight design, Container size: 1

Festo
