Molded Case Circuit Breakers (MCCB)

PDG32N0125D3YJ

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 85kA/480V, PXR20D LSIG w/ Modbus RTU, CAM Link, ZSI and Relays, Standard Line and Load (PDG3X2TA300)

Eaton

PDG32M0250P2DN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 65kA/480V, PXR25 LSI w/ Modbus RTU, CAM Link and Relays, No Terminals

Eaton

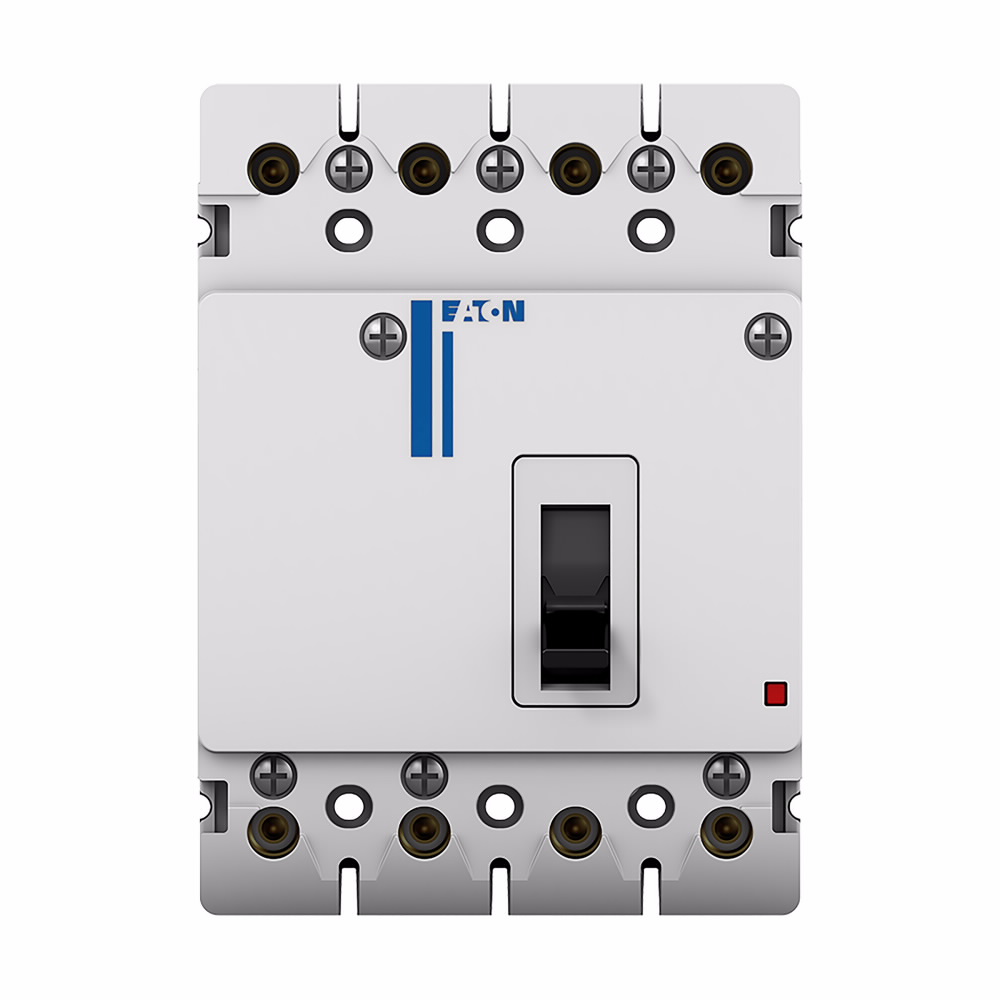

PDG10N0050TFFL

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (0% N), 50A, 85kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Load Only (PDG1X4T125)

Eaton

PDG32F0600D5ML

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 600A, 25kA/480V, PXR20D ARMS LSIG w/ Modbus RTU and Relays, Standard Terminals Load Only (PDG3X2TA632)

Eaton

PDG32NH250E5WJ

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A High Override, 85kA/480V, PXR20 ARMS LSIG w/ Modbus RTU, ZSI and Relays, Standard Line and Load (PDG3X2TA631)

Eaton

PDG32P0400E3CN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A, 100kA/480V, PXR20 LSIG w/ CAM Link and Relays, No Terminals

Eaton

PDC53M1600D5DM

Power Defense IEC/CCC, Frame 5, Three Pole, 1600A, 70kA/415V, PXR20D ARMS LSIG w/ Modbus RTU, CAM Link & Relays, Conductor Extensions-Metric

Eaton

XT7NQ380CSFF000XXX

Circuit breaker, XT7, 3 pole, 800 A, Ekip Touch Measuring LSIG trip, 600 VAC, UL 489

ABB Control

PDG32MH400E3WJ

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Override, 65kA/480V, PXR20 LSIG w/ Modbus RTU, ZSI and Relays, Standard Line and Load (PDG3X2TA631)

Eaton

PDG32P0125E3MJ

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V, PXR20 LSIG w/ Modbus RTU and Relays, Standard Line and Load (PDG3X2TA300)

Eaton

PDG32M0125D2YN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 65kA/480V, PXR20D LSI w/ Modbus RTU, CAM Link, ZSI and Relays, No Terminals

Eaton

LV430630

Schneider Electric LV430630 is a Moulded Case Circuit Breaker (MCCB) within the NSX160F sub-range. This MCCB features a lug connection type and is designed with 3 poles. It offers thermal protection for overload scenarios and magnetic protection for short-circuit conditions. The rated current for this device is 160A, with a rated insulation voltage (Ui) of 800 V. Protection settings include over-current adjustable from 0.7 - 1.0 x In and a short-circuit pickup current fixed at 1250A. The rated impulse voltage (Uimp) stands at 8 kV, with a trip current rating and frame current rating both at 160 AT and 160 AF, respectively. It boasts a mechanical durability of 40,000 operations at no load and an electrical durability of 40,000 operations at 440Vac; In/2 and 20,000 operations at 440Vac; In. The rated voltage (AC) phase-to-phase is 690 V, with all 3 poles protected. The trip unit type is a TMD Interchangeable Thermal-Magnetic (adjustable), and it falls under the utilisation category A.

Schneider Electric

XT7NC280CQFF000XXX

Circuit breaker, XT7, 2 pole, 800 A, Ekip Touch LSIG trip, 600 VAC, UL 489

ABB Control

PDG14C0025TFFL

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (100% N), 25A, 18kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Load Only (PDG1X4T125)

Eaton

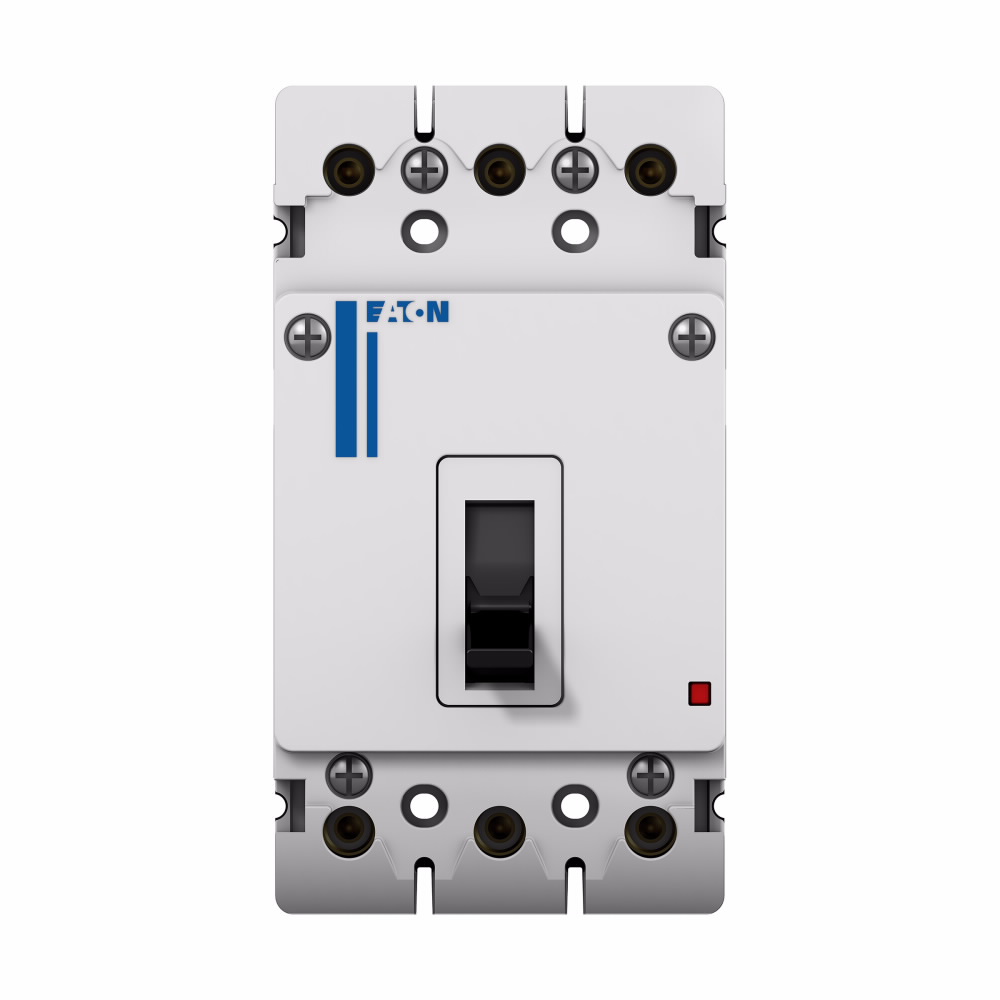

PDG13K0035TFFK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Three Pole, 35A, 50kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Line Only (PDG1X3T125)

Eaton

PDG32G0600E2XN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 600A, 35kA/480V, PXR20 LSI w/ CAM Link, ZSI and Relays, No Terminals

Eaton

PDG32N0250E3ZK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 85kA/480V, PXR20 LSIG w/ ZSI and Relays, Standard Terminals Line Only (PDG3X2TA350)

Eaton

PDG32K0125P3MK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 50kA/480V, PXR25 LSIG w/ Modbus RTU and Relays, Standard Terminals Line Only (PDG3X2TA300)

Eaton

LV433343

Schneider Electric LV433343 is a Moulded Case Circuit Breaker (MCCB) within the NSX100HB2 sub-range. It features a lug connection type and is designed with 3 poles. The LV433343 offers protection functions including L (Long-time protection), S0 (Short-time protection with fixed time delay), I (Instantaneous protection), and G (Ground fault protection). It has a rated current of 100A and a rated insulation voltage (Ui) of 800 V. The protection settings are adjustable, with L (Long-time protection) ranging from 0.4 to 1 x In, S (Short-time protection with adjustable time delay) from 1.5 to 15 x Ir with a time delay from 0.1 to 0.4s, I (Instantaneous protection) from 1.5 to 15 x In, and G (Ground fault protection) from 0.4 to 1 x In with a time delay of 0.1 to 0.4s. The rated impulse voltage (Uimp) is 8 kV, and the trip current rating is 100 AT with a frame current rating of 100 AF. Mechanical durability is rated at 20,000 operations at no load, and electrical durability at 10,000 operations (690Vac; In/2) and 5,000 operations (690Vac; In) with load. The rated voltage (AC) phase-to-phase is 690 V, and it protects 3 poles. The trip unit type is Micrologic 6.2E (LSIG) Interchangeable Electronic, featuring measurement functions such as I1, I2, I3, IN, Imax, Iground% unbalance%, U12, U23, U31, V1N, V2N, V3N, Uavg, Vavg, Voltage unbalance, phase sequence, P, Q, S, cos phi, Energy (kWh; kVAh; kVARh), demand current/power with an adjustable time window, THDu, THDv, THDi. It falls under the utilisation category A.

Schneider Electric

PDC54M1600E3XR

Power Defense IEC/CCC, Frame 5, Four Pole, 1600A, 70kA/415V, PXR20 LSIG w/ CAM Link, ZSI & Relays, Rear Terminals-Included

Eaton
