Molded Case Circuit Breakers (MCCB)

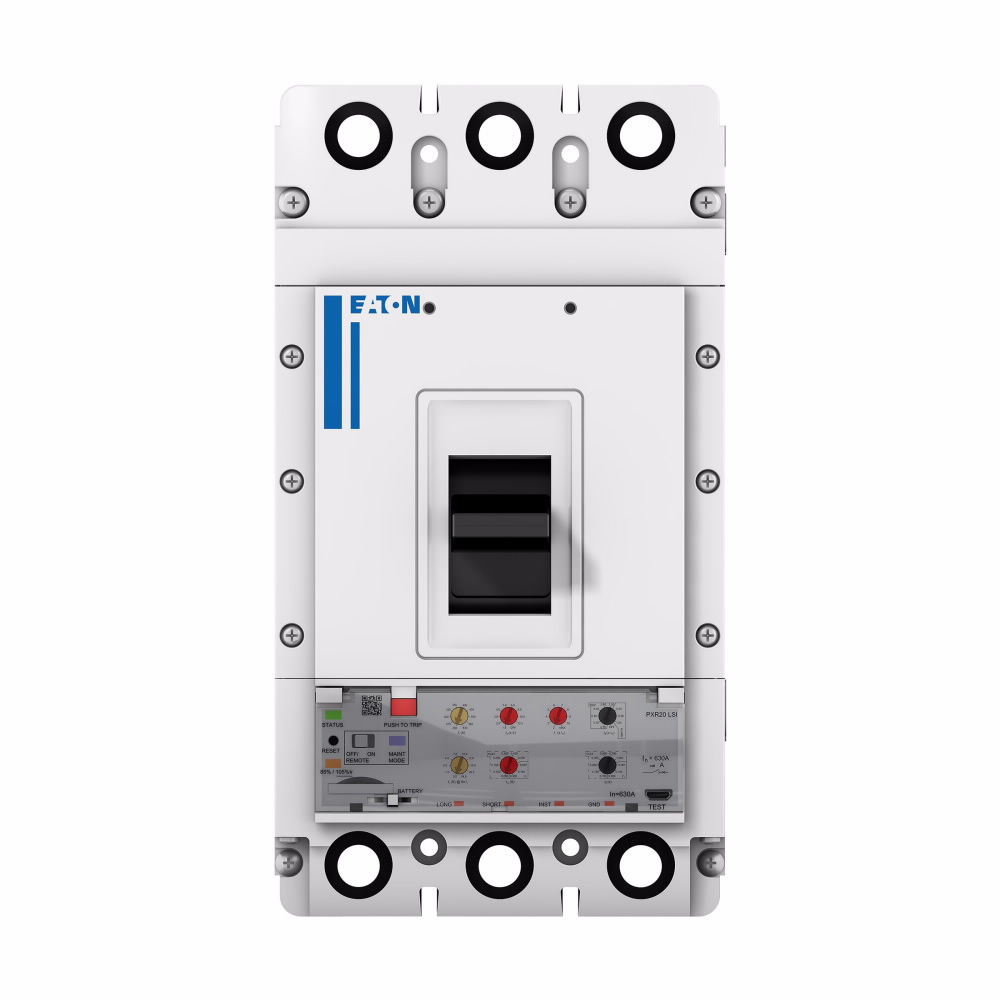

PDG32N0600E2CK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 600A, 85kA/480V, PXR20 LSI w/ CAM Link and Relays, Standard Terminals Line Only (PDG3X2TA632)

Eaton

PDG32M0125P4YL

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 65kA/480V, PXR25 ARMS LSI w/ Modbus RTU, CAM Link, ZSI and Relays, Standard Terminals Load Only (PDG3X2TA300)

Eaton

PDG32FH400E4MN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Override, 25kA/480V, PXR20 ARMS LSI w/ Modbus RTU and Relays, No Terminals

Eaton

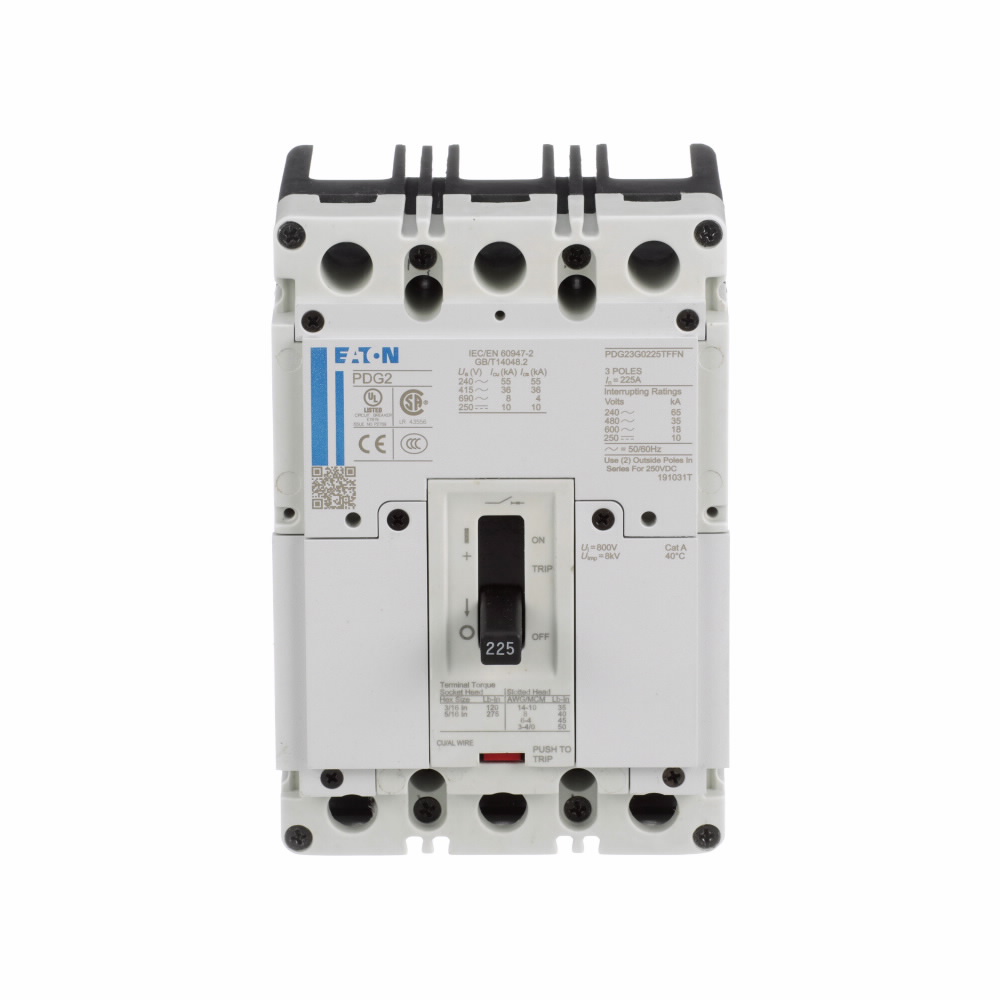

PDD23K0125TFFL

Eaton Power Defense molded case circuit breaker, UL/CSA 240V Max, Frame 2, Three Pole, 125A, 85kA/240V, T-M (Fxd-Fxd) TU, Standard Terminals Load Only (PDG2X3TA225)

Eaton

PDG32G0125D4MN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 35kA/480V, PXR20D ARMS LSI w/ Modbus RTU and Relays, No Terminals

Eaton

PDG32G0250D2WL

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 35kA/480V, PXR20D LSI w/ Modbus RTU, ZSI and Relays, Standard Terminals Load Only (PDG3X2TA350)

Eaton

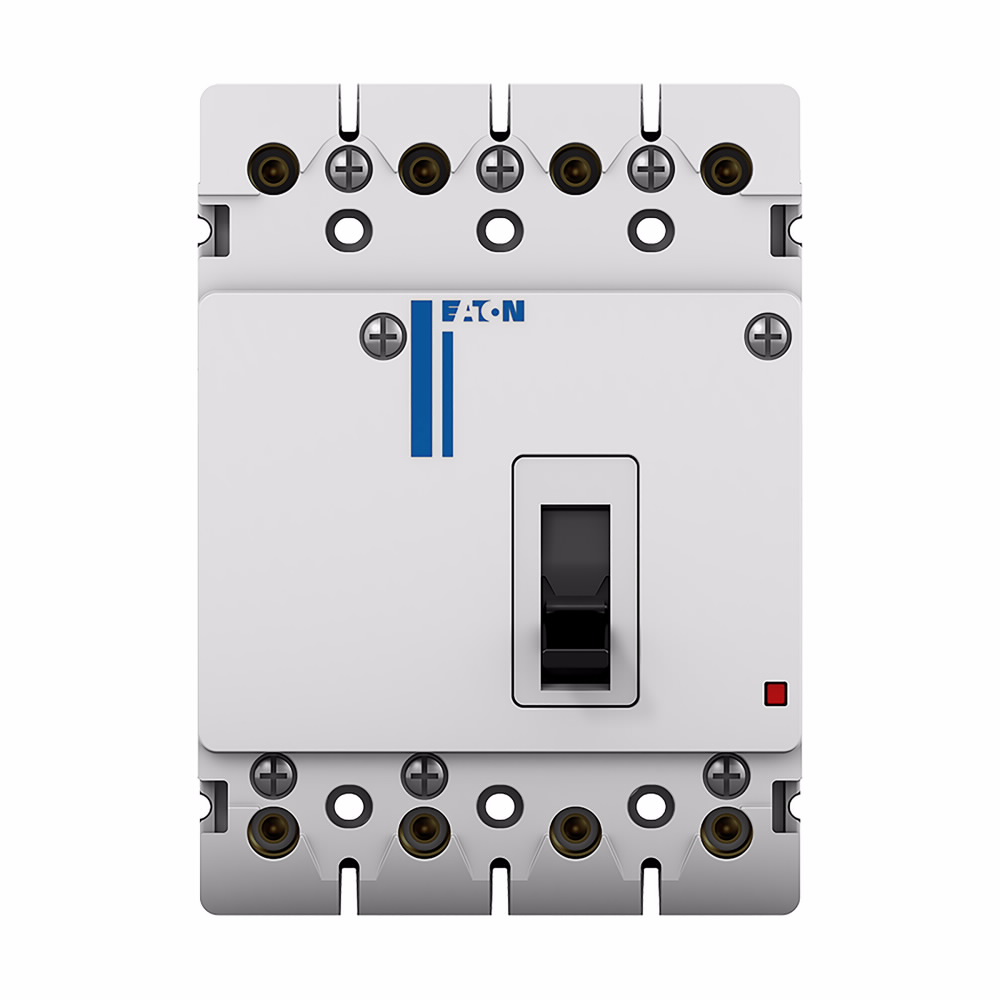

PDG10C0050TFFK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (0% N), 50A, 18kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Line Only (PDG1X4T125)

Eaton

PDG13M0110TFFK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Three Pole, 110A, 65kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Line Only (PDG1X3T125)

Eaton

PDG32PH250E4CK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A High Override, 100kA/480V, PXR20 ARMS LSI w/ CAM Link and Relays, Standard Terminals Line Only (PDG3X2TA631)

Eaton

XT7NQ410DGFF000XXX

Circuit breaker, XT7, 4 pole, 1000 A, Ekip DIP LSIG trip, 600 VAC, UL 489

ABB Control

PDG32M0400P4YK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A, 65kA/480V, PXR25 ARMS LSI w/ Modbus RTU, CAM Link, ZSI and Relays, Standard Terminals Line Only (PDG3X2TA400)

Eaton

LV433278

Schneider Electric LV433278 is a Moulded Case Circuit Breaker (MCCB) within the NSX100R sub-range, designed for lug connection and featuring 4 poles. It offers protection functions including L (Long-time protection), S0 (Short-time protection with fixed time delay), and I (Instantaneous protection). The rated current is 40A, with a rated insulation voltage (Ui) of 800 V. Protection settings are adjustable, with L (Long-time protection) ranging from 0.4 to 1 x In, S (Short-time protection with adjustable time delay) from 1.5 to 15 x Ir with a time delay from 0.1 to 0.4s, and I (Instantaneous protection) from 1.5 to 15 x In. It has a rated impulse voltage (Uimp) of 8 kV and a trip current rating of 40 AT. The frame current rating is 100 AF. Mechanical durability is rated at 20,000 operations at no load, and electrical durability at 10,000 operations (690Vac; In/2) and 5,000 operations (690Vac; In) with load. The rated voltage (AC) phase-to-phase is 690 V, with all 4 poles protected. The trip unit type is Micrologic 5.2E (LSI) Interchangeable Electronic, featuring measurement functions such as current and voltage across phases, voltage unbalance, phase sequence, power metrics (P, Q, S, cos phi), energy (kWh; kVAh; kVARh), demand current/power with an adjustable time window, and total harmonic distortion (THDu, THDv, THDi). It falls under utilisation category A.

Schneider Electric

LV433744

Schneider Electric LV433744 is a Moulded Case Circuit Breaker (MCCB) within the NSX630HB2 sub-range. This MCCB features a lug connection type and is designed with 3 poles. It has a rated current of 630A, with both the trip current rating and frame current rating also at 630A. The rated insulation voltage (Ui) is 800V, and the rated impulse voltage (Uimp) stands at 8kV. For phase-to-phase applications, the rated voltage (AC) is 690V. All three poles are protected, and it employs a Micrologic 5.3E (LSI) interchangeable electronic trip unit. This part is categorized under utilisation category A.

Schneider Electric

PDG32FH400D3WK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Override, 25kA/480V, PXR20D LSIG w/ Modbus RTU, ZSI and Relays, Standard Terminals Line Only (PDG3X2TA631)

Eaton

PDG32G0250E4XL

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 35kA/480V, PXR20 ARMS LSI w/ CAM Link, ZSI and Relays, Standard Terminals Load Only (PDG3X2TA350)

Eaton

PDG32FH400E2XJ

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A High Override, 25kA/480V, PXR20 LSI w/ CAM Link, ZSI and Relays, Standard Line and Load (PDG3X2TA631)

Eaton

PDG14C0040TFFK

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (100% N), 40A, 18kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Line Only (PDG1X4T125)

Eaton

LV429182

Schneider Electric LV429182 is a trip unit designed for use in electrical protection and management systems. It belongs to the Micrologic 6.2E-M (LSIG) sub-range and is characterized by its 3 Pole configuration. This unit is equipped with multiple protection functions including Long-time protection (L), Short-time protection with fixed time delay (S0), Instantaneous protection (I), and Ground fault protection (G), alongside specialized features for phase unbalance or phase loss, locked rotor, under-load (under-current), and long start scenarios. The rated current for this device is 50A, with protection settings allowing for Long-time protection to be adjustable from 0.5 to 1 x In, Short-time protection adjustable from 5 to 13 x Ir, Instantaneous protection fixed at 750A, and Ground fault protection adjustable from 0.4 to 1 x In with a time delay ranging from 0.1 to 0.4 seconds. The trip unit also provides comprehensive measurement functions including current and voltage across phases, voltage unbalance, phase sequence, power metrics (P, Q, S, cos phi), energy consumption (kWh, kVAh, kVARh), demand current/power with an adjustable time window, and total harmonic distortion for current and voltage (THDu, THDv, THDi).

Schneider Electric

PDG32FH250D5WN

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A High Override, 25kA/480V, PXR20D ARMS LSIG w/ Modbus RTU, ZSI and Relays, No Terminals

Eaton

T6N600TWA3AUS8

T6N 800 UL/CSA TMA 600-6000 3p F F

ABB Control
