643.500.54 Werma Signal Towers
Part#:643.500.54
Manufacturer:Werma
Product Lifecycle:Active
Get a quick Quote!

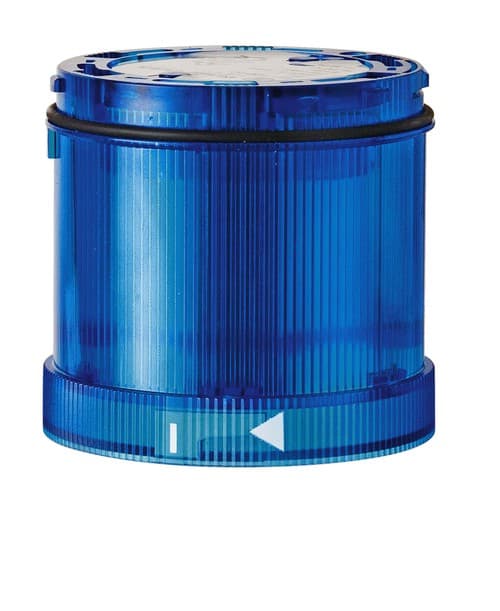

Flashing light element 12VDC BU
About the manufacturer: Werma is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. WERMA's products and solutions ensure process safety and efficiency. This allows you to continuously optimize operations, saving both time and money. For years, customers across various industries worldwide have benefited from our expertise. Simply put, we provide smart solutions that deliver results.
Check out the 643.500.54 Werma price in the box on the right side or send a quick quote.
Product Details

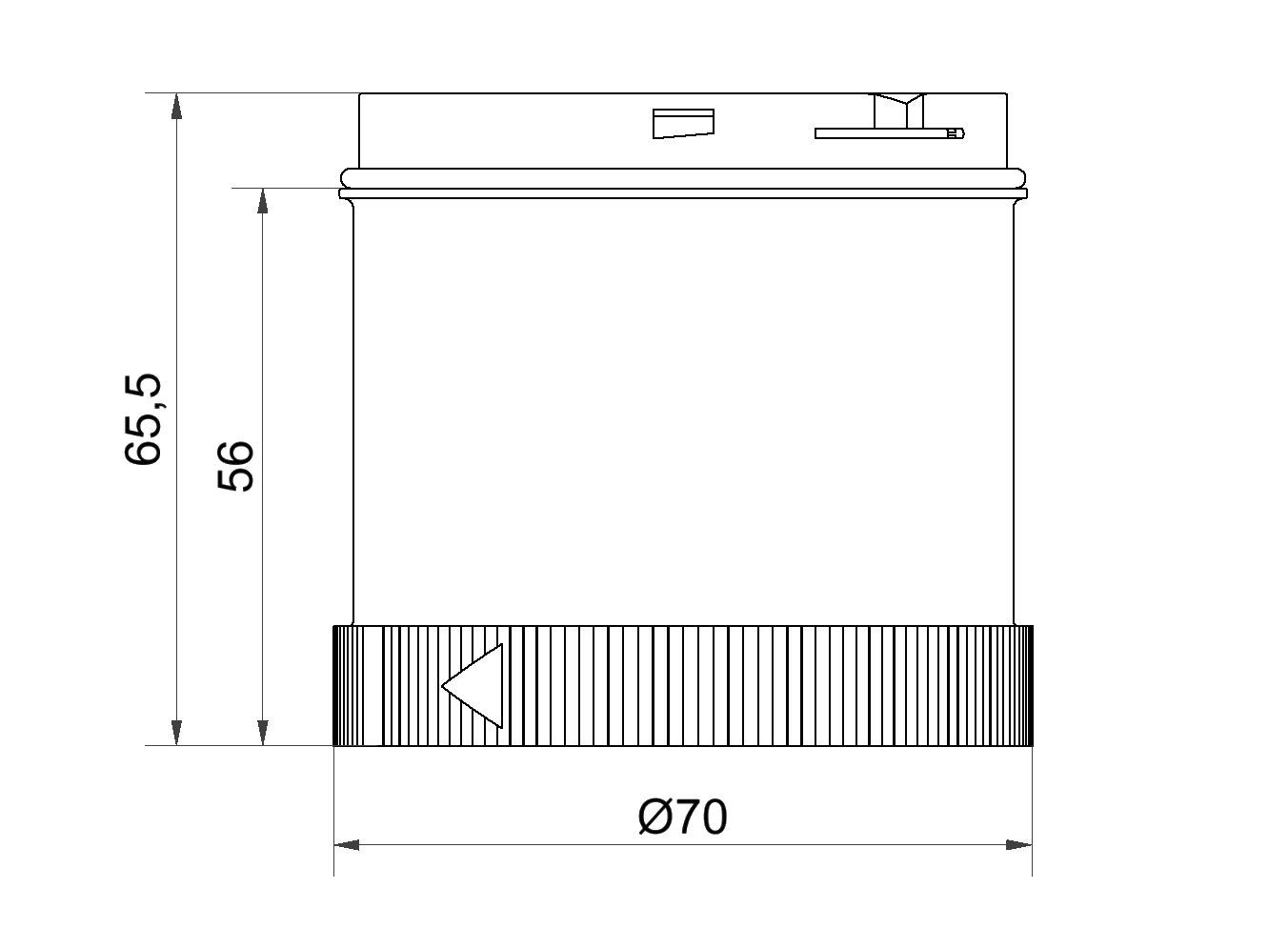

- Diameter 70 mm
- Weight with packaging 88 g
- Protection class Protection class 2
- Dome colour Blue
- Operating voltage type DC
- Pollution degree 3
- Service life optical 4 million flashes minimum
- WEEE Yes
- Conforms with GL No
- Materials PC
- Operating voltage 12V
- Optical signal image Flash
- Conforms with RED directive No
- UL Type Rating Type 12
- ICAO Certification No
- Height 66 mm
- Rated operational current 195 mA
- Flash frequency 1 Hz
- Conforms with UL cULus
- Conforms with AS-I No
- Protection category IP65
- Operating voltage tolerance +/- 10%
- Light source Xenon
- Conforms with CCC No
- EAC certificate available Yes
- Working temperature maximum +50°C
- Product weight 76 g
- Light colour Blue
- Flash output 2 J
- Conform with ATEX-directive No
- Conforms with IC No
- Conforms with RoHS CN No
- Working temperature minimum -20°C
- Rated operational voltage 12 VDC
- Rated inrush current 500 mA
- Conforms with CE Yes
- Conforms with FCC No
- Conforms with VdS No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 643.500.54 Specs
