643.100.54 Werma Signal Towers
Part#:643.100.54
Manufacturer:Werma
Product Lifecycle:Active
Get a quick Quote!

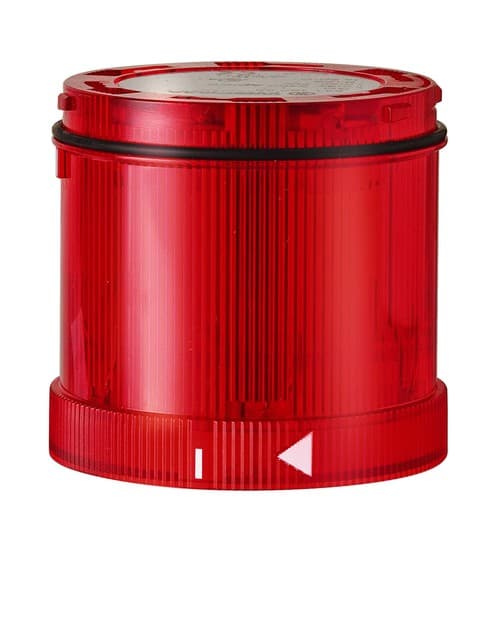

Flashing light element 12VDC RD
About the manufacturer: Werma is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. WERMA's products and solutions ensure process safety and efficiency. This allows you to continuously optimize operations, saving both time and money. For years, customers across various industries worldwide have benefited from our expertise. Simply put, we provide smart solutions that deliver results.
Check out the 643.100.54 Werma price in the box on the right side or send a quick quote.
Product Details
- Materials PC
- Operating voltage type DC
- Rated inrush current 500 mA
- Service life optical 4 million flashes minimum
- Conforms with IC No
- Conforms with AS-I No
- Dome colour Red
- Operating voltage 12V
- Pollution degree 3
- Conforms with CE Yes
- Conforms with FCC No
- Weight with packaging 88 g
- Protection class Protection class 2
- Conforms with CCC No
- Conforms with VdS No
- Height 66 mm
- Working temperature minimum -20°C
- Rated operational current 195 mA
- Conform with ATEX-directive No
- ICAO Certification No
- Diameter 70 mm
- Product weight 76 g
- Light source Xenon
- Conforms with RED directive No
- Conforms with RoHS CN No
- Working temperature maximum +50°C
- Operating voltage tolerance +/- 10%
- Optical signal image Flash
- Flash output 2 J
- UL Type Rating Type 12
- Conforms with GL No
- Light colour Red
- Conforms with UL cULus
- Protection category IP65
- Rated operational voltage 12 VDC
- Flash frequency 1 Hz
- WEEE Yes
- EAC certificate available Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 643.100.54 Specs
