CFW900A09P6T4DB20Y2B WEG AC Motors
Part#:CFW900A09P6T4DB20Y2B
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

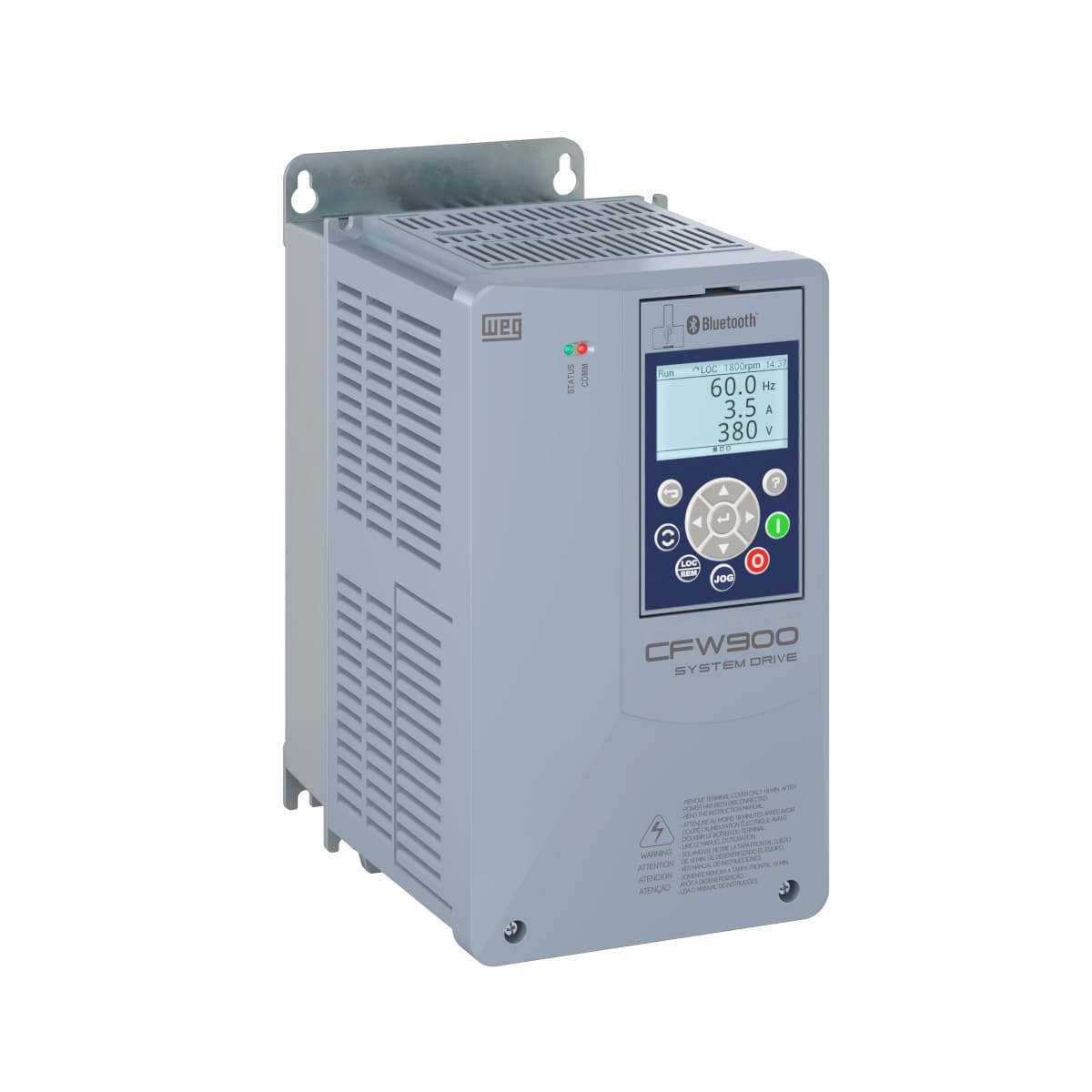

DRIVE CFW900A09P6T4DB20Y2B
Check out the CFW900A09P6T4DB20Y2B WEG price in the box on the right side or send a quick quote.
Product Details
- Temperature -10 °C a 50 °C
- Input phases Three-phase
- Safety Stop Functional safety
- SoftPLC Yes, incorporated
- Rated current (HD) 8
- Memory card MicroSD (card not included)
- Display Graphic LCD
- Rated efficiency ≥ 97%
- Enclosure IP20
- Link Inductor Yes
- Configuration With options
- Conformal Coating 3C2 (IEC 60721-3-3:2002)
- Power supply 380 up to 480 V
- I/O standard 6 x DI; 2 relés NA; 1 relé NA/NF x DO; 2 x AI; 2 x AO.
- Dynamic braking Yes
- Control method - induction motor Scalar, VVW, Vector with and without encoder
- Rated current (ND) 9.6
- USB port Yes, available in HMI
- RFI filter With filter (C3 category)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents CFW900A09P6T4DB20Y2B Specs
