CFW900A07P5B2DB20Y2B WEG AC Motors
Part#:CFW900A07P5B2DB20Y2B
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

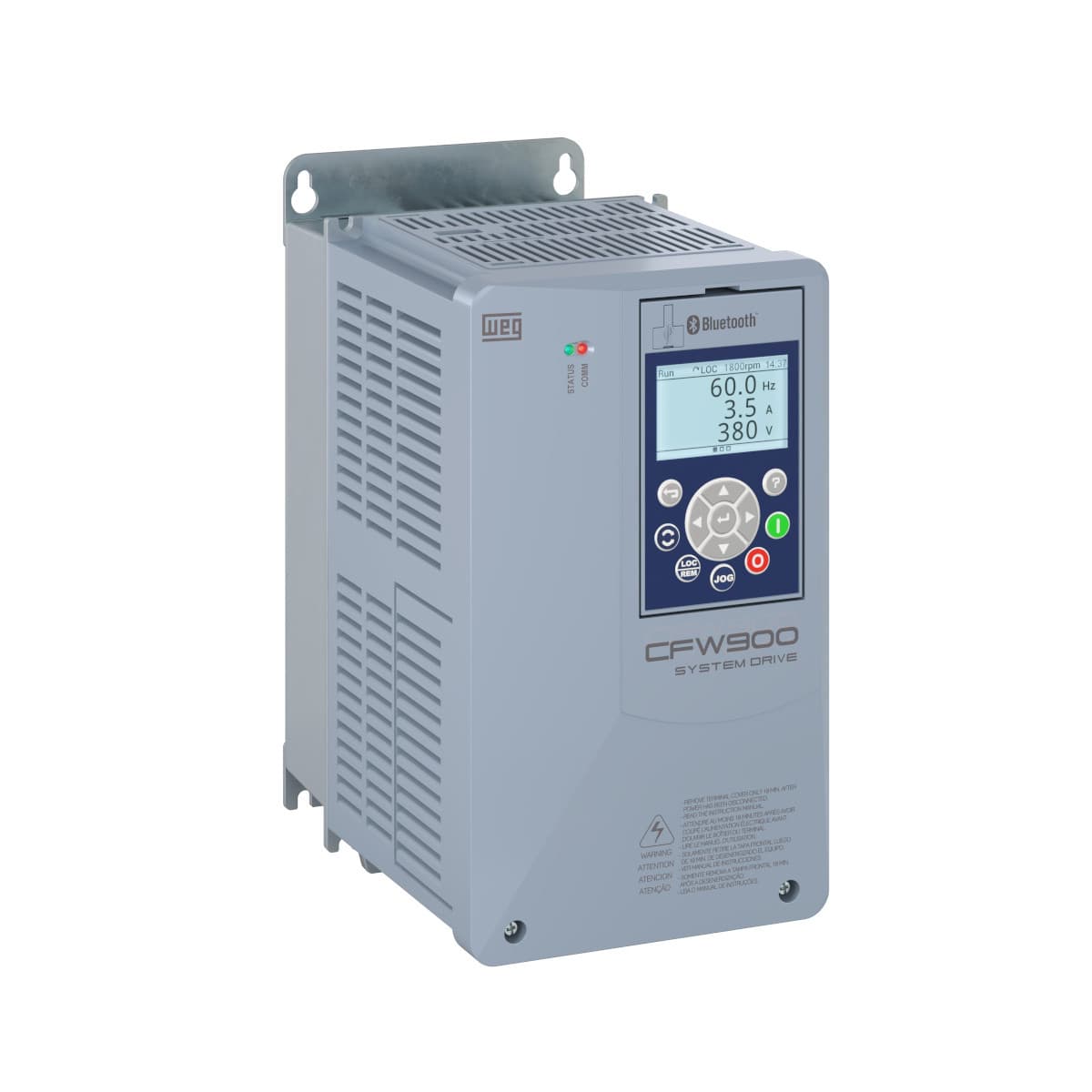

DRIVE CFW900A07P5B2DB20Y2B
Check out the CFW900A07P5B2DB20Y2B WEG price in the box on the right side or send a quick quote.
Product Details
- I/O standard 6 x DI; 2 relés NA; 1 relé NA/NF x DO; 2 x AI; 2 x AO.
- USB port Yes, available in HMI
- Memory card MicroSD (card not included)
- Conformal Coating 3C2 (IEC 60721-3-3:2002)
- Rated current (HD) 7.5
- Control method - induction motor Scalar, VVW, Vector with and without encoder
- Configuration With options
- Link Inductor Yes
- Power supply 200 up to 240 V
- Safety Stop Functional safety
- Temperature -10 °C a 50 °C
- Input phases Single-phase/Three-phase
- Enclosure IP20
- Rated efficiency ≥ 96%
- RFI filter With filter (C3 category)
- Dynamic braking Yes
- SoftPLC Yes, incorporated
- Display Graphic LCD
- Rated current (ND) 7.5
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents CFW900A07P5B2DB20Y2B Specs
