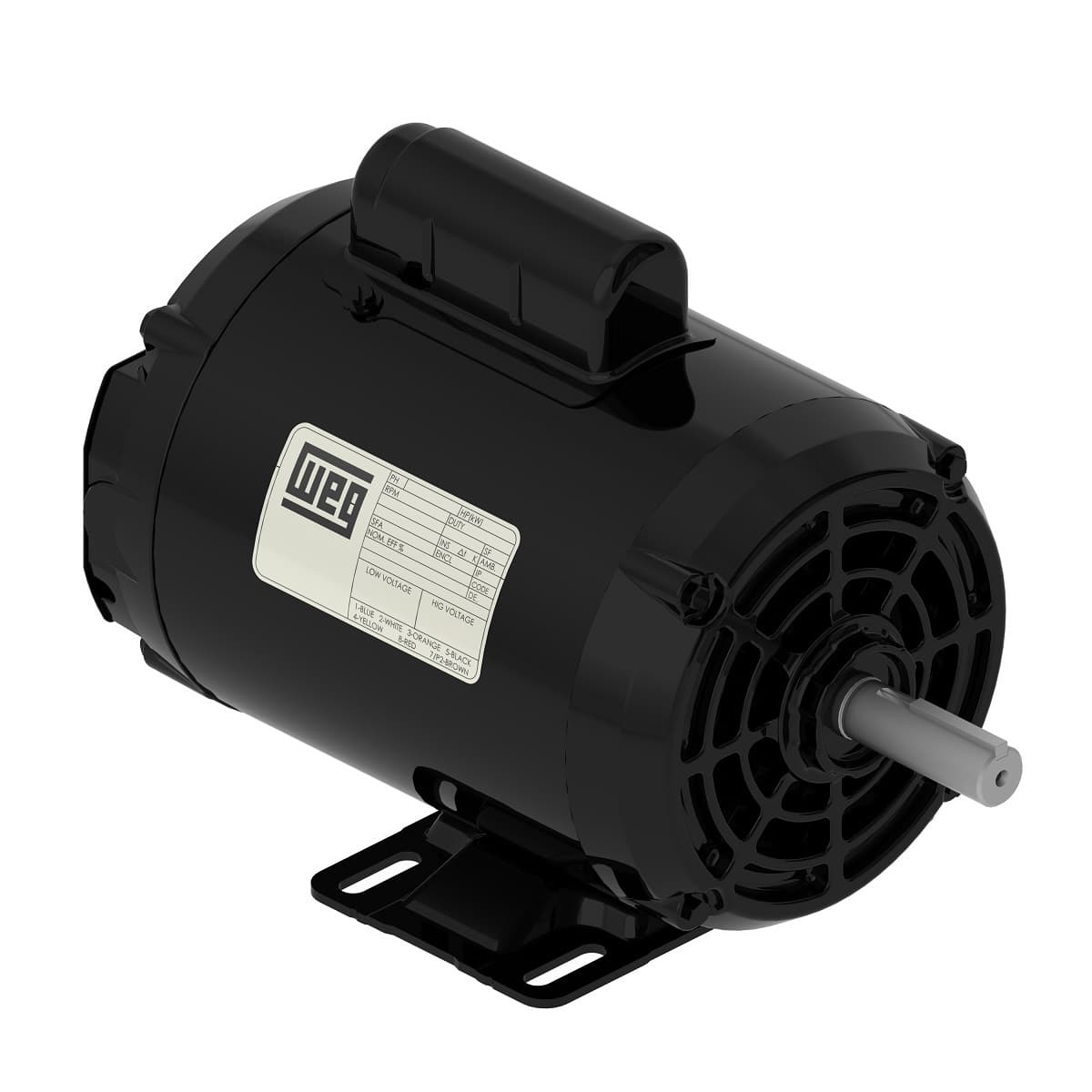

CDS022OM001 WEG AC Motors
Part#:CDS022OM001
Manufacturer:WEG
Alt. Part#:7894171958689
Product Lifecycle:Active
Get a quick Quote!
Compressor Duty 1.75 HP 2P D56 1Ph 115/230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the CDS022OM001 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.75 HP
- Rated Speed3490 rpm
- Number of Poles2 Pole
- Voltage115/230 V
- Flange TypeWithout
- Rated current 14.6/7.30 A
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- LRC 7.2x(Code H)
- Duty Cycle Cont.(S1)
- Voltage 115/230 V
- Number of Poles 2
- Rated torque 2.63 ft.lb
- Approx. weight³ 37.5 lb
- Rated voltage 115/230 V
- Moment of inertia (J) 0.0403 sq.ft.lb
- Starting Method Direct On Line
- L. R. Amperes 105/52.6 A
- No load current 4.80/2.40 A
- Degree of Protection IP21
- Synchronous speed 3600 rpm
- Output 1.75 HP (1.3 kW)
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Flange Without
- Frequency 60 Hz
- Breakdown torque 240 %
- Enclosure IC01 - ODP
- Output rating 1.75 HP
- Frame D56
- Service factor 1.00
- Standard NEMA MG-1
- Slip 3.06 %
- Locked rotor time 14s (cold) 8s (hot)
- Rotation¹ CCW
- Rated speed 3490 rpm
- Insulation Class F
- Mounting F-1
- Terminal box¹ Without Terminal Box
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents CDS022OM001 Specs
