50018XT3G586/7 WEG AC Motors
Part#:50018XT3G586/7
Manufacturer:WEG
Alt. Part#:7892304606827
Product Lifecycle:Active
Get a quick Quote!

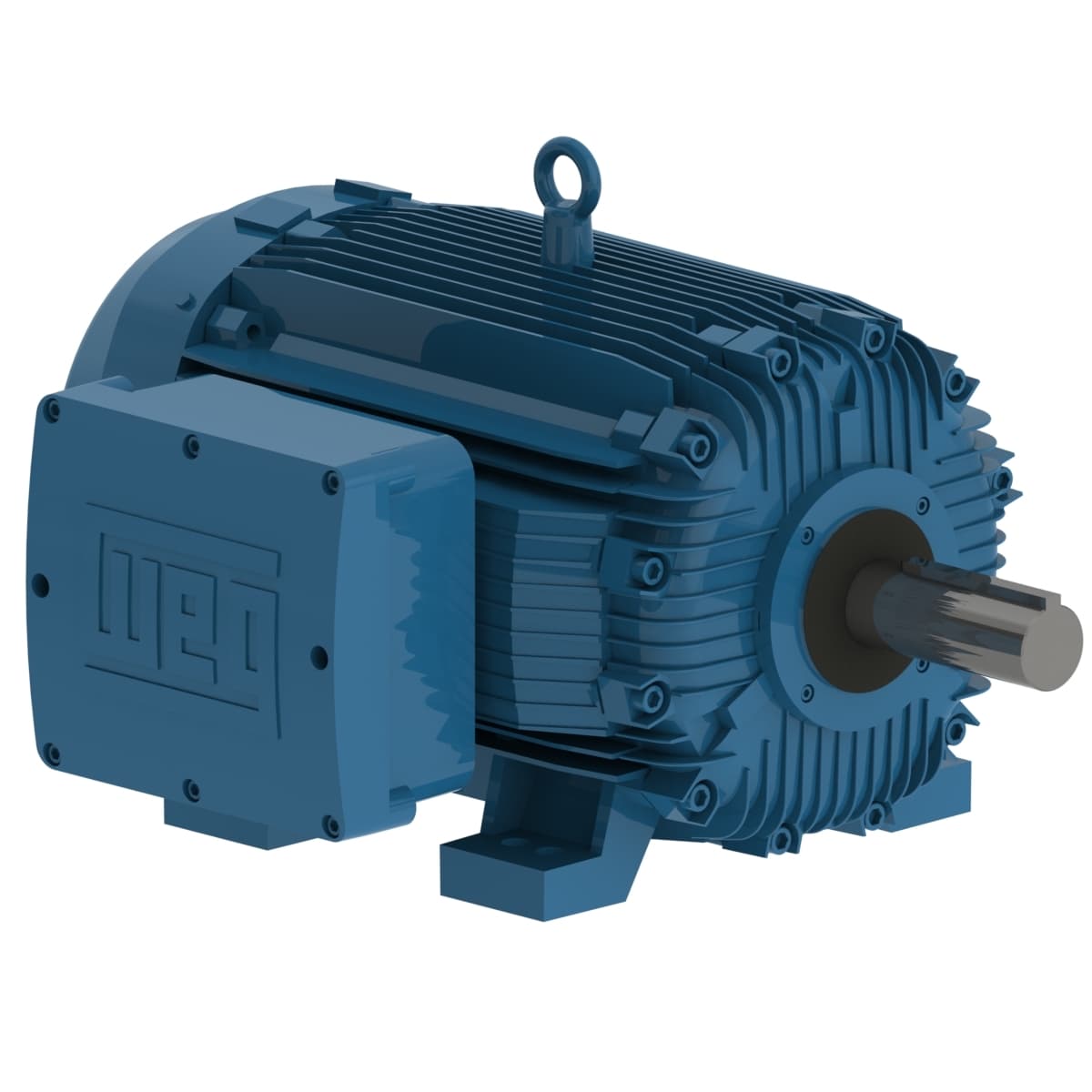

W21 Explosion-proof Motor NEMA Premium Efficiency 500 HP 4P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 50018XT3G586/7 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating500 HP
- Rated Speed1790 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.56 %
- No load current 140 A
- Service factor 1.00
- Starting Method Direct On Line
- Terminal box¹ Left position
- Frequency 60 Hz
- Locked rotor time 45s (cold) 25s (hot)
- Voltage 460 V
- L. R. Amperes 3578 A
- Rated torque 1470 ft.lb
- Mounting F-1
- LRC 6.3x(Code G)
- Duty Cycle Cont.(S1)
- Approx. weight³ 4805 lb
- Output 500 HP (370 kW)
- Breakdown torque 229 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Locked rotor torque 210 %
- Ambient temperature -20°C to +40°C
- Output rating 500 HP
- Rated speed 1790 rpm
- Frame 586/7T
- Temperature rise 105 K
- Noise level² 83.0 dB(A)
- Rated voltage 460 V
- Moment of inertia (J) 256 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Number of Poles 4
- Design B
- Enclosure IC411 - TEFC
- Number of poles 4
- Rated current 568 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 50018XT3G586/7 Specs
