50018ET3X5009-W50MV WEG AC Motors
Part#:50018ET3X5009-W50MV
Manufacturer:WEG
Alt. Part#:7909265847050
Product Lifecycle:Active
Get a quick Quote!

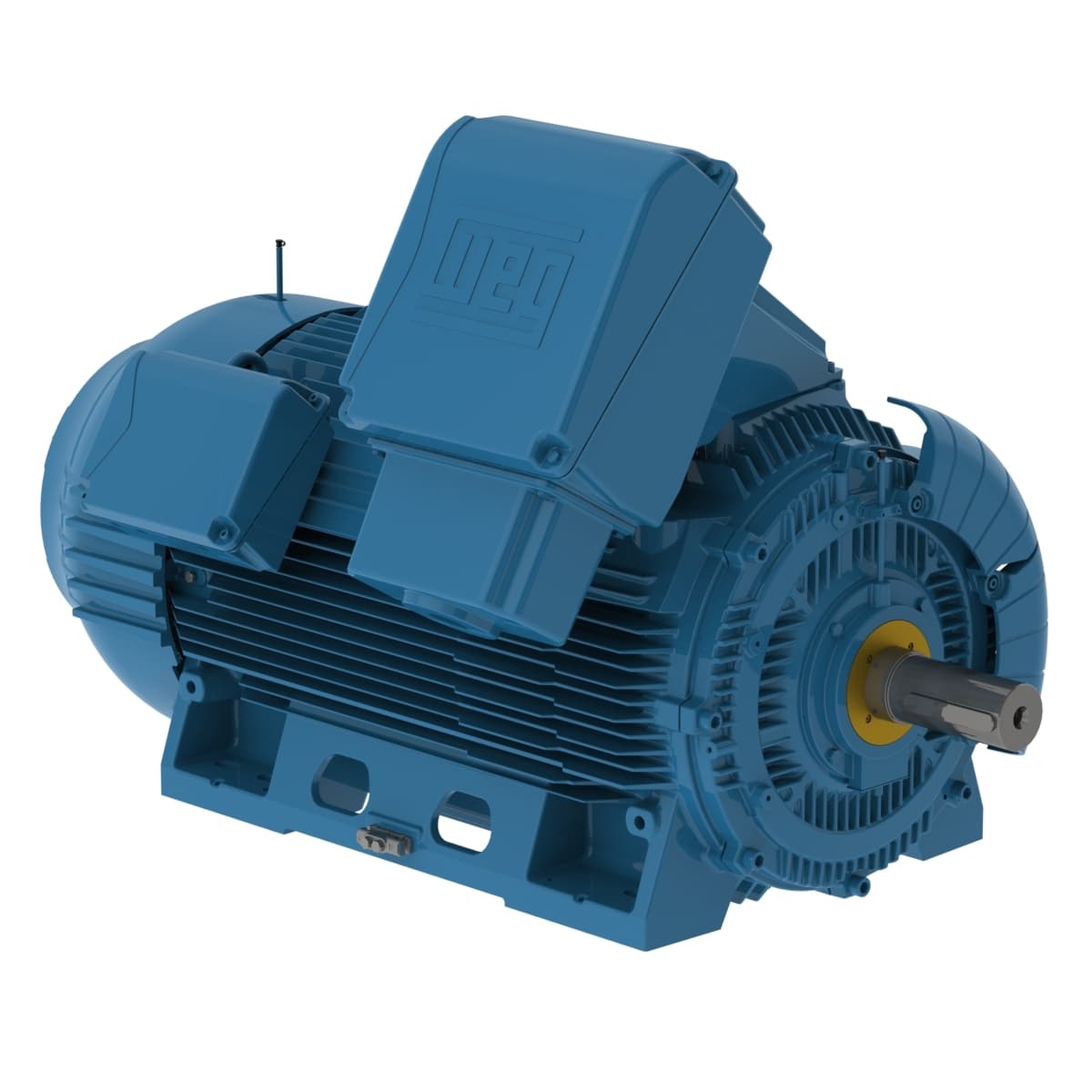

W50 500 HP 4P 5009/10 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 50018ET3X5009-W50MV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating500 HP
- Rated Speed1787 rpm
- Number of Poles4 Pole
- Voltage2300 V
- Flange TypeWithout
- Slip 0.72 %
- No load current 42.1 A
- Moment of inertia (J) 166 sq.ft.lb
- Approx. weight³ 4522 lb
- L. R. Amperes 731 A
- Insulation Class F
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated voltage 2300 V
- Locked rotor torque 80 %
- Starting Method Direct On Line
- Output rating 500 HP
- Output 500 HP (370 kW)
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 4
- LRC 6.3x(Code G)
- Service factor 1.00
- Mounting F-1
- Flange Without
- Frame 5009/10
- Duty Cycle Cont.(S1)
- Noise level² 79.0 dB(A)
- Rated current 116 A
- Design A
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Breakdown torque 240 %
- Standard NEMA MG-1
- Rated speed 1787 rpm
- Rated torque 1470 ft.lb
- Enclosure IC411 - TEFC
- Voltage 2300/4160 V
- Number of Poles 4
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 50018ET3X5009-W50MV Specs
