40036OP3GFP447/9TSW4 WEG AC Motors
Part#:40036OP3GFP447/9TSW4
Manufacturer:WEG
Alt. Part#:7909322525426
Product Lifecycle:Active
Get a quick Quote!

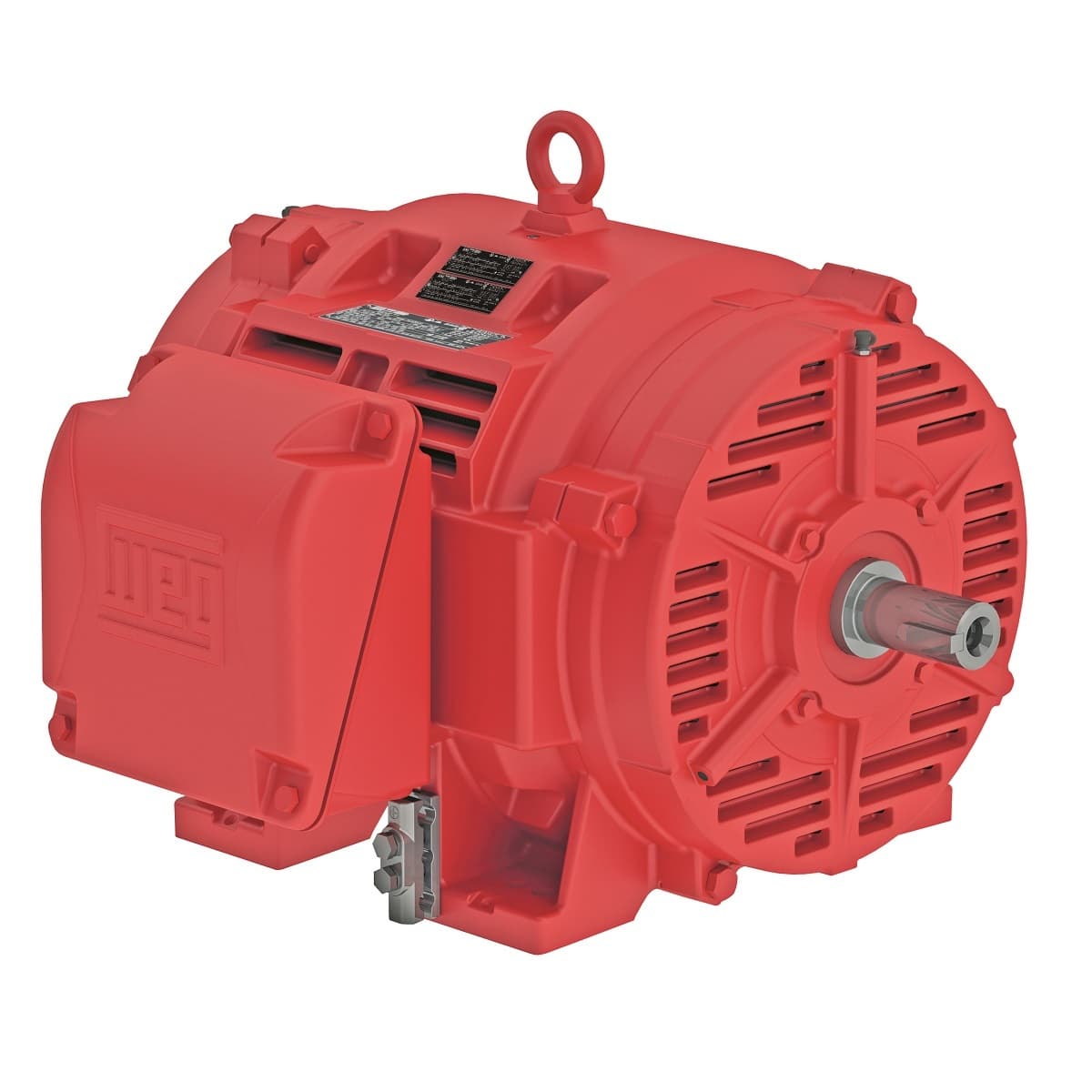

W40 High Efficiency 400 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 40036OP3GFP447/9TSW4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- LRC 6.0x(Code F)
- Enclosure IC01 - ODP
- Frame 447/9TS
- Moment of inertia (J) 39.1 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Rated current 443 A
- Design B
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Locked rotor time 25s (cold) 14s (hot)
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Rated speed 3565 rpm
- No load current 100 A
- Approx. weight³ 2025 lb
- Flange Without
- Slip 0.97 %
- Locked rotor torque 150 %
- Insulation Class F
- Noise level² 85.0 dB(A)
- Output 400 HP (300 kW)
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- L. R. Amperes 2658 A
- Rated torque 589 ft.lb
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Number of Poles 2
- Breakdown torque 229 %
- Degree of Protection IP23
- Output rating 400 HP
- Rated voltage 460 V
- Service factor 1.15
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40036OP3GFP447/9TSW4 Specs
