40036ET3X5009-W50MV WEG AC Motors
Part#:40036ET3X5009-W50MV
Manufacturer:WEG
Alt. Part#:7909265835514
Product Lifecycle:Active
Get a quick Quote!

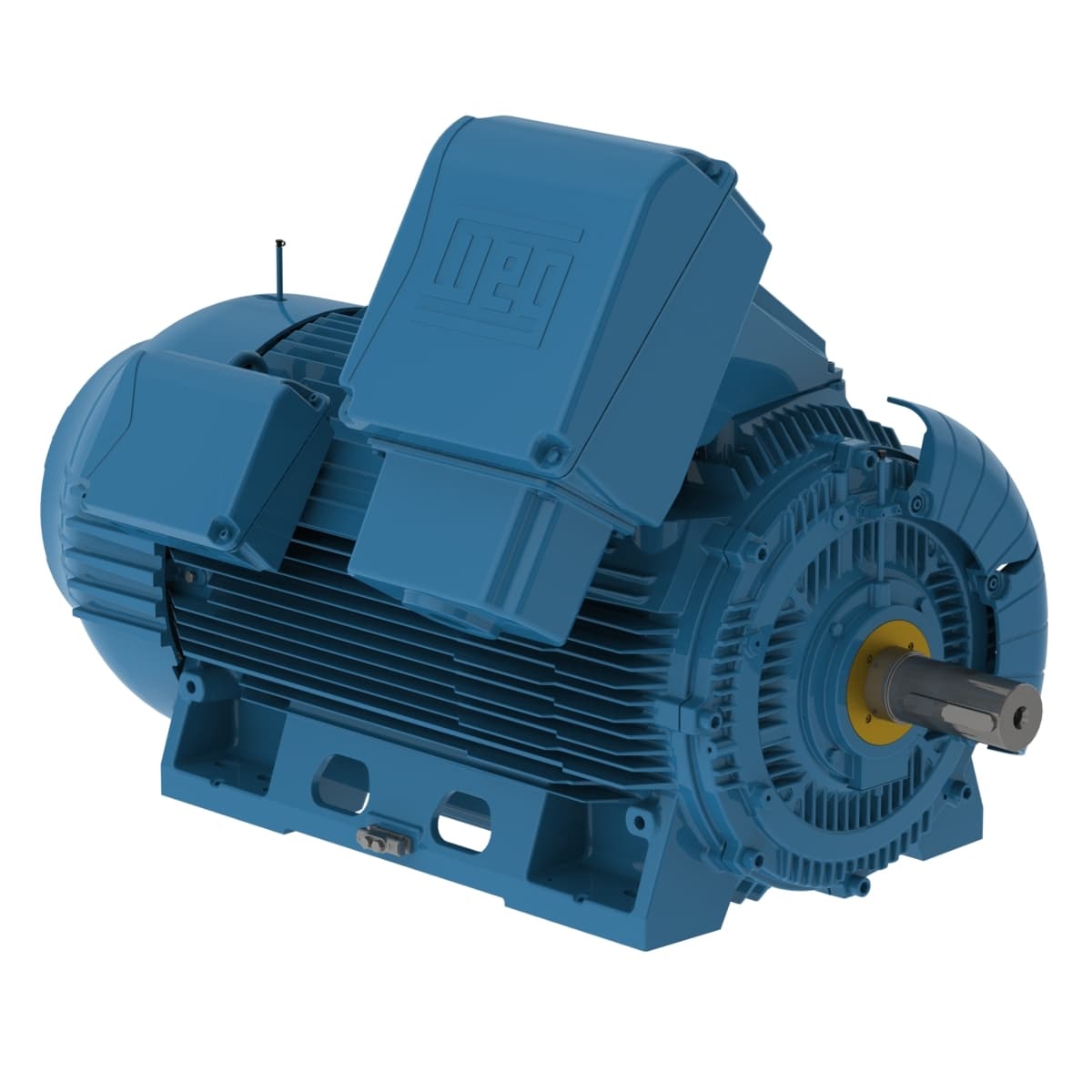

W50 400 HP 2P 5009/10 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 40036ET3X5009-W50MV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed3571 rpm
- Number of Poles2 Pole
- Voltage2300 V
- Flange TypeWithout
- Rated current 89.1 A
- Service factor 1.00
- Number of poles 2
- Frame 5009/10
- Rated torque 588 ft.lb
- Starting Method Direct On Line
- Flange Without
- Rated speed 3571 rpm
- Locked rotor time 25s (cold) 14s (hot)
- Voltage 2300/4160 V
- Rated voltage 2300 V
- Moment of inertia (J) 93.7 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Slip 0.81 %
- LRC 6.5x(Code G)
- Design A
- Standard NEMA MG-1
- Number of Poles 2
- No load current 21.0 A
- Altitude 1000 m.a.s.l.
- Breakdown torque 210 %
- Output 400 HP (300 kW)
- Insulation Class F
- Duty Cycle Cont.(S1)
- Approx. weight³ 4238 lb
- Locked rotor torque 100 %
- Degree of Protection IP55
- Mounting F-1
- L. R. Amperes 579 A
- Temperature rise 80 K
- Rotation¹ CW
- Output rating 400 HP
- Frequency 60 Hz
- Enclosure IC411 - TEFC
- Noise level² 79.0 dB(A)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40036ET3X5009-W50MV Specs
1-year warranty
