20036OP3JFP444TS-W40 WEG AC Motors
Part#:20036OP3JFP444TS-W40
Manufacturer:WEG
Alt. Part#:7909323929810
Product Lifecycle:Active
Get a quick Quote!

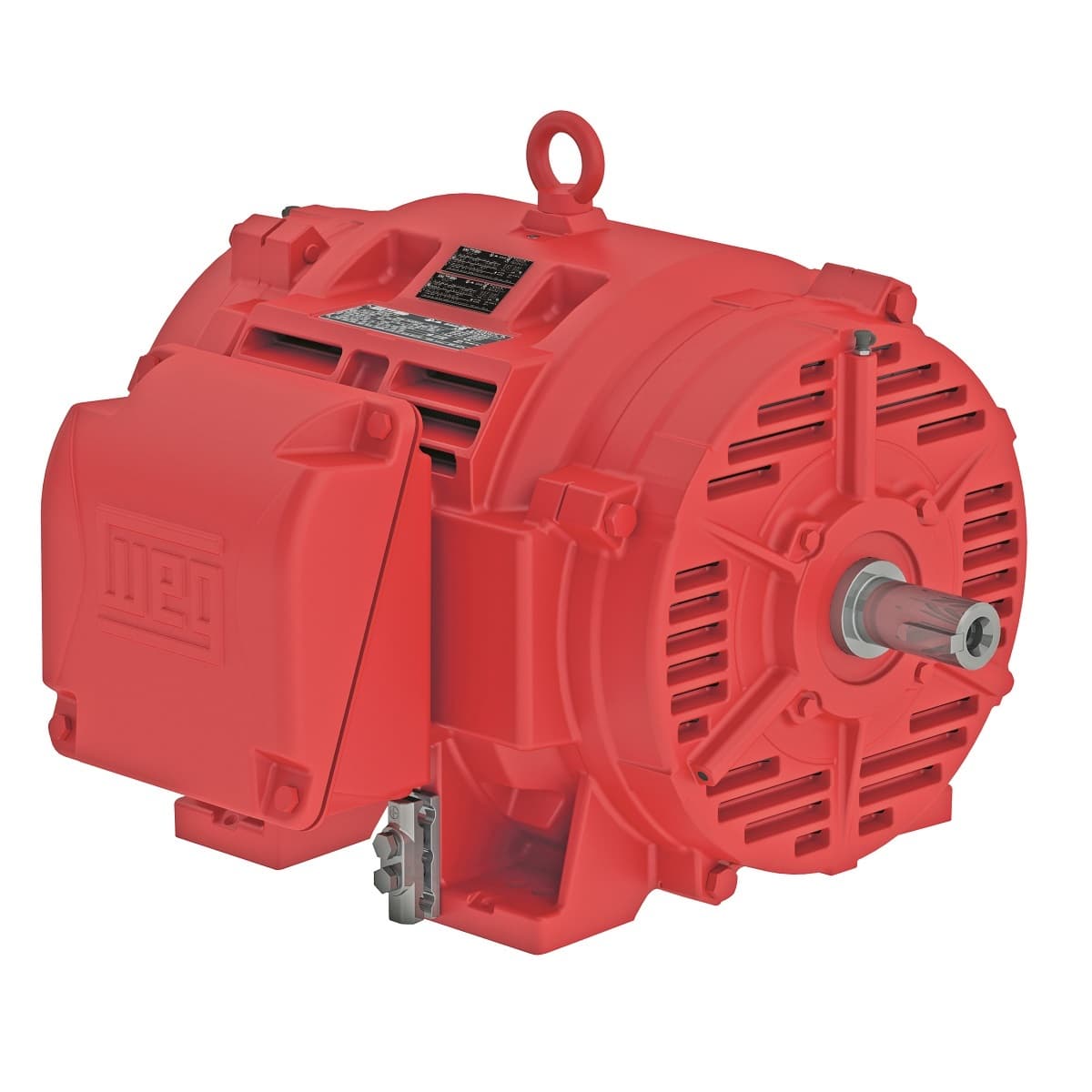

W40 High Efficiency 200 HP 2P 444/5TS 3Ph 380 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 20036OP3JFP444TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated speed 3560 rpm
- Rated torque 295 ft.lb
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Insulation Class F
- Frame 444/5TS
- Breakdown torque 210 %
- Synchronous speed 3600 rpm
- Rated voltage 380 V
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Output rating 200 HP
- Output 200 HP (150 kW)
- No load current 70.5 A
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 1267 lb
- Slip 1.11 %
- Number of poles 2
- Service factor 1.15
- Rated current 274 A
- Temperature rise 80 K
- Design B
- Terminal box¹ Left position
- Number of Poles 2
- Locked rotor time 48s (cold) 27s (hot)
- Mounting F-1
- Flange Without
- Locked rotor torque 140 %
- Voltage 380 V
- L. R. Amperes 1724 A
- Moment of inertia (J) 21.8 sq.ft.lb
- LRC 6.3x(Code G)
- Standard NEMA MG-1
