20036ET3XL449-W22MV WEG AC Motors
Part#:20036ET3XL449-W22MV
Manufacturer:WEG
Alt. Part#:7909265835736
Product Lifecycle:Active
Get a quick Quote!

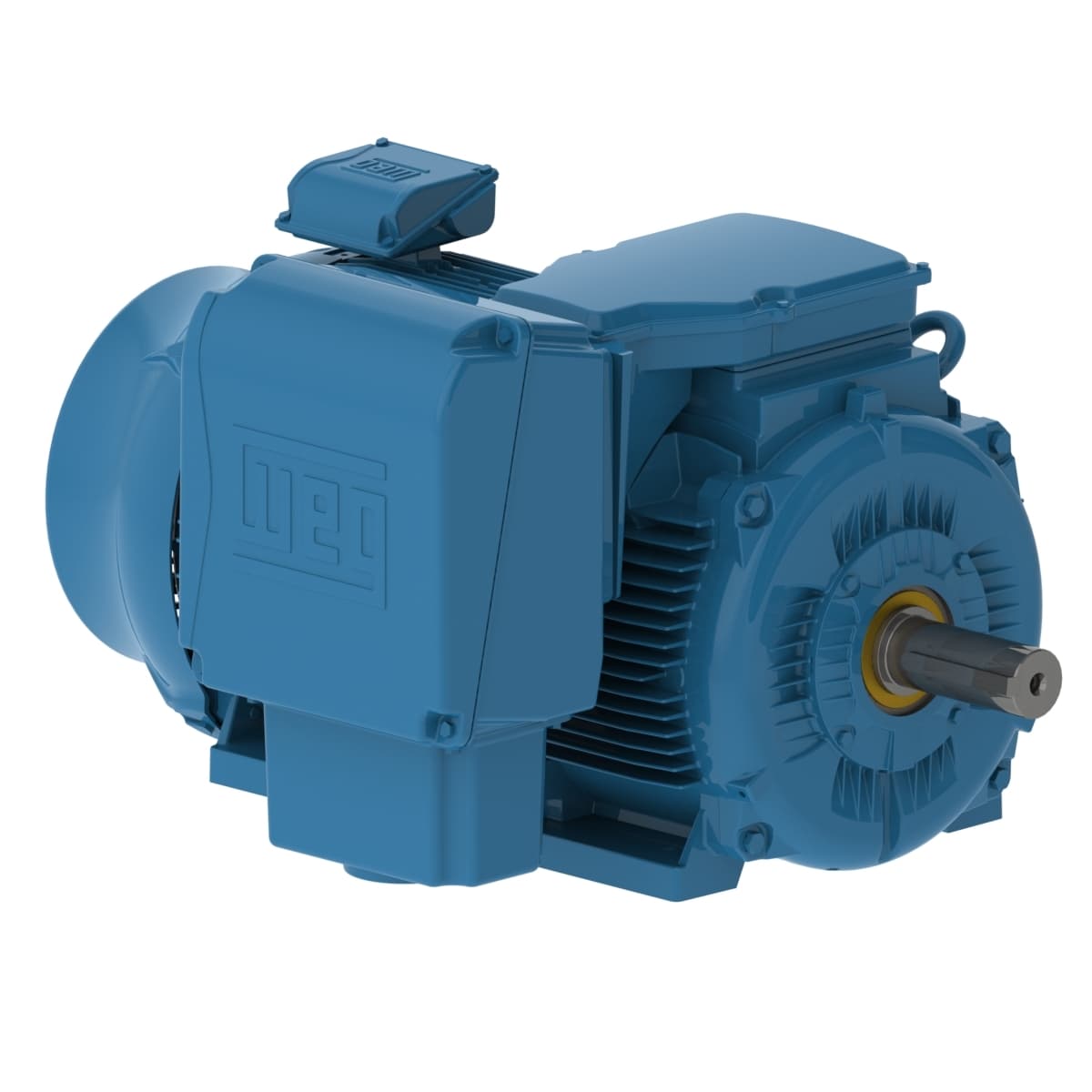

W22Xec Medium Voltage 200 HP 2P L447/9TS 3Ph 2300/4160 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 20036ET3XL449-W22MV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating200 HP
- Rated Speed3580 rpm
- Number of Poles2 Pole
- Voltage2300 V
- Flange TypeWithout
- Rated voltage 2300 V
- Rated torque 293 ft.lb
- Standard NEMA MG-1
- Rated speed 3580 rpm
- Locked rotor time 32s (cold) 18s (hot)
- Ambient temperature -20°C to +40°C
- Rated current 47.1 A
- Design A
- Enclosure IC411 - TEFC
- Output rating 200 HP
- L. R. Amperes 410 A
- No load current 19.0 A
- Altitude 1000 m.a.s.l.
- Voltage 2300/4160 V
- Frame L447/9TS
- Moment of inertia (J) 37.7 sq.ft.lb
- Locked rotor torque 180 %
- Number of poles 2
- Output 200 HP (150 kW)
- LRC 8.7x(Code K)
- Degree of Protection IP55
- Approx. weight³ 2783 lb
- Frequency 60 Hz
- Rotation¹ Both (CW and CCW)
- Flange Without
- Slip 0.56 %
- Insulation Class F
- Temperature rise 80 K
- Starting Method Direct On Line
- Noise level² 88.0 dB(A)
- Number of Poles 2
- Service factor 1.00
- Mounting F-1
- Terminal box¹ Left position
- Breakdown torque 280 %
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 20036ET3XL449-W22MV Specs
