15036ST3HIE445TS-W22 WEG AC Motors
Part#:15036ST3HIE445TS-W22
Manufacturer:WEG
Alt. Part#:7891327142299
Product Lifecycle:Active
Get a quick Quote!

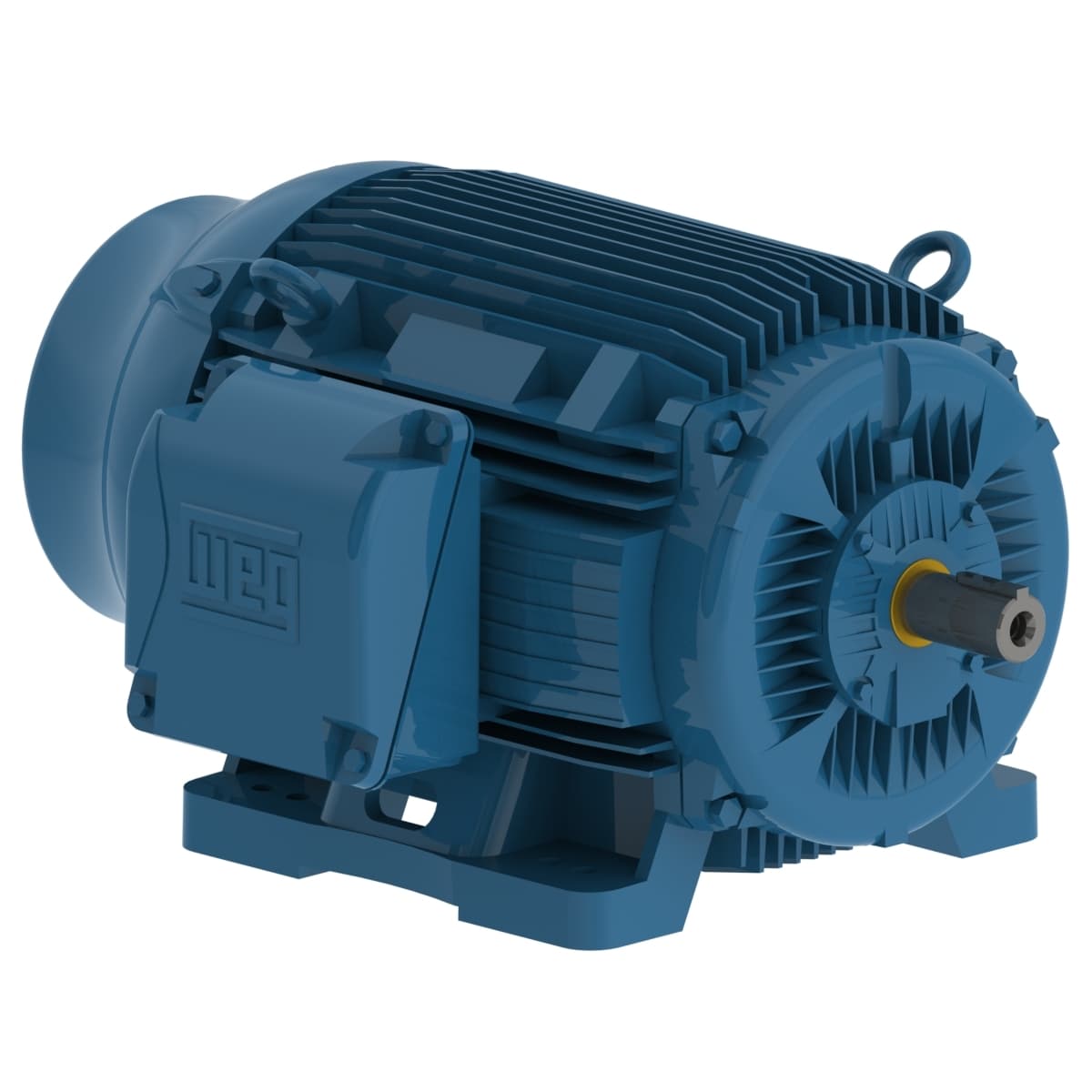

W22 IEEE 841 NEMA Premium Efficiency 150 HP 2P 444/5TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15036ST3HIE445TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Locked rotor torque 180 %
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Slip 0.83 %
- Design B
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Rated speed 3570 rpm
- Breakdown torque 240 %
- Moment of inertia (J) 39.1 sq.ft.lb
- Mounting F-1
- Rated torque 221 ft.lb
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output 150 HP (110 kW)
- Locked rotor time 39s (cold) 22s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Number of Poles 2
- LRC 6.5x(Code G)
- Service factor 1.15
- Approx. weight³ 1730 lb
- Rated current 130 A
- No load current 32.8 A
- Starting Method Direct On Line
- Output rating 150 HP
- L. R. Amperes 848 A
- Temperature rise 80 K
- Noise level² 81.0 dB(A)
- Frame 444/5TS
- Frequency 60 Hz
- Degree of Protection IP56
- Terminal box¹ Left position
- Rated voltage 575 V
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
