15036ET3Q445TS-W22 WEG AC Motors
Part#:15036ET3Q445TS-W22
Manufacturer:WEG
Alt. Part#:7909492019718
Product Lifecycle:Active
Get a quick Quote!

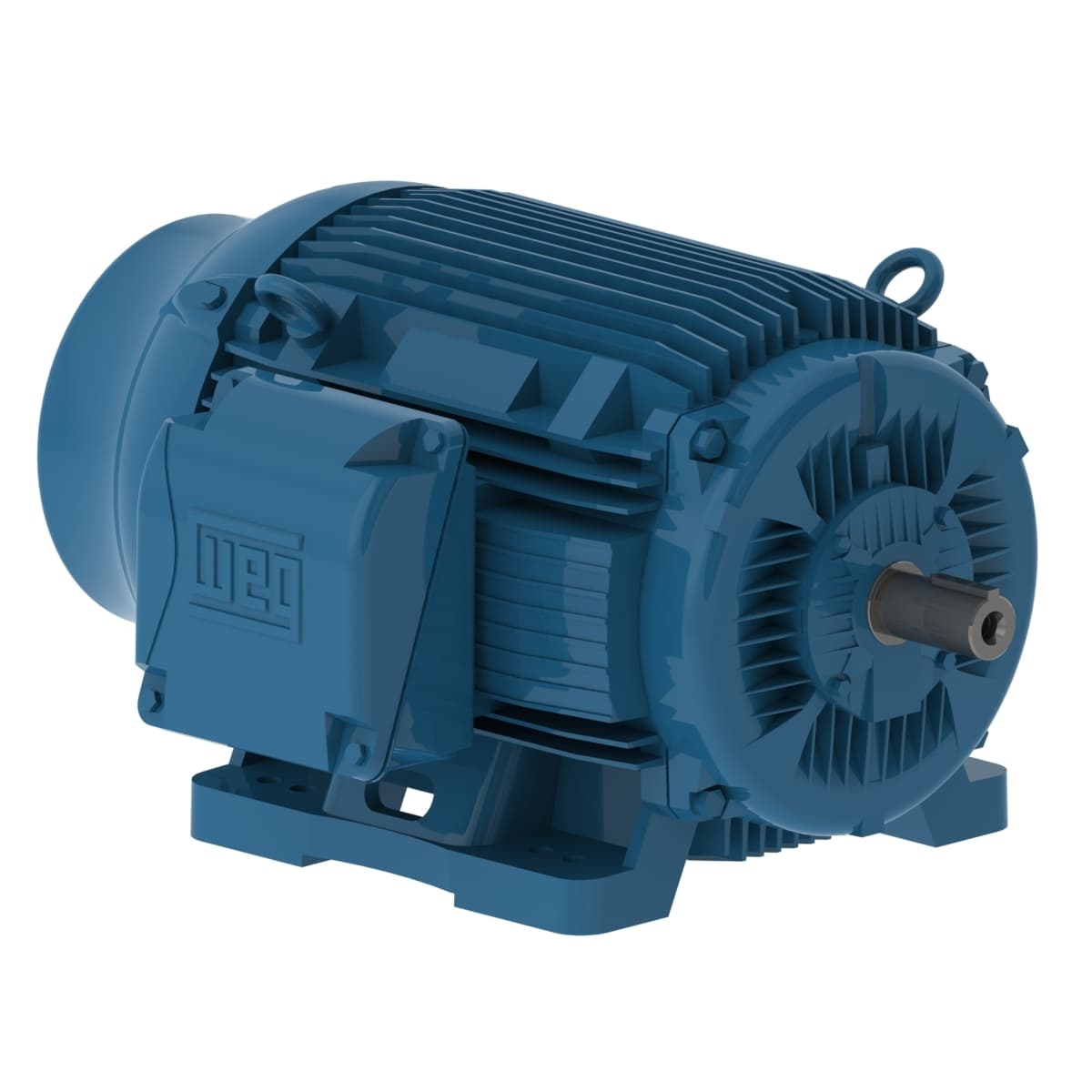

W22 NEMA Premium Efficiency 150 HP 2P 444/5TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15036ET3Q445TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Output 150 HP (110 kW)
- Rated speed 3570 rpm
- Rated current 163 A
- L. R. Amperes 1060 A
- Slip 0.83 %
- Rated voltage 460 V
- Frame 444/5TS
- Number of Poles 2
- Approx. weight³ 1709 lb
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Voltage 460 V
- Output rating 150 HP
- Number of poles 2
- Flange Without
- Terminal box¹ Left position
- Standard NEMA MG-1
- Breakdown torque 240 %
- Starting Method Direct On Line
- LRC 6.5x(Code G)
- Moment of inertia (J) 39.1 sq.ft.lb
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- No load current 41.0 A
- Rated torque 221 ft.lb
- Enclosure IC411 - TEFC
- Locked rotor torque 180 %
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Mounting F-1
- Design B
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Locked rotor time 39s (cold) 22s (hot)
- Noise level² 81.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15036ET3Q445TS-W22 Specs
1-year warranty
