12845477 WEG AC Motors
Part#:12845477
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

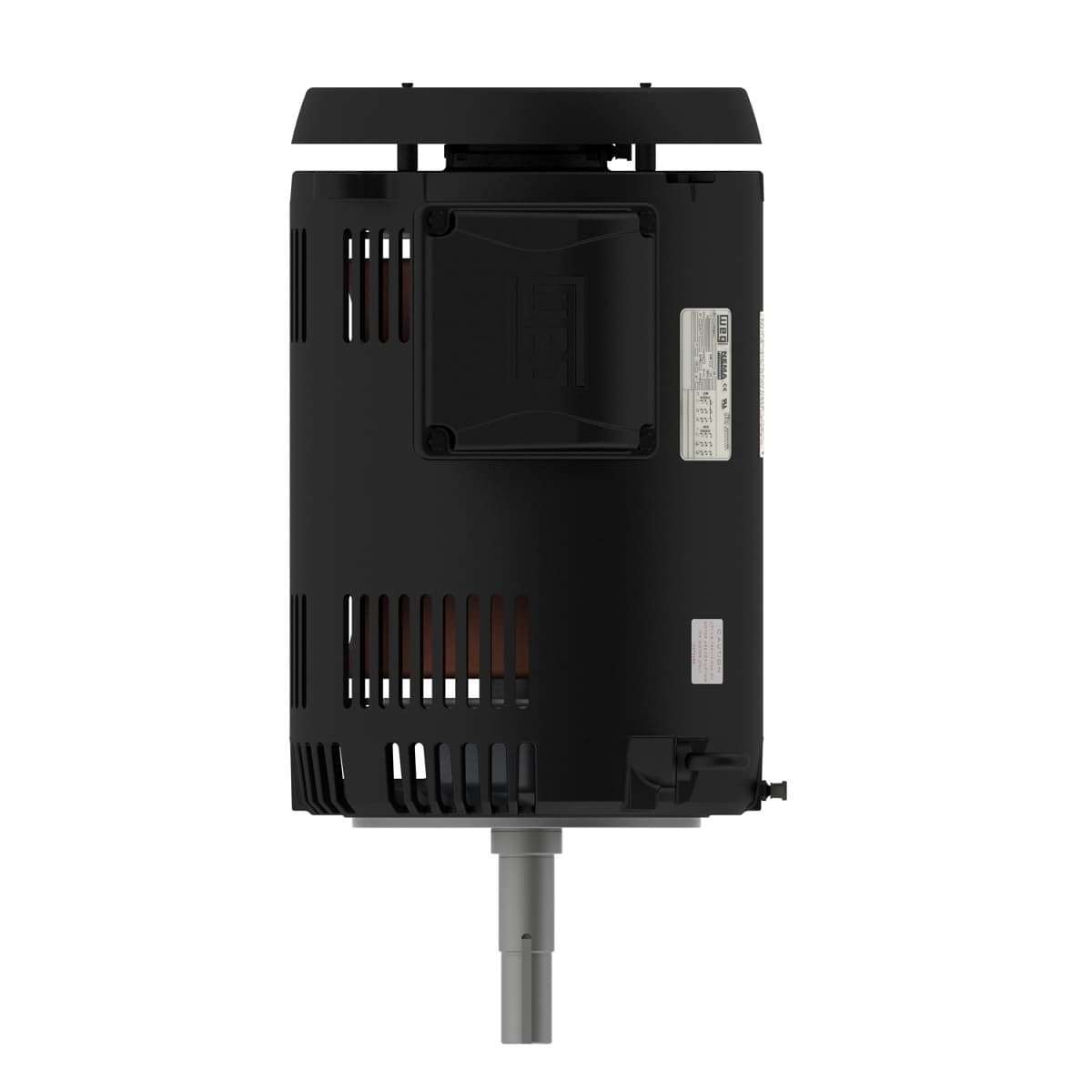

Rolled Steel JM Pump High Efficiency 10 HP 2P 213/5JM 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 12845477 WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 6.4x(Code G)
- Altitude 1000 m.a.s.l.
- Flange C
- Frequency 60 Hz
- Design B
- Starting Method Direct On Line
- Noise level² 66.0 dB(A)
- Output 10 HP (7.5 kW)
- Rated torque 14.9 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 3530 rpm
- Locked rotor time 14s (cold) 8s (hot)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 103 lb
- Rated voltage 575 V
- Locked rotor torque 180 %
- Temperature rise 80 K
- Service factor 1.15
- Voltage 575 V
- L. R. Amperes 62.5 A
- Slip 1.94 %
- No load current 4.10 A
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- Number of Poles 2
- Breakdown torque 260 %
- Insulation Class F
- Number of poles 2
- Frame 213/5JM
- Moment of inertia (J) 0.3816 sq.ft.lb
- Mounting W-6
- Output rating 10 HP
- Terminal box¹ Left position
- Rated current 9.76 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12845477 Specs
1-year warranty
