12845470 WEG AC Motors
Part#:12845470
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

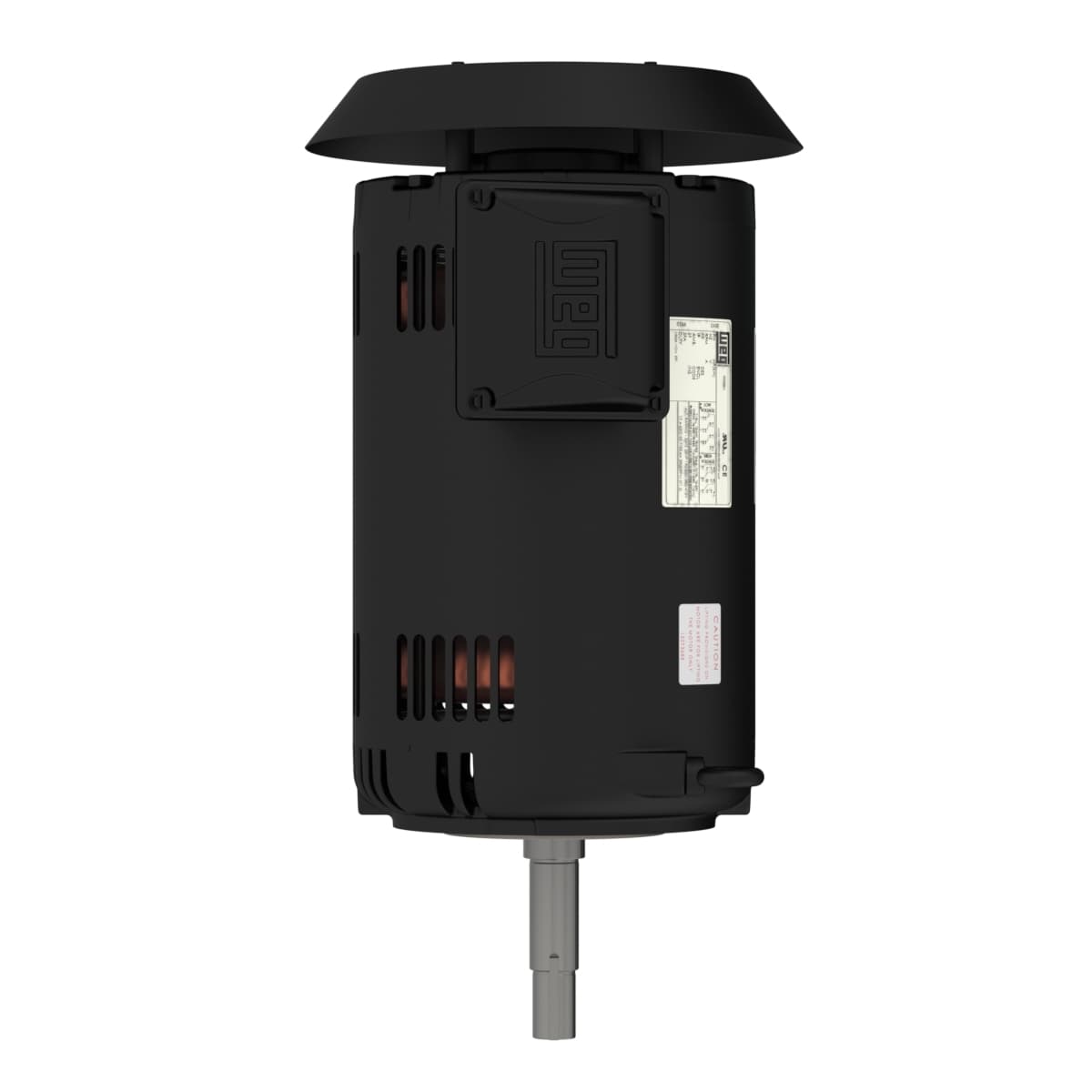

Rolled Steel JM Pump High Efficiency 7.5 HP 2P 182/4JM 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 12845470 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3500 rpm
- Moment of inertia (J) 0.1559 sq.ft.lb
- Enclosure IC01 - ODP
- Number of Poles 2
- Rated torque 11.3 ft.lb
- Temperature rise 80 K
- Number of poles 2
- Frame 182/4JM
- LRC 7.0x(Code H)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- L. R. Amperes 143/71.3 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 7.5 HP
- Frequency 60 Hz
- Starting Method Direct On Line
- Voltage 200/400 V
- Slip 2.78 %
- Design B
- Standard NEMA MG-1
- Rated voltage 200/400 V
- Breakdown torque 280 %
- Mounting W-6
- Flange C
- No load current 8.04/4.02 A
- Service factor 1.15
- Terminal box¹ Left position
- Output 7.5 HP (5.5 kW)
- Locked rotor time 19s (cold) 11s (hot)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 70.7 lb
- Rated current 20.4/10.2 A
- Locked rotor torque 180 %
- Rotation¹ Both (CW and CCW)
- Noise level² 65.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12845470 Specs
1-year warranty
