12682699 WEG AC Motors
Part#:12682699
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

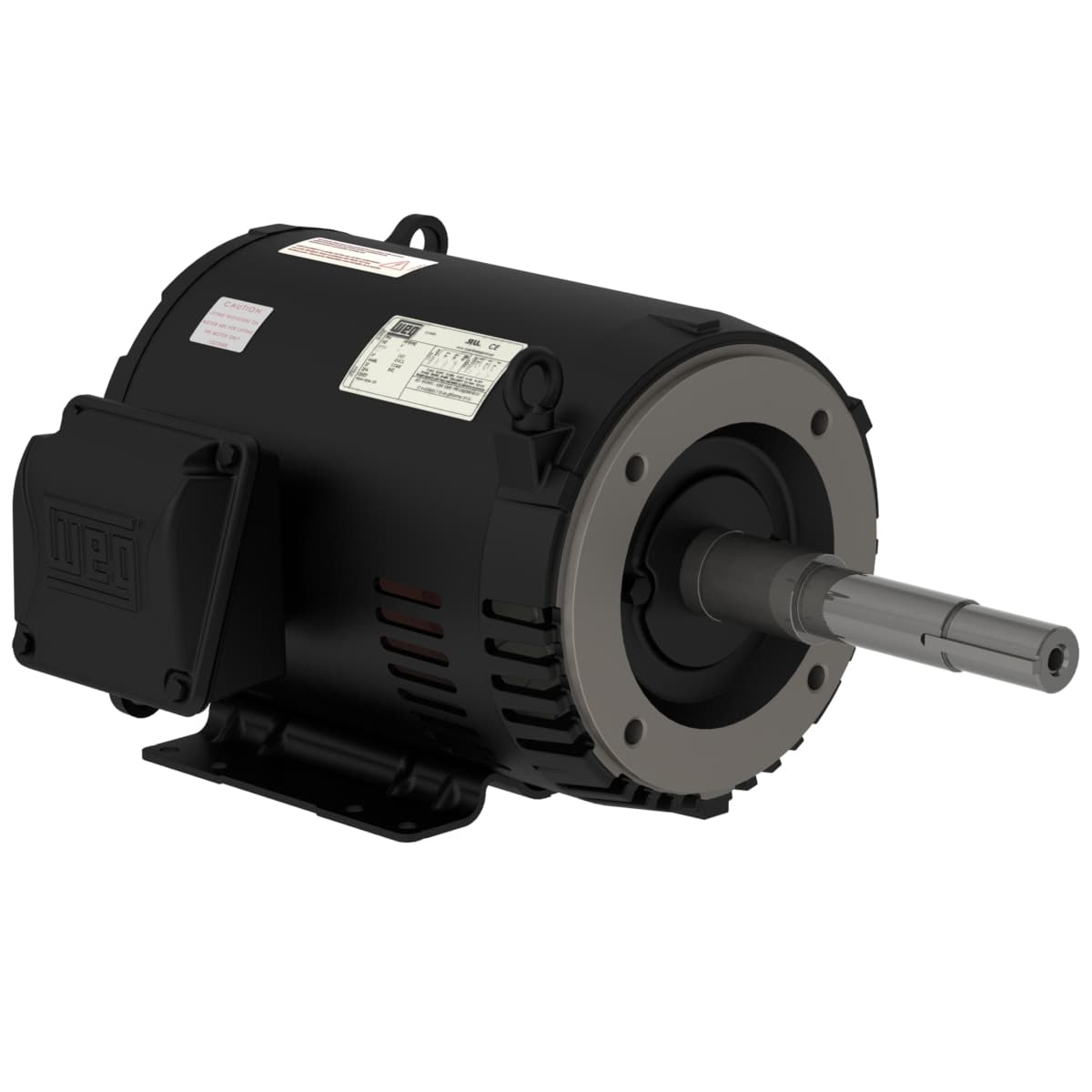

Rolled Steel JP Pump High Efficiency 15 HP 2P 213/5JP 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12682699 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 15 HP (11 kW)
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frequency 60 Hz
- LRC 6.5x(Code G)
- Locked rotor time 10s (cold) 6s (hot)
- Approx. weight³ 129 lb
- Slip 2.08 %
- Moment of inertia (J) 0.4651 sq.ft.lb
- Synchronous speed 3600 rpm
- Rated voltage 230/460 V
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Number of Poles 2
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frame 213/5JP
- Rated torque 22.3 ft.lb
- Mounting F-1
- Voltage 230/460//190-220/380-415 V
- Rated speed 3525 rpm
- Locked rotor torque 190 %
- Design B
- Number of poles 2
- L. R. Amperes 228/114 A
- Temperature rise 80 K
- Noise level² 66.0 dB(A)
- No load current 14.7/7.36 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 15 HP
- Rated current 35.0/17.5 A
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
