12682701 WEG AC Motors
Part#:12682701
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

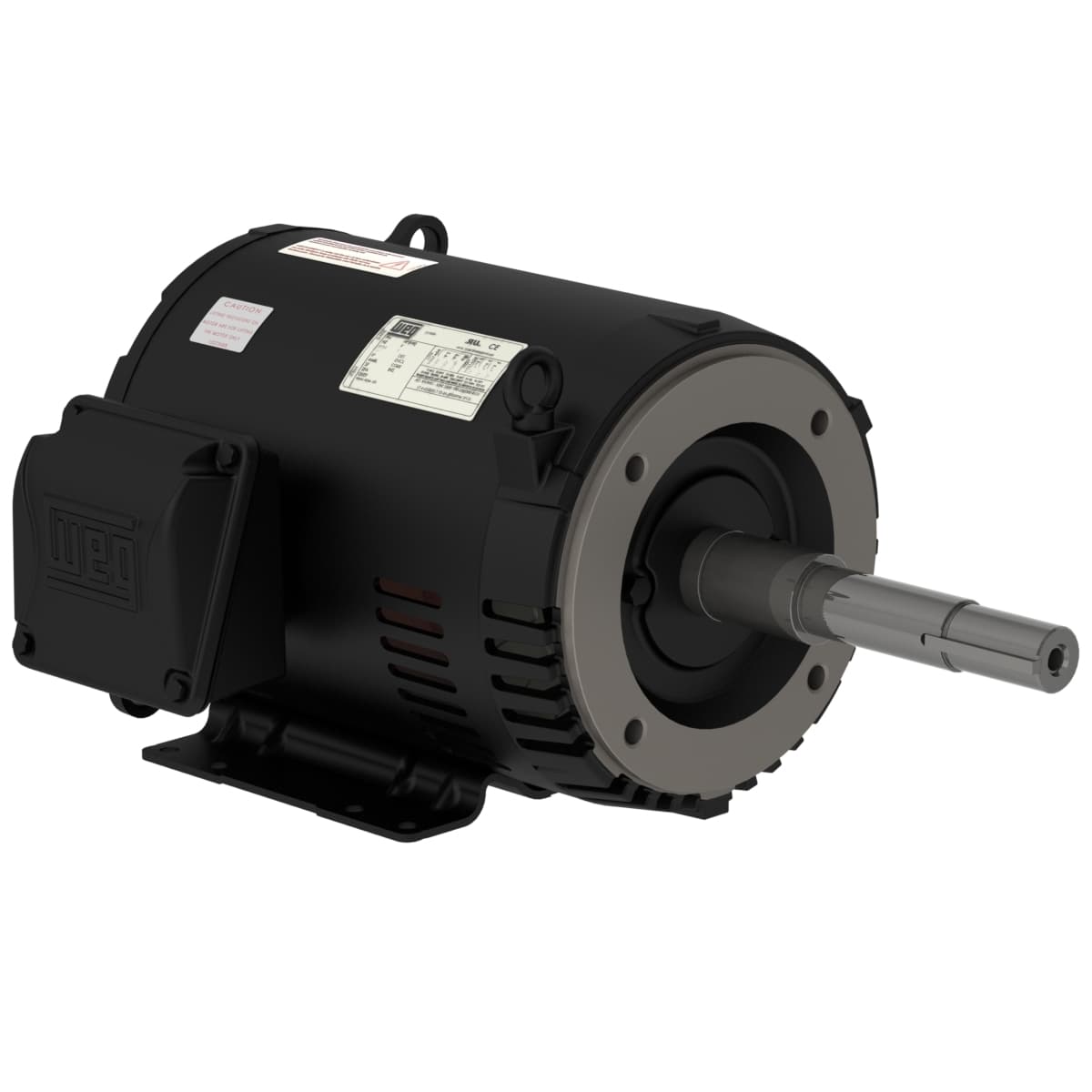

Rolled Steel JP Pump High Efficiency 15 HP 2P 213/5JP 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12682701 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 15 HP (11 kW)
- LRC 6.5x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Output rating 15 HP
- Rated voltage 200/400 V
- Rated torque 22.3 ft.lb
- Altitude 1000 m.a.s.l.
- Approx. weight³ 129 lb
- Terminal box¹ Left position
- Frequency 60 Hz
- Locked rotor torque 190 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Slip 2.08 %
- Locked rotor time 10s (cold) 6s (hot)
- Ambient temperature -20°C to +40°C
- L. R. Amperes 262/131 A
- Number of Poles 2
- Design B
- Mounting F-1
- Voltage 200/400 V
- Rated speed 3525 rpm
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Frame 213/5JP
- Service factor 1.15
- Noise level² 66.0 dB(A)
- Flange C
- No load current 16.9/8.46 A
- Insulation Class F
- Enclosure IC01 - ODP
- Number of poles 2
- Rated current 40.2/20.1 A
- Moment of inertia (J) 0.4651 sq.ft.lb
- Breakdown torque 260 %
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12682701 Specs
1-year warranty
