12630640 WEG AC Motors
Part#:12630640
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

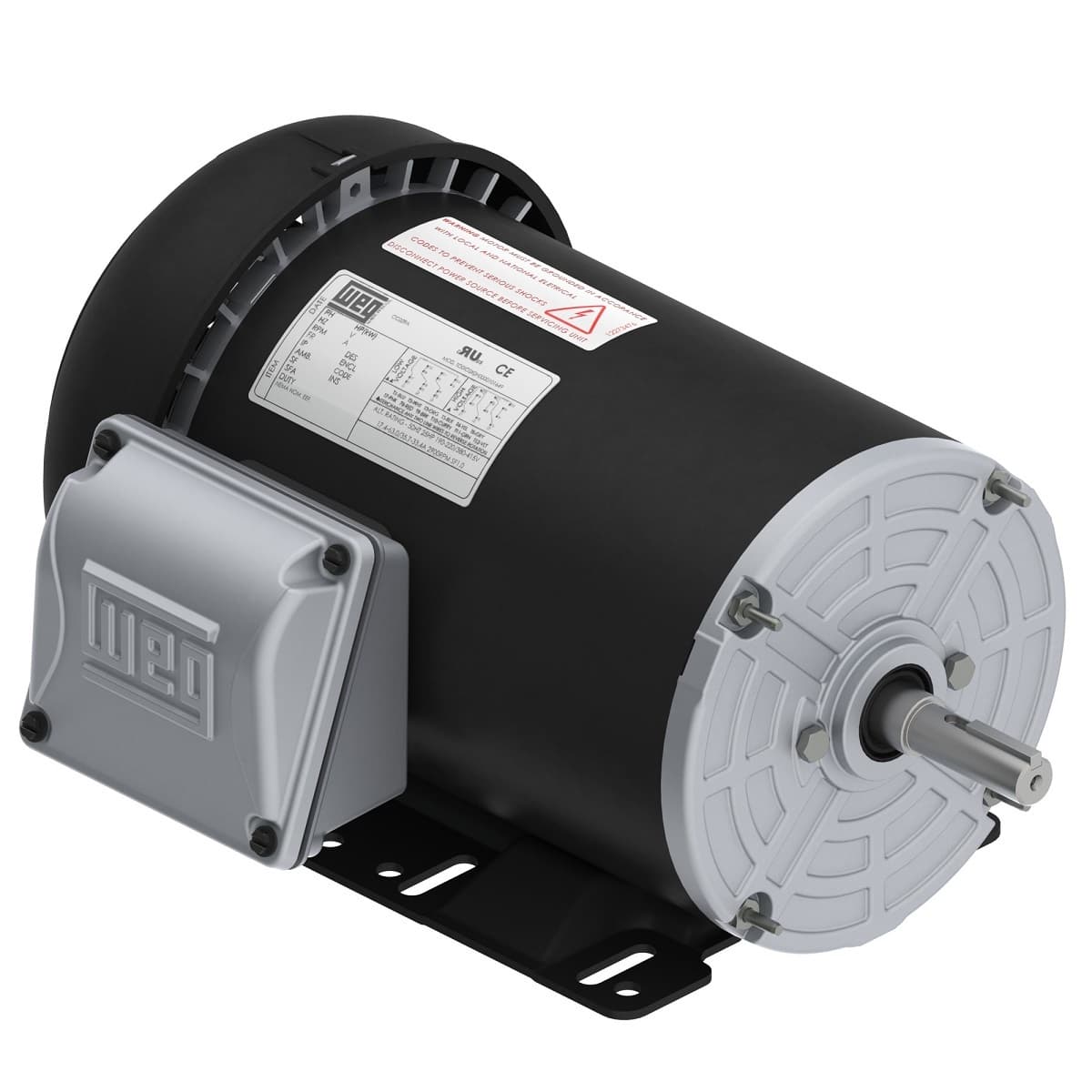

Rolled Steel Standard Efficiency 3 HP 2P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12630640 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Insulation Class F
- Noise level² 68.0 dB(A)
- Output 3 HP (2.2 kW)
- Rated torque 4.53 ft.lb
- Service factor 1.15 (1.00 @ 208V)
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Locked rotor time 10s (cold) 6s (hot)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- L. R. Amperes 63.9/32.0 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 40.2 lb
- No load current 2.80/1.40 A
- Starting Method Direct On Line
- Output rating 3 HP
- Frame 56H
- Frequency 60 Hz
- Design A
- Degree of Protection IP55
- LRC 8.5x(Code K)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Rated current 7.52/3.76 A
- Moment of inertia (J) 0.1279 sq.ft.lb
- Enclosure IC411 - TEFC
- Number of poles 2
- Slip 3.33 %
- Breakdown torque 280 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated speed 3480 rpm
- Locked rotor torque 270 %
- Mounting F-1
- Voltage 230/460//190-220/380-415 V
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12630640 Specs
