11812971 WEG AC Motors
Part#:11812971
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

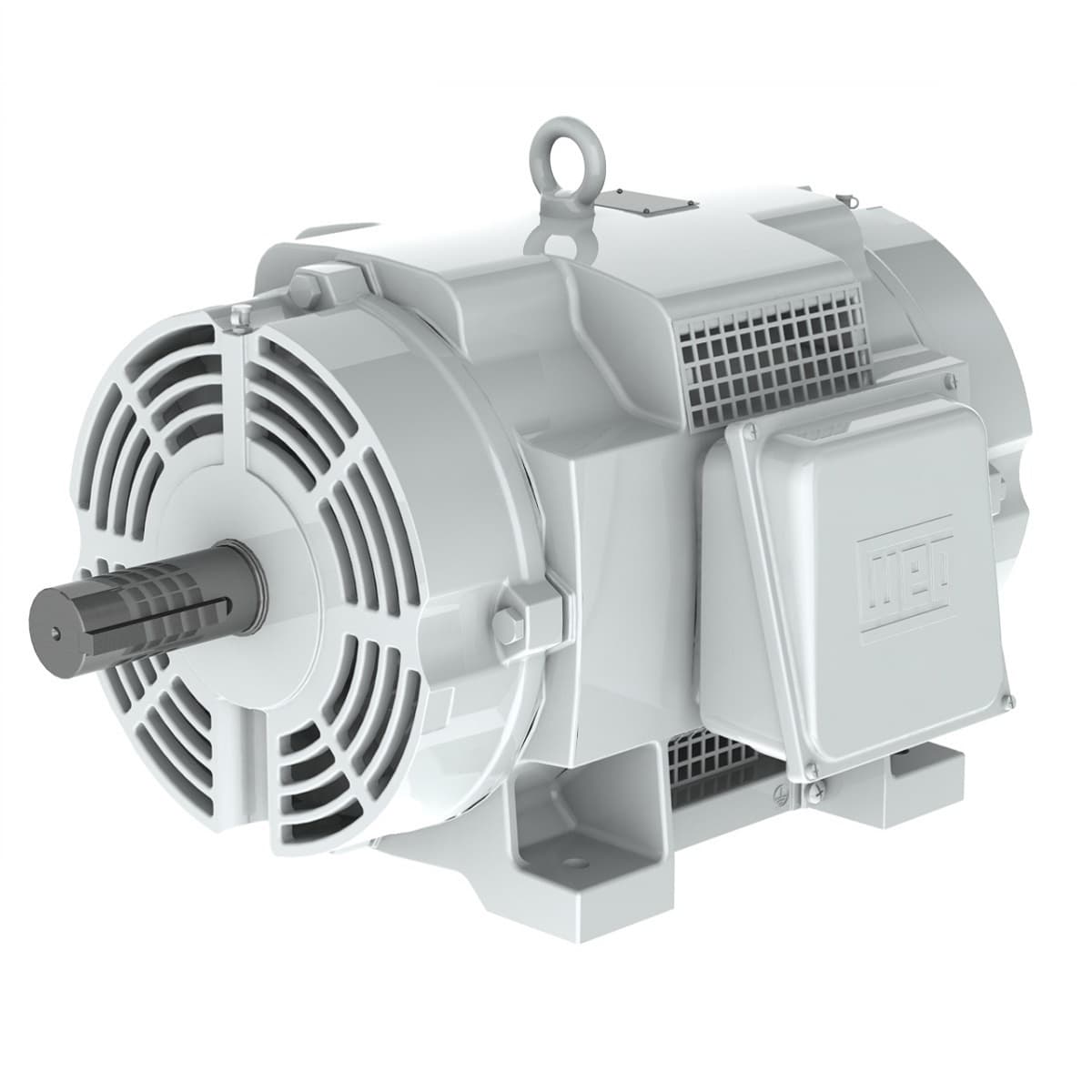

ODP Standard Efficiency 60 HP 6P 404/5T 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11812971 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 60 HP (45 kW)
- Moment of inertia (J) 27.9 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1200 rpm
- Frame 404/5T
- LRC 5.7x(Code G)
- Degree of Protection IP23
- Flange Without
- Insulation Class F
- Approx. weight³ 932 lb
- Rated speed 1125 rpm
- Number of Poles 6
- Design D
- Mounting F-2
- Standard NEMA MG-1
- Rated torque 280 ft.lb
- Ambient temperature -20°C to +40°C
- Noise level² 69.0 dB(A)
- L. R. Amperes 947-856/428 A
- Locked rotor torque 280 %
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Output rating 60 HP
- Slip 6.25 %
- Enclosure IC01 - ODP
- Breakdown torque 0 %
- Terminal box¹ Right position
- Rated current 166-150/75.1 A
- No load current 64.1-58.0/29.0 A
- Service factor 1.00
- Number of poles 6
- Rated voltage 208-230/460 V
- Locked rotor time 45s (cold) 25s (hot)
- Starting Method Direct On Line
- Voltage 208-230/460 V
