11733810 WEG AC Motors
Part#:11733810
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

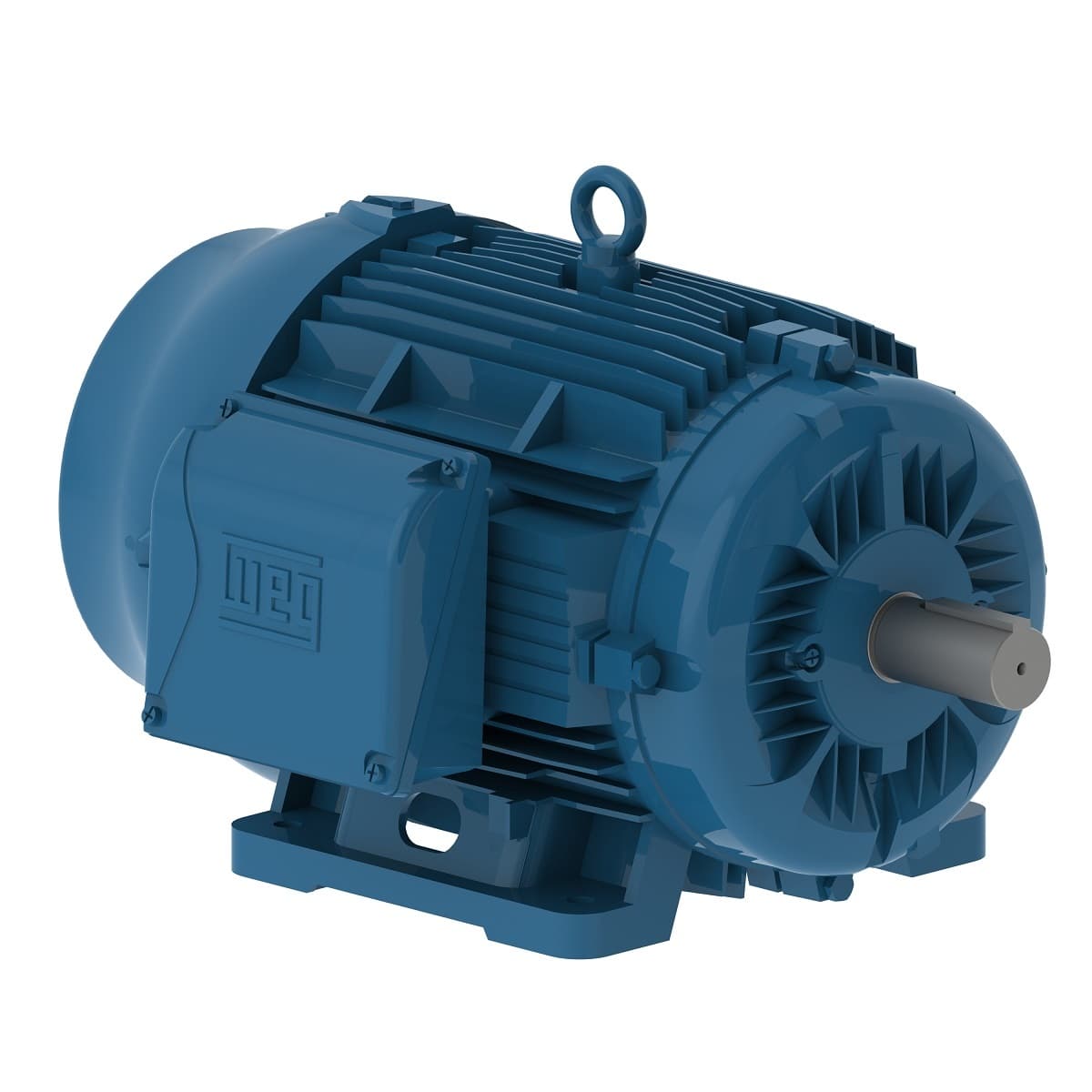

W22 High Efficiency 25 HP 8P 324/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11733810 WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 3.8x(Code D)
- Service factor 1.25
- Noise level² 56.0 dB(A)
- No load current 18.8 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 552 lb
- Frame 324/6T
- Moment of inertia (J) 11.9 sq.ft.lb
- Degree of Protection IP55
- Flange Without
- Output 25 HP (18.5 kW)
- Rated torque 181 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated voltage 380 V
- Design B
- Enclosure IC411 - TEFC
- L. R. Amperes 159 A
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Slip 3.33 %
- Locked rotor torque 160 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 900 rpm
- Number of Poles 8
- Rated current 41.9 A
- Temperature rise 80 K
- Output rating 25 HP
- Frequency 50 Hz
- Breakdown torque 160 %
- Ambient temperature -20°C to +40°C
- Number of poles 8
- Rated speed 725 rpm
- Locked rotor time 64s (cold) 36s (hot)
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11733810 Specs
