11546761 WEG AC Motors
Part#:11546761
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

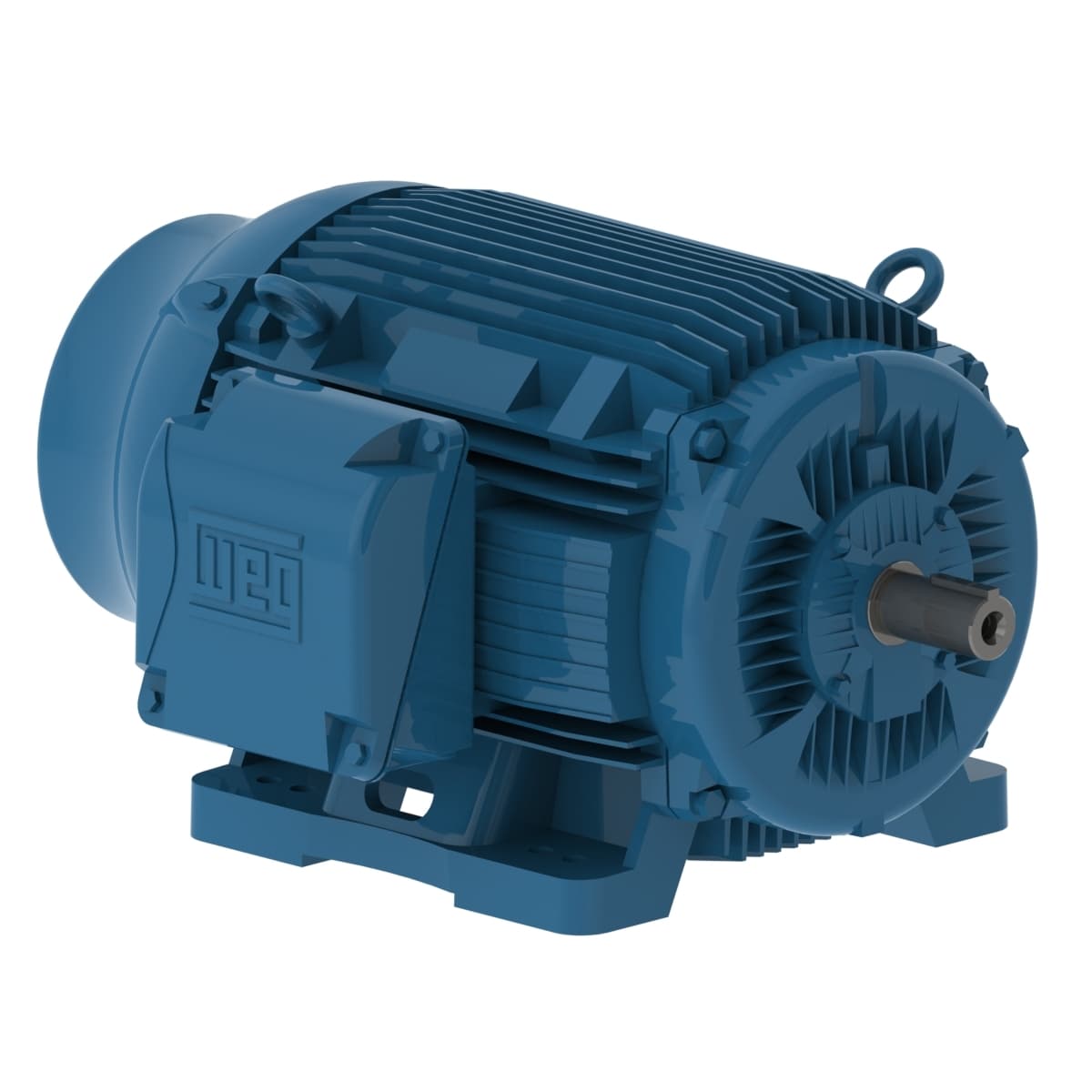

W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11546761 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 0.83 %
- Moment of inertia (J) 33.5 sq.ft.lb
- Output 125 HP
- Frequency 60 Hz
- Rated voltage 230/460 V
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.6x(Code G)
- L. R. Amperes 1769/884 A
- Noise level² 81.0 dB(A)
- Rated current 268/134 A
- Starting Method Direct On Line
- Insulation Class F
- Enclosure IC411 - TEFC
- Rated speed 3570 rpm
- Temperature rise 80 K
- Terminal box¹ Left position
- No load current 68.0/34.0 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 1633 lb
- Number of Poles 2
- Breakdown torque 250 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Material (FERT) 50006910
- Locked rotor torque 200 %
- Voltage 230/460 V
- Design B
- Flange Without
- Frame 444/5TS
- Service factor 1.15
- Mounting F-1
- Output rating 125 HP
- Rated torque 184 ft.lb
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Locked rotor time 52s (cold) 29s (hot)
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11546761 Specs
1-year warranty
