11114248 WEG AC Motors
Part#:11114248
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

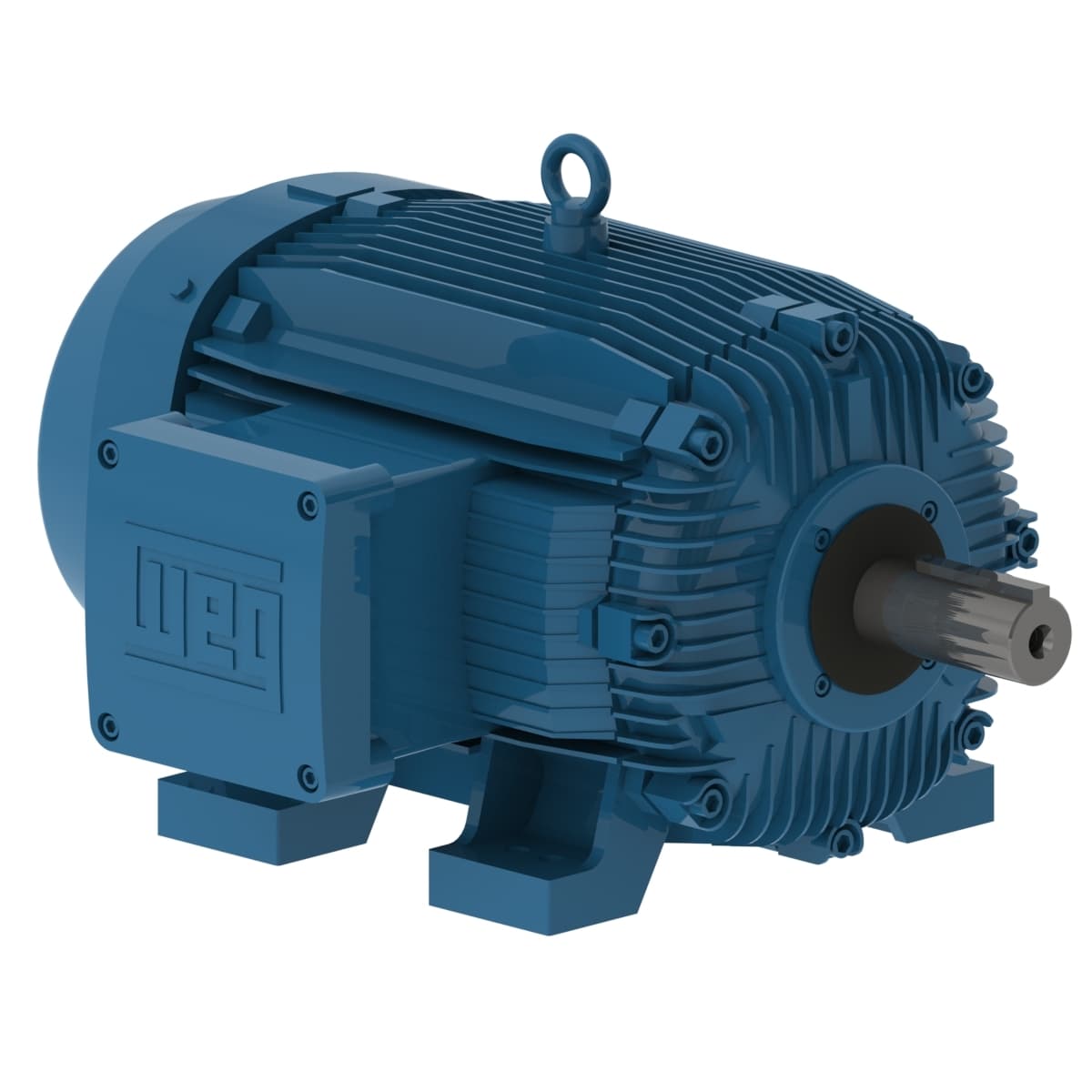

W21 Explosion-proof Motor High Efficiency 50 HP 8P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11114248 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 8
- Rated speed 885 rpm
- Breakdown torque 210 %
- Rotation¹ Both (CW and CCW)
- Synchronous speed 900 rpm
- Frame 404/5T
- Locked rotor torque 220 %
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Rated torque 297 ft.lb
- Service factor 1.15
- Approx. weight³ 1102 lb
- Terminal box¹ Left position
- L. R. Amperes 727/363 A
- Locked rotor time 48s (cold) 27s (hot)
- Ambient temperature -20°C to +40°C
- LRC 5.6x(Code G)
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 50 HP
- Frequency 60 Hz
- No load current 47.5/23.8 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 1.67 %
- Moment of inertia (J) 34.6 sq.ft.lb
- Enclosure IC411 - TEFC
- Flange Without
- Rated voltage 230/460 V
- Design B
- Mounting F-1
- Number of poles 8
- Rated current 130/64.9 A
- Duty Cycle Cont.(S1)
- Noise level² 62.0 dB(A)
- Output 50 HP (37 kW)
- Degree of Protection IP55
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11114248 Specs
1-year warranty
