11110803 WEG AC Motors
Part#:11110803
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

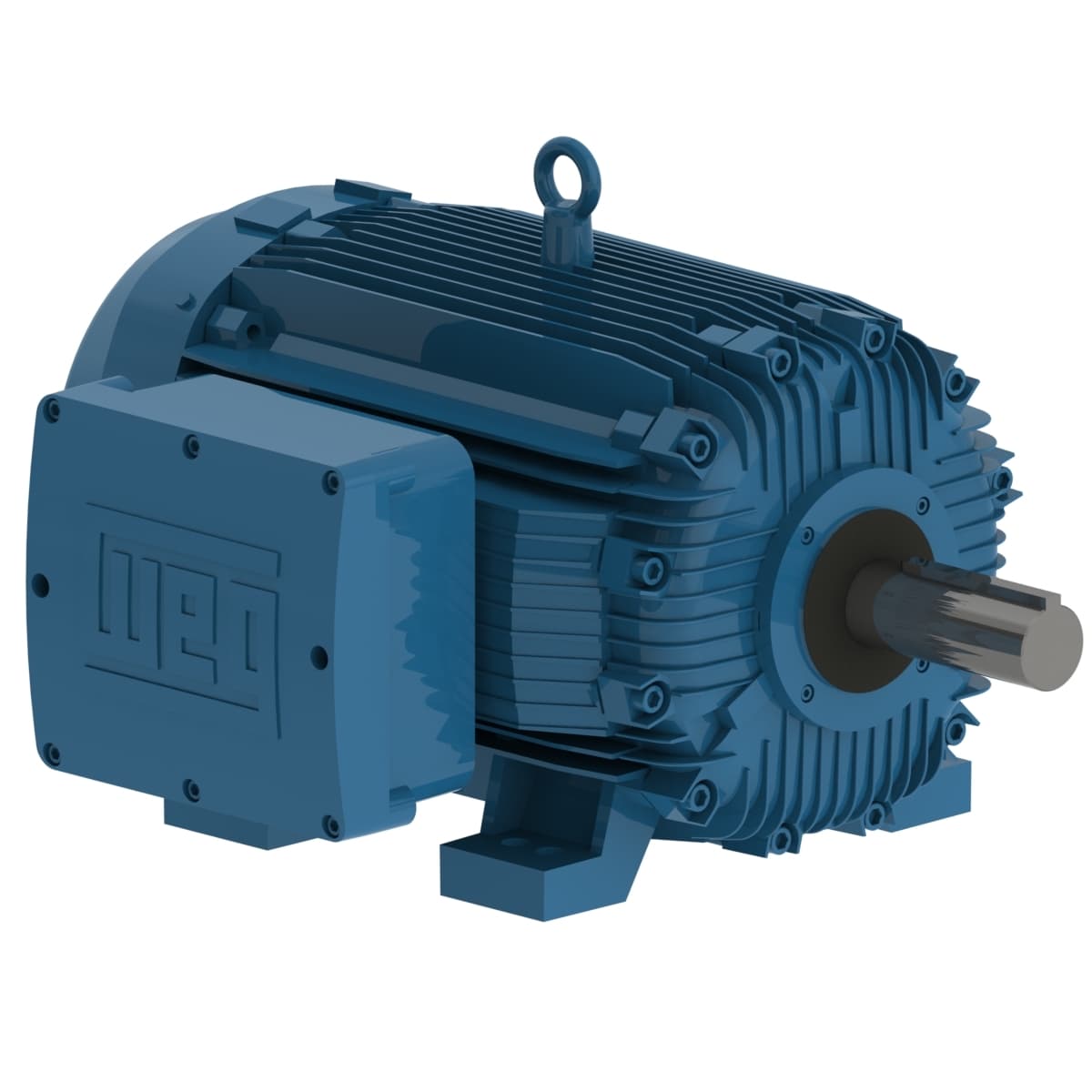

W21 Explosion-proof Motor High Efficiency 300 HP 4P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11110803 WEG price in the box on the right side or send a quick quote.
Product Details
- No load current 81.0 A
- Temperature rise 80 K
- Approx. weight³ 3851 lb
- Breakdown torque 229 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- L. R. Amperes 2171 A
- Locked rotor time 100s (cold) 56s (hot)
- Mounting F-1
- Synchronous speed 1800 rpm
- Slip 0.56 %
- Rated voltage 460 V
- Locked rotor torque 200 %
- Enclosure IC411 - TEFC
- Output rating 300 HP
- Frame 586/7T
- Rated current 329 A
- Design B
- Noise level² 83.0 dB(A)
- LRC 6.6x(Code G)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Number of poles 4
- Number of Poles 4
- Rated torque 880 ft.lb
- Standard NEMA MG-1
- Output 300 HP (220 kW)
- Moment of inertia (J) 163 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Rated speed 1790 rpm
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Flange Without
- Frequency 60 Hz
- Insulation Class F
- Degree of Protection IP55
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
