11086177 WEG AC Motors
Part#:11086177
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

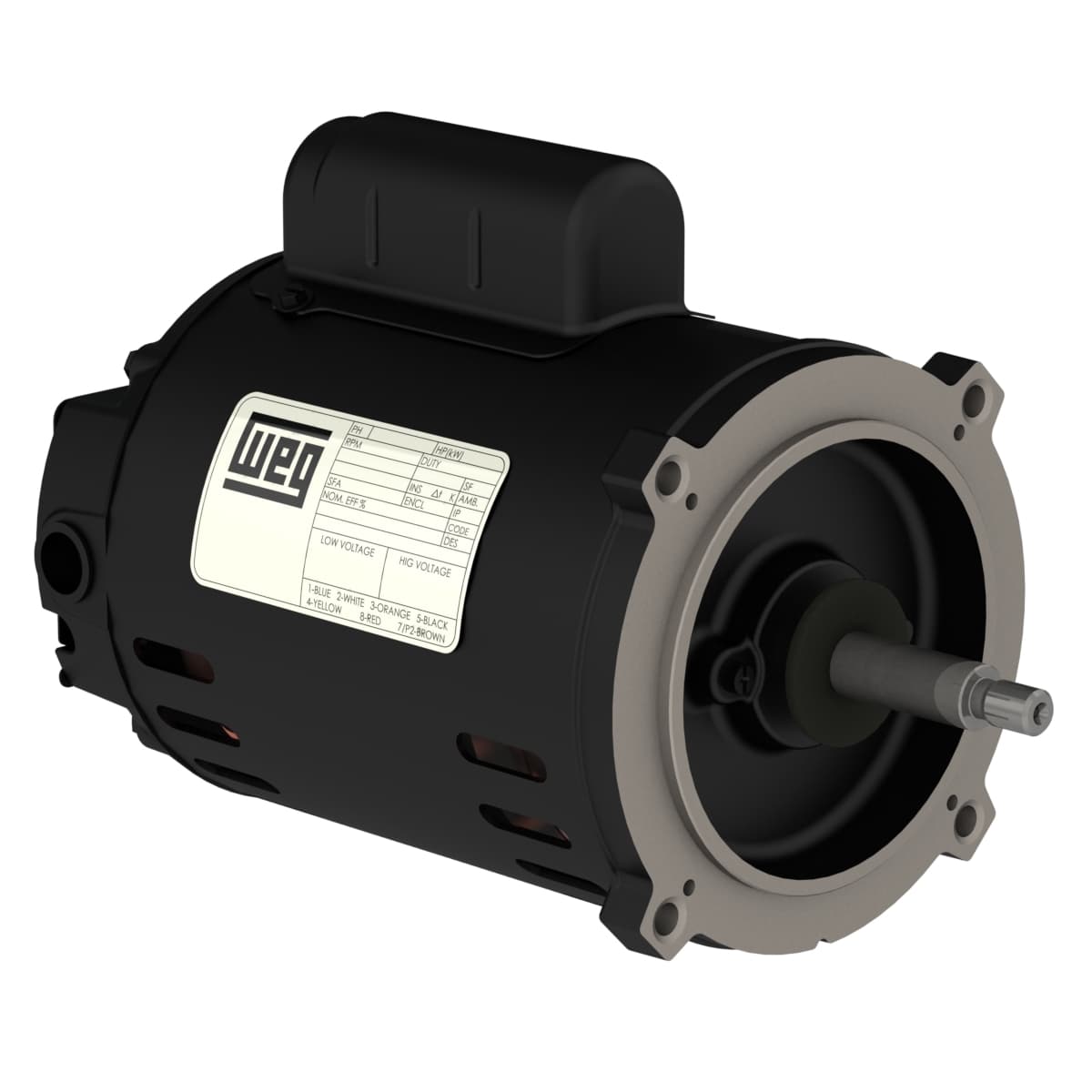

Wjet Pump Start Capacitor 0.33 HP 2P W56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the 11086177 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3445 rpm
- Locked rotor time 10s (cold) 6s (hot)
- Degree of Protection IP21
- Standard NEMA MG-1
- L. R. Amperes 28.0/12.4-14.0 A
- Insulation Class B
- Rotation¹ CCW
- Rated current 7.00/3.10-3.50 A
- Starting Method Direct On Line
- Mounting F-1
- Number of poles 2
- Number of Poles 2
- Moment of inertia (J) 0.1471 sq.ft.lb
- Voltage 115/208-230 V
- Frequency 60 Hz
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Output rating 0.33 HP
- Rated voltage 115/208-230 V
- Rated torque 0.503 ft.lb
- Approx. weight³ 17.4 lb
- Terminal box¹ Without Terminal Box
- Slip 4.31 %
- Service factor 1.75 (1.00 @ 208V)
- Enclosure IC01 - ODP
- Frame W56J
- Locked rotor torque 270 %
- Altitude 1000 m.a.s.l.
- Flange FC 149
- Output 0.33 HP (0.25 kW)
- No load current 6.10/2.63-3.05 A
- Duty Cycle Cont.(S1)
- LRC 4.0x(Code L)
- Temperature rise 80 K
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11086177 Specs
