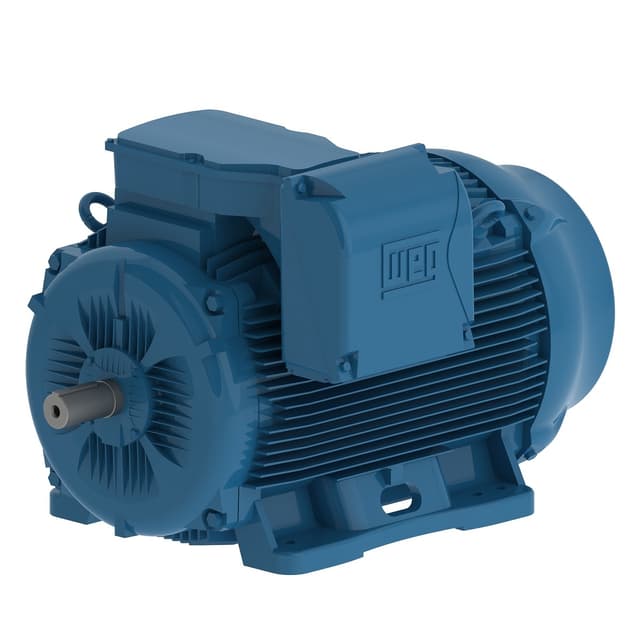

11012EG3Y315L-W22 WEG AC Motors
Part#:11012EG3Y315L-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 Tru-Metric IE4 150 HP 6P 315L 3Ph 460//380-400-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 11012EG3Y315L-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 6
- Rated speed 990 rpm
- Locked rotor time 79s (cold) 44s (hot)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of poles 6
- Terminal box¹ Right position
- Frequency 50 Hz
- No load current 83.0 A
- Enclosure IC411 - TEFC
- Synchronous speed 1200 rpm
- Rated voltage 380 V
- Insulation Class F
- Noise level² 68.0 dB(A)
- Frame 315L
- Moment of inertia (J) 210 sq.ft.lb
- Starting Method Direct On Line
- Voltage 460//380-400-415 V
- Output 150 HP (110 kW)
- Rated torque 796 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.9
- Breakdown torque 240 %
- Mounting B3L(E)
- Flange Without
- Rated current 210 A
- Design NE
- Degree of Protection IP55
- Output rating 150 HP
- Slip 1.00 %
- Service factor 1.00
- Altitude 1000 m.a.s.l.
- L. R. Amperes 1449 A
- Locked rotor torque 220 %
- Duty Cycle S1
- Approx. weight³ 2889 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
