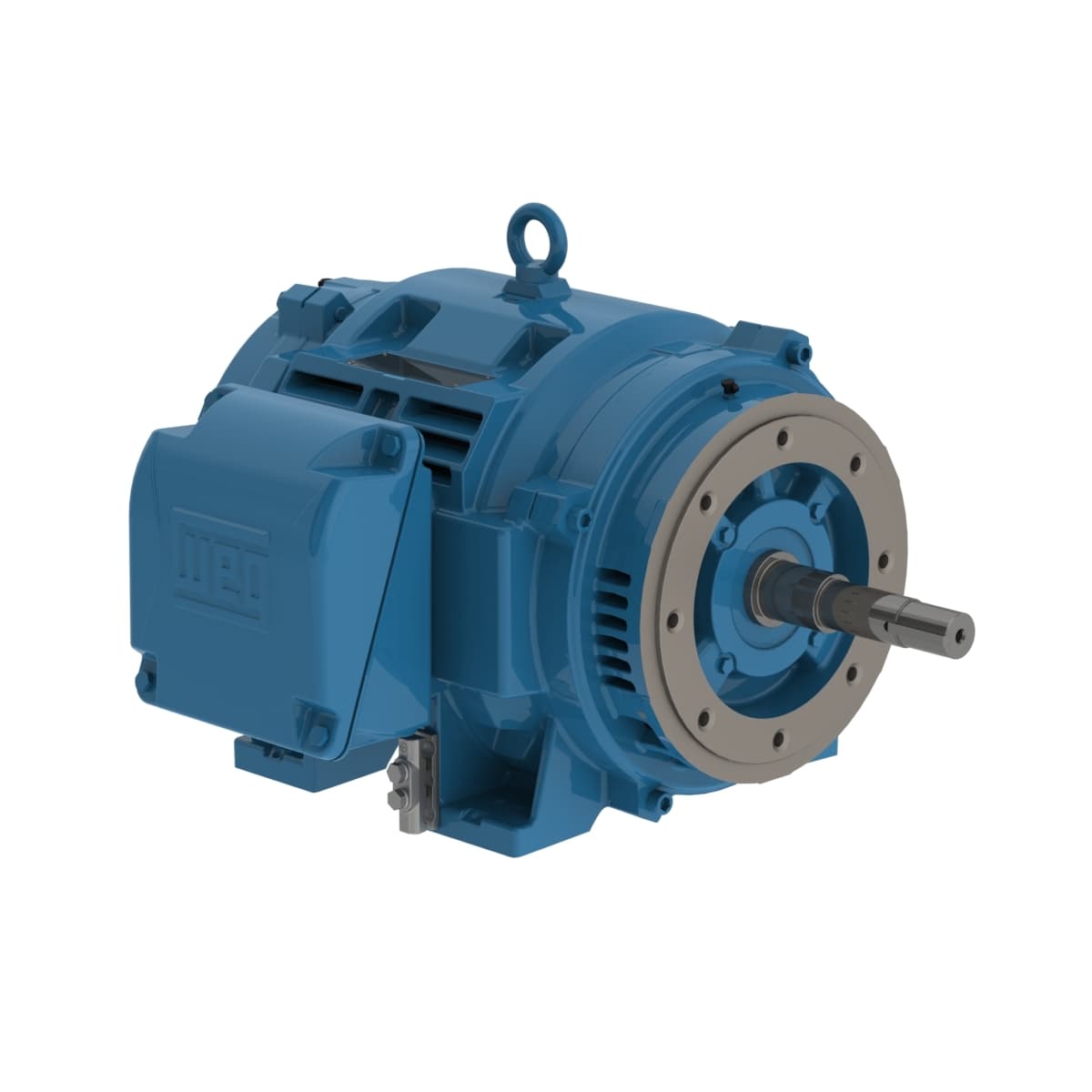

07518OT3H365JP-W40 WEG AC Motors
Part#:07518OT3H365JP-W40
Manufacturer:WEG
Alt. Part#:7909323901281
Product Lifecycle:Active
Get a quick Quote!
W40 JP Pump NEMA Premium Efficiency 75 HP 4P 364/5JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 07518OT3H365JP-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeC
- Output 75 HP (55 kW)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 811 lb
- Output rating 75 HP
- Frequency 60 Hz
- Locked rotor torque 220 %
- Insulation Class F
- Voltage 575 V
- Rated voltage 575 V
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Frame 364/5JP
- Rated torque 221 ft.lb
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- LRC 6.8x(Code G)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
- Number of Poles 4
- Moment of inertia (J) 16.8 sq.ft.lb
- Design B
- Flange C
- Rated speed 1780 rpm
- Breakdown torque 260 %
- Service factor 1.25
- Rated current 68.4 A
- Temperature rise 80 K
- Mounting F-1
- L. R. Amperes 465 A
- Locked rotor time 25s (cold) 14s (hot)
- Enclosure IC01 - ODP
- Number of poles 4
- Slip 1.11 %
- No load current 24.4 A
- Ambient temperature -20°C to +40°C
- Noise level² 69.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
