07518OP3EFP365TS WEG AC Motors
Part#:07518OP3EFP365TS
Manufacturer:WEG
Alt. Part#:7891327668263
Product Lifecycle:Active
Get a quick Quote!

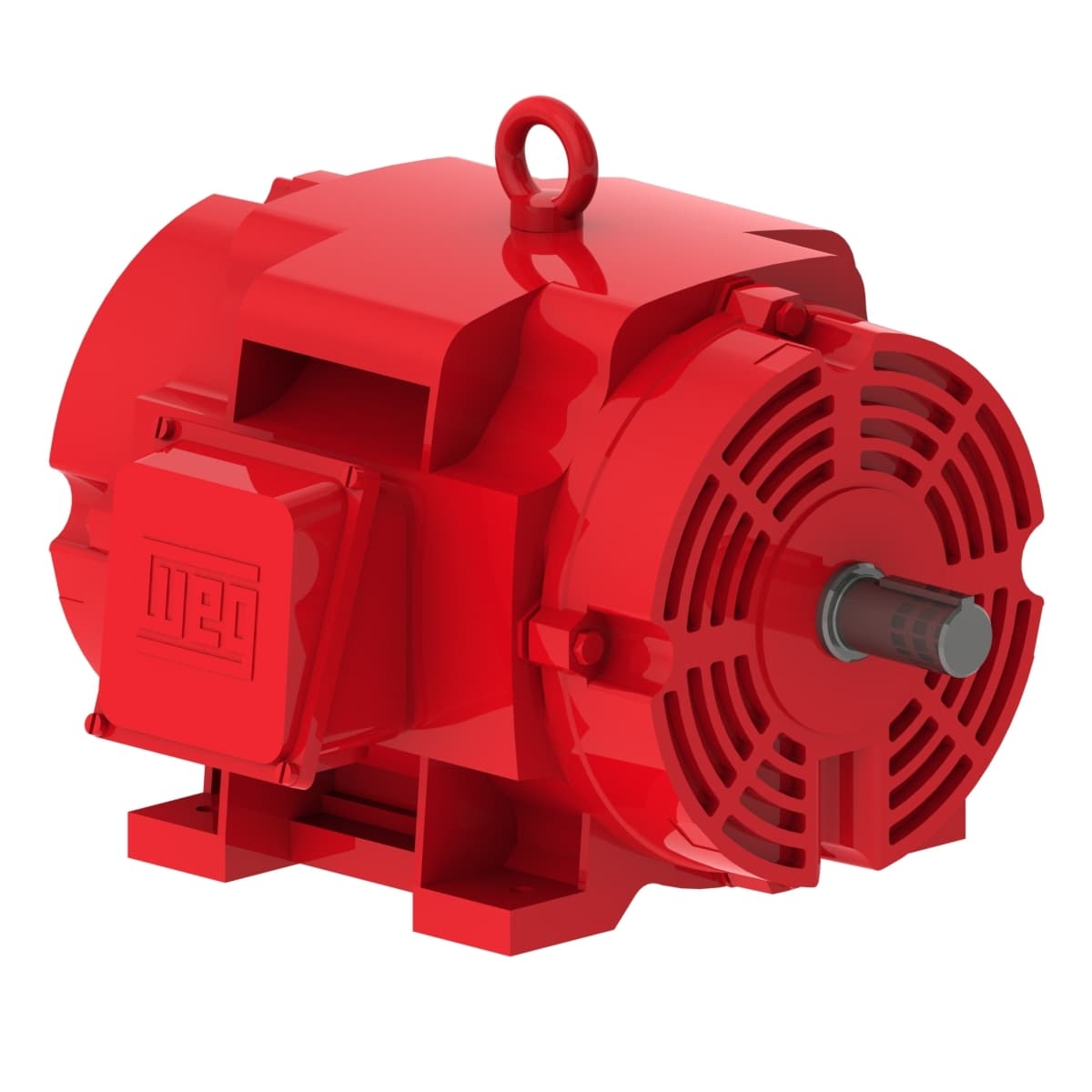

ODP High Efficiency 75 HP 4P 364/5TS 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 07518OP3EFP365TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 1075/537 A
- Locked rotor time 30s (cold) 17s (hot)
- Degree of Protection IP23
- Rated current 171/85.3 A
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Flange Without
- No load current 54.0/27.0 A
- Approx. weight³ 782 lb
- Slip 1.11 %
- Moment of inertia (J) 16.2 sq.ft.lb
- Standard NEMA MG-1
- Output 75 HP (55 kW)
- Locked rotor torque 240 %
- Mounting F-1
- Terminal box¹ Left position
- Rated voltage 230/460 V
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Number of poles 4
- Number of Poles 4
- LRC 6.3x(Code G)
- Insulation Class F
- Noise level² 68.0 dB(A)
- Output rating 75 HP
- Rated speed 1780 rpm
- Breakdown torque 280 %
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Frame 364/5TS
- Frequency 60 Hz
- Design B
- Enclosure IC01 - ODP
- Voltage 230/460 V
- Rated torque 221 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
