06009XT3E405T WEG AC Motors
Part#:06009XT3E405T
Manufacturer:WEG
Alt. Part#:7892304607299
Product Lifecycle:Active
Get a quick Quote!

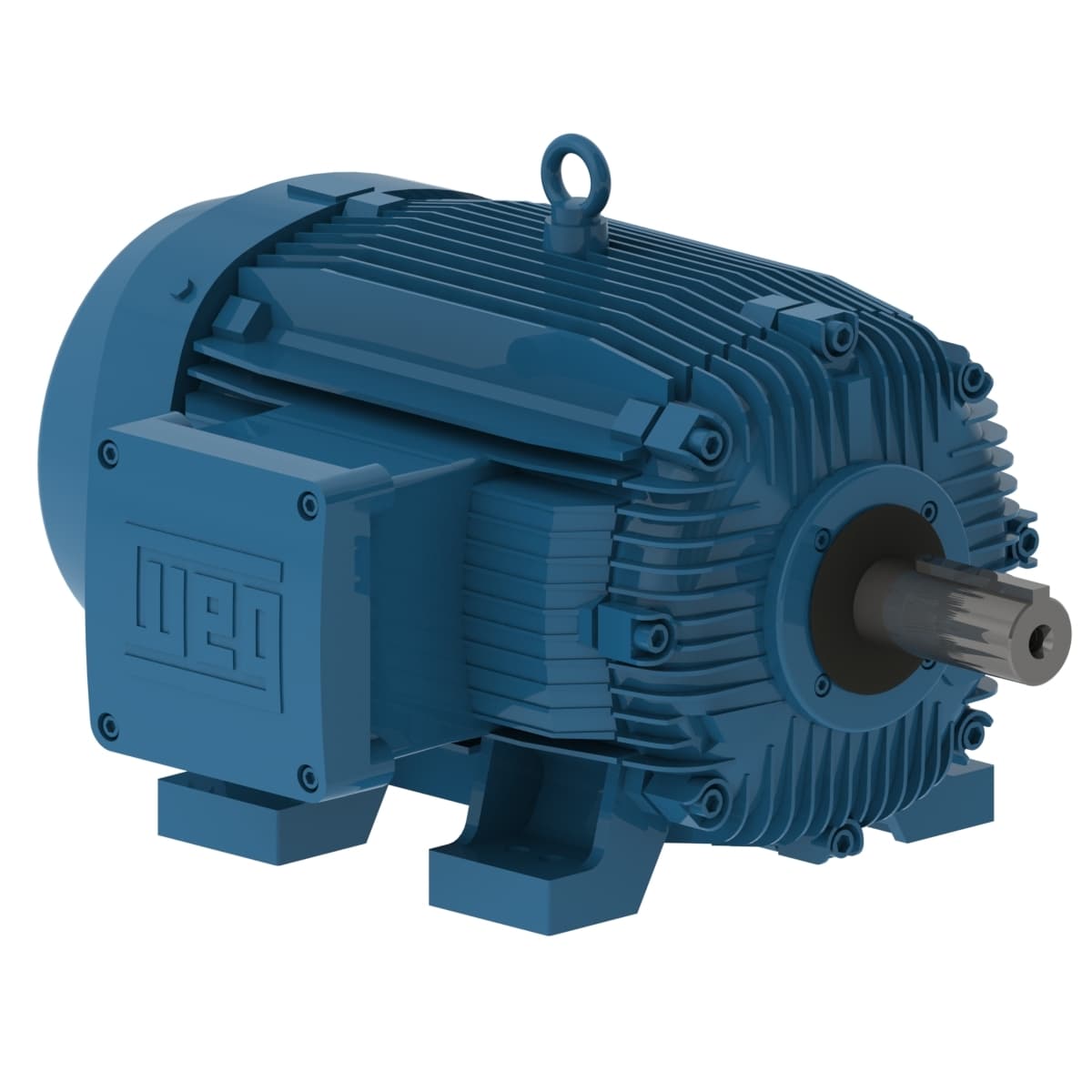

W21 Explosion-proof Motor NEMA Premium Efficiency 60 HP 8P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 06009XT3E405T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed885 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor time 45s (cold) 25s (hot)
- Noise level² 62.0 dB(A)
- Number of Poles 8
- Rated torque 356 ft.lb
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated current 152/75.9 A
- No load current 68.0/34.0 A
- Duty Cycle Cont.(S1)
- Number of poles 8
- Rated voltage 230/460 V
- Locked rotor torque 180 %
- Starting Method Direct On Line
- Voltage 230/460//380 V
- L. R. Amperes 941/471 A
- Design B
- Mounting F-1
- Output rating 60 HP
- Rated speed 885 rpm
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- LRC 6.2x(Code G)
- Temperature rise 80 K
- Approx. weight³ 1264 lb
- Slip 1.67 %
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Frame 404/5T
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Output 60 HP (45 kW)
- Moment of inertia (J) 38.3 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06009XT3E405T Specs
