06009ST3HIE405T-W22 WEG AC Motors
Part#:06009ST3HIE405T-W22
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

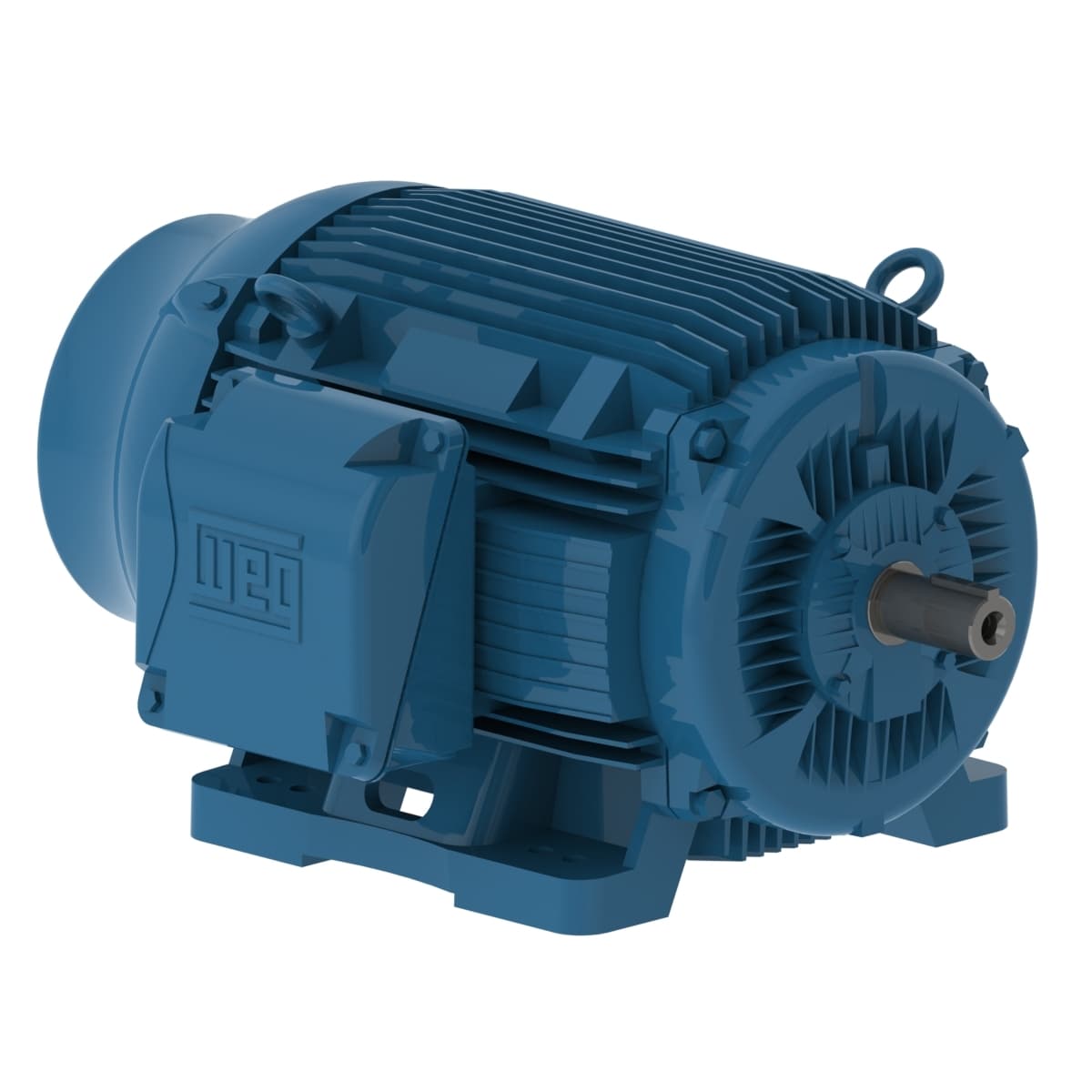

W22 IEEE 841 NEMA Premium Efficiency 60 HP 8P 404/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 06009ST3HIE405T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage575 V
- Flange TypeWithout
- Rated speed 880 rpm
- Locked rotor time 23s (cold) 13s (hot)
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Terminal box¹ Left position
- Slip 2.22 %
- Moment of inertia (J) 40.2 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated current 58.4 A
- No load current 24.0 A
- Design B
- Output 60 HP (45 kW)
- Rated voltage 575 V
- L. R. Amperes 380 A
- Duty Cycle Cont.(S1)
- Frame 404/5T
- Frequency 60 Hz
- Rated torque 358 ft.lb
- Locked rotor torque 180 %
- Temperature rise 80 K
- Degree of Protection IP56
- Number of poles 8
- Flange Without
- Number of Poles 8
- LRC 6.5x(Code H)
- Breakdown torque 270 %
- Insulation Class F
- Service factor 1.25
- Mounting F-1
- Approx. weight³ 1146 lb
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Enclosure IC411 - TEFC
- Output rating 60 HP
- Voltage 575 V
- Synchronous speed 900 rpm
- Noise level² 60.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 06009ST3HIE405T-W22 Specs
1-year warranty
