03009XT3E364T WEG AC Motors
Part#:03009XT3E364T
Manufacturer:WEG
Alt. Part#:7891327307063
Product Lifecycle:Active
Get a quick Quote!

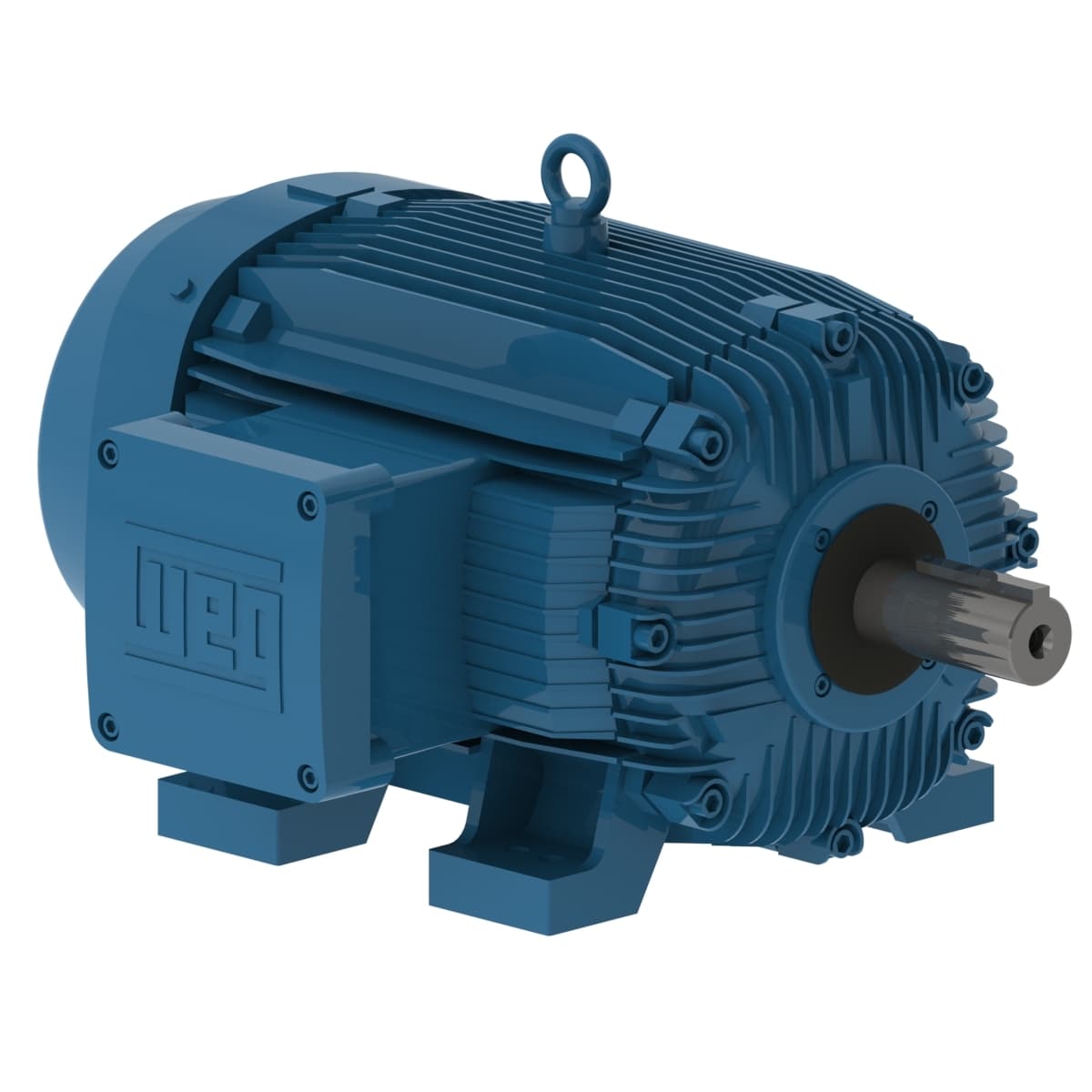

W21 Explosion-proof Motor NEMA Premium Efficiency 30 HP 8P 364/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 03009XT3E364T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed885 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Slip 1.67 %
- Locked rotor torque 210 %
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Rated speed 885 rpm
- Rated torque 178 ft.lb
- Degree of Protection IP55
- Number of poles 8
- L. R. Amperes 440/220 A
- No load current 35.0/17.5 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 900 rpm
- Rated current 77.1/38.6 A
- Breakdown torque 220 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.15
- Approx. weight³ 936 lb
- Number of Poles 8
- Insulation Class F
- Mounting F-1
- Rated voltage 230/460 V
- Moment of inertia (J) 23.5 sq.ft.lb
- Starting Method Direct On Line
- Output rating 30 HP
- Frame 364/5T
- Temperature rise 80 K
- Voltage 230/460//380 V
- Output 30 HP (22 kW)
- Design B
- Enclosure IC411 - TEFC
- Flange Without
- LRC 5.7x(Code G)
- Locked rotor time 25s (cold) 14s (hot)
- Noise level² 62.0 dB(A)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03009XT3E364T Specs
