02518ST3QAP284T-W22 WEG AC Motors
Part#:02518ST3QAP284T-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

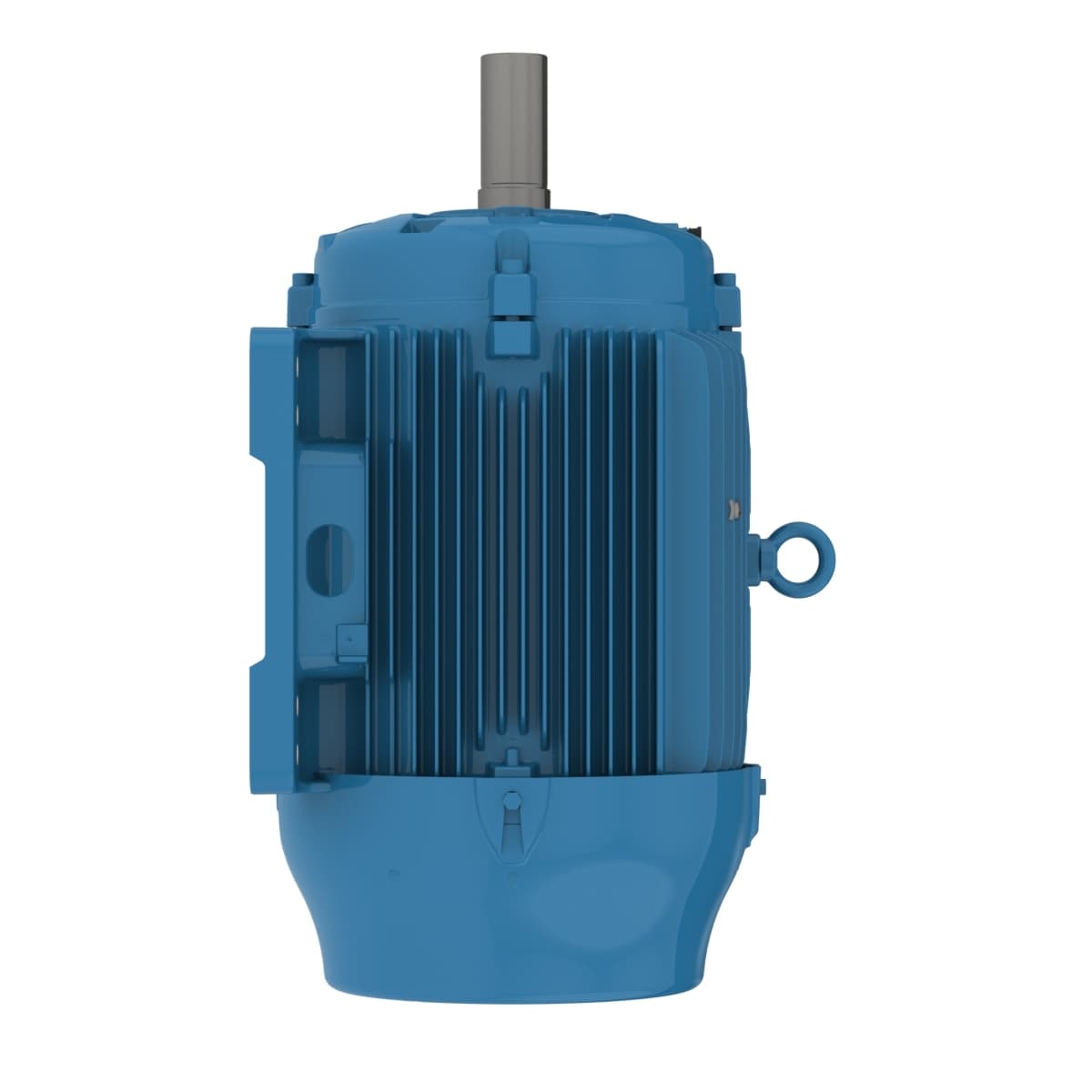

W22 IEEE 841 NEMA Premium Efficiency 25 HP 4P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02518ST3QAP284T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 183 A
- Insulation Class F
- Flange Without
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Rated voltage 460 V
- Moment of inertia (J) 5.11 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Approx. weight³ 409 lb
- Rated speed 1770 rpm
- Locked rotor torque 240 %
- Temperature rise 80 K
- Voltage 460 V
- Rated current 29.5 A
- Design B
- Standard NEMA MG-1
- LRC 6.2x(Code G)
- Service factor 1.15
- Mounting W-8
- Slip 1.67 %
- Locked rotor time 43s (cold) 24s (hot)
- Starting Method Direct On Line
- Number of poles 4
- Terminal box¹ Left position
- Number of Poles 4
- Output 25 HP (18.5 kW)
- No load current 11.0 A
- Degree of Protection IP56
- Noise level² 63.0 dB(A)
- Breakdown torque 270 %
- Frame 284/6T
- Rated torque 74.2 ft.lb
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Output rating 25 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
