02518OT3H284T-W40G WEG AC Motors
Part#:02518OT3H284T-W40G
Manufacturer:WEG
Alt. Part#:7909492267867
Product Lifecycle:Active
Get a quick Quote!

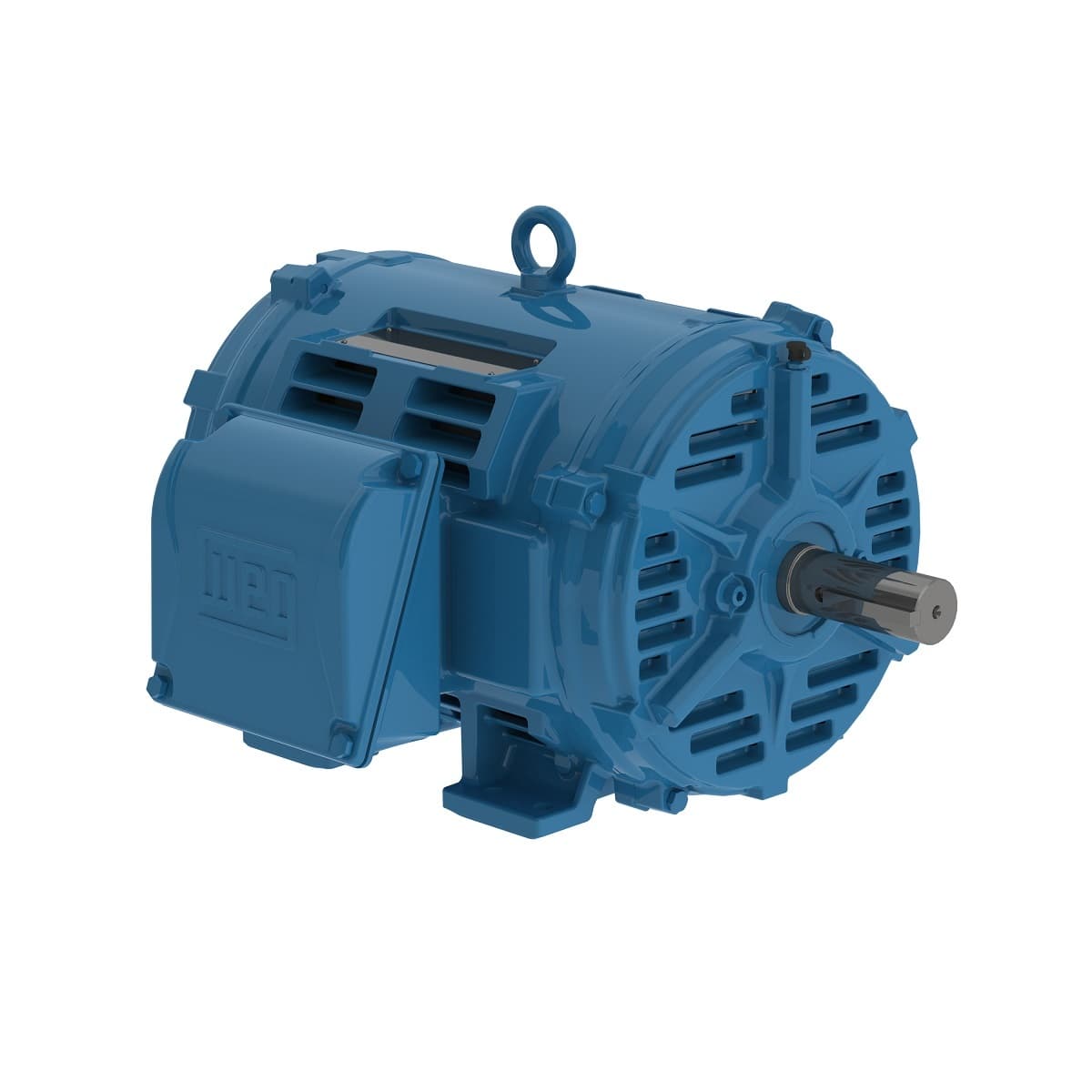

W40 NEMA Premium Efficiency 25 HP 4P 284T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02518OT3H284T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Rated voltage 575 V
- Rated torque 74.2 ft.lb
- Design B
- Mounting F-1
- Number of poles 4
- Slip 1.67 %
- Locked rotor time 59s (cold) 33s (hot)
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 351 lb
- L. R. Amperes 149 A
- Output 25 HP (18.5 kW)
- Breakdown torque 270 %
- Insulation Class F
- Degree of Protection IP23
- Voltage 575 V
- LRC 6.3x(Code G)
- Ambient temperature -20°C to +40°C
- Rated speed 1770 rpm
- Frame 284T
- Locked rotor torque 229 %
- Service factor 1.25
- Temperature rise 80 K
- Starting Method Direct On Line
- Noise level² 64.0 dB(A)
- Standard NEMA MG-1
- Output rating 25 HP
- Frequency 60 Hz
- No load current 8.32 A
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- Number of Poles 4
- Moment of inertia (J) 3.71 sq.ft.lb
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Flange Without
- Rated current 23.6 A
