02509XT3E326T WEG AC Motors
Part#:02509XT3E326T
Manufacturer:WEG
Alt. Part#:7909522001553
Product Lifecycle:Active
Get a quick Quote!

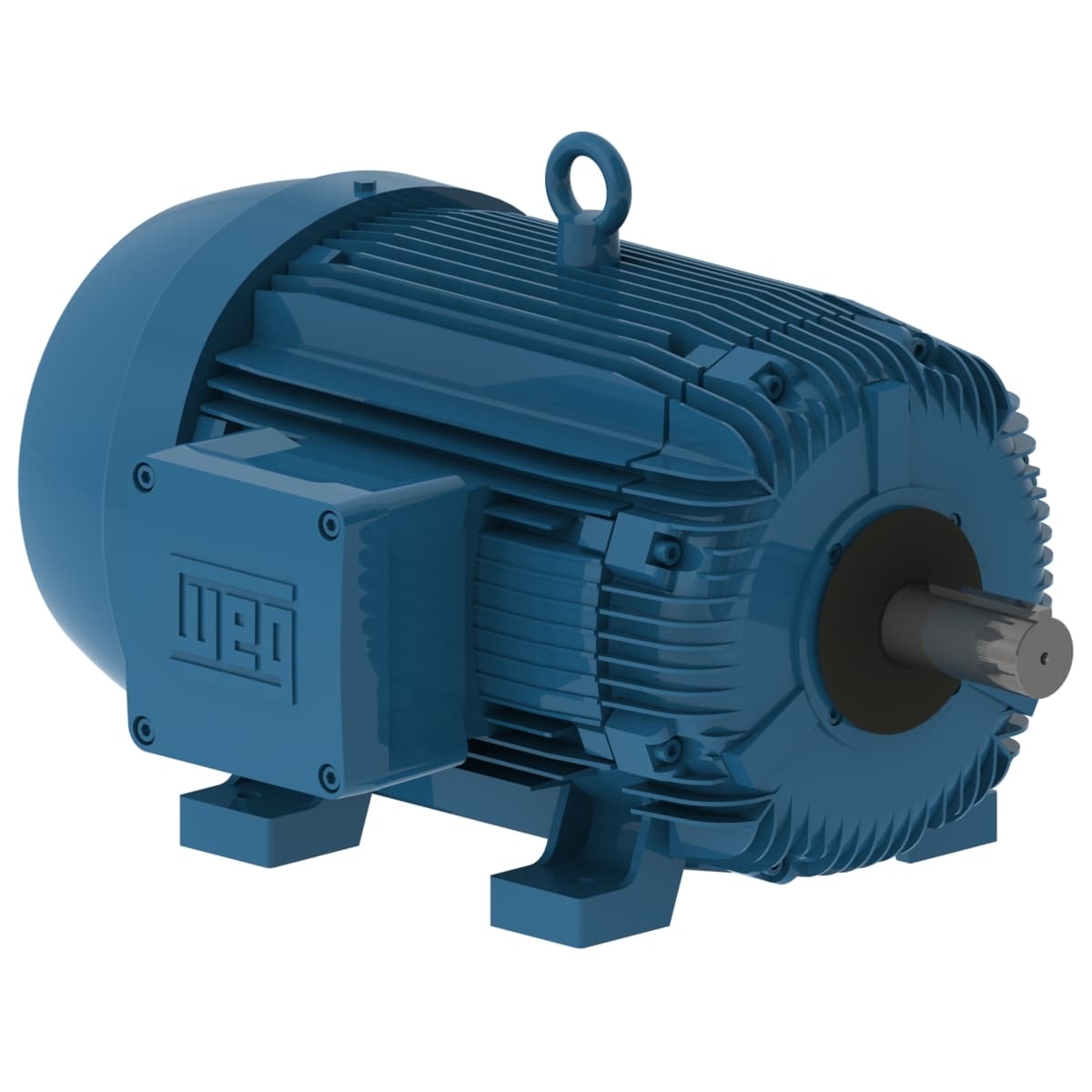

W21 Explosion-proof Motor NEMA Premium Efficiency 25 HP 8P 326T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 02509XT3E326T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed885 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- No load current 40.7/20.4 A
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated torque 148 ft.lb
- Output 25 HP (18.5 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Design B
- Enclosure IC411 - TEFC
- Number of Poles 8
- Frequency 60 Hz
- LRC 5.1x(Code G)
- Service factor 1.15
- Number of poles 8
- Breakdown torque 240 %
- Starting Method Direct On Line
- Synchronous speed 900 rpm
- Output rating 25 HP
- Rated speed 885 rpm
- Temperature rise 80 K
- Approx. weight³ 682 lb
- Slip 1.67 %
- Moment of inertia (J) 11.9 sq.ft.lb
- Mounting F-1
- Terminal box¹ Left position
- Frame 326T
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Rated current 70.8/35.4 A
- L. R. Amperes 361/181 A
- Insulation Class F
- Duty Cycle Cont.(S1)
- Noise level² 56.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02509XT3E326T Specs
