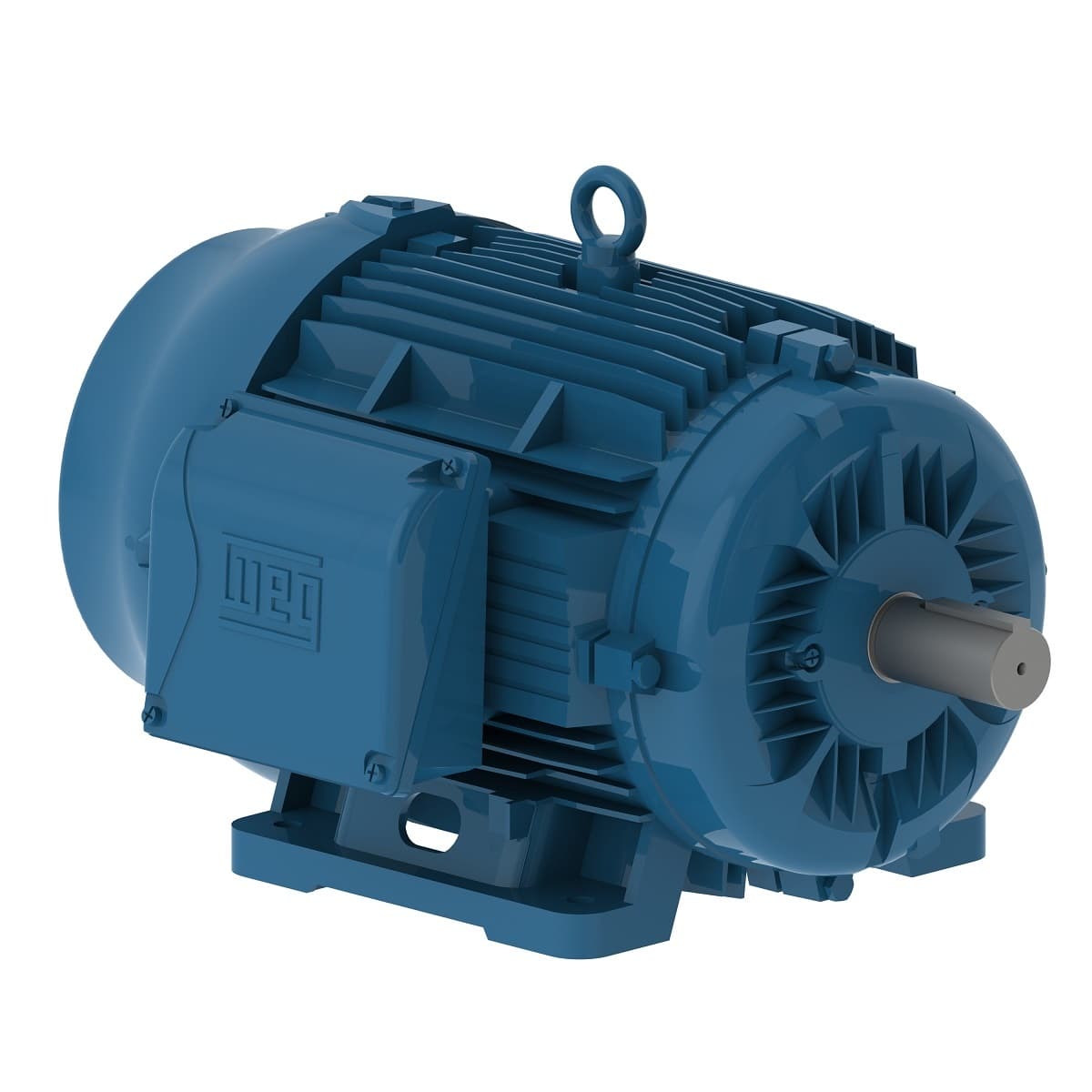

02509ET3E326T-W22 WEG AC Motors
Part#:02509ET3E326T-W22
Manufacturer:WEG
Alt. Part#:7891327160200
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 25 HP 8P 324/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 02509ET3E326T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 71.8/35.9 A
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Slip 2.22 %
- Moment of inertia (J) 11.9 sq.ft.lb
- Starting Method Direct On Line
- Synchronous speed 900 rpm
- Rated speed 880 rpm
- Design B
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frequency 60 Hz
- No load current 40.0/20.0 A
- Mounting F-1
- Standard NEMA MG-1
- Locked rotor torque 200 %
- Output 25 HP (18.5 kW)
- Altitude 1000 m.a.s.l.
- LRC 5.2x(Code G)
- Breakdown torque 229 %
- Noise level² 56.0 dB(A)
- Number of Poles 8
- Temperature rise 80 K
- Flange Without
- Approx. weight³ 555 lb
- Rated voltage 230/460 V
- Rated torque 149 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Frame 324/6T
- Locked rotor time 41s (cold) 23s (hot)
- Degree of Protection IP55
- Number of poles 8
- L. R. Amperes 373/187 A
- Service factor 1.25
- Output rating 25 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02509ET3E326T-W22 Specs
1-year warranty
