02036OT3V254JM WEG AC Motors
Part#:02036OT3V254JM
Manufacturer:WEG
Alt. Part#:7909322206325
Product Lifecycle:Active
Get a quick Quote!

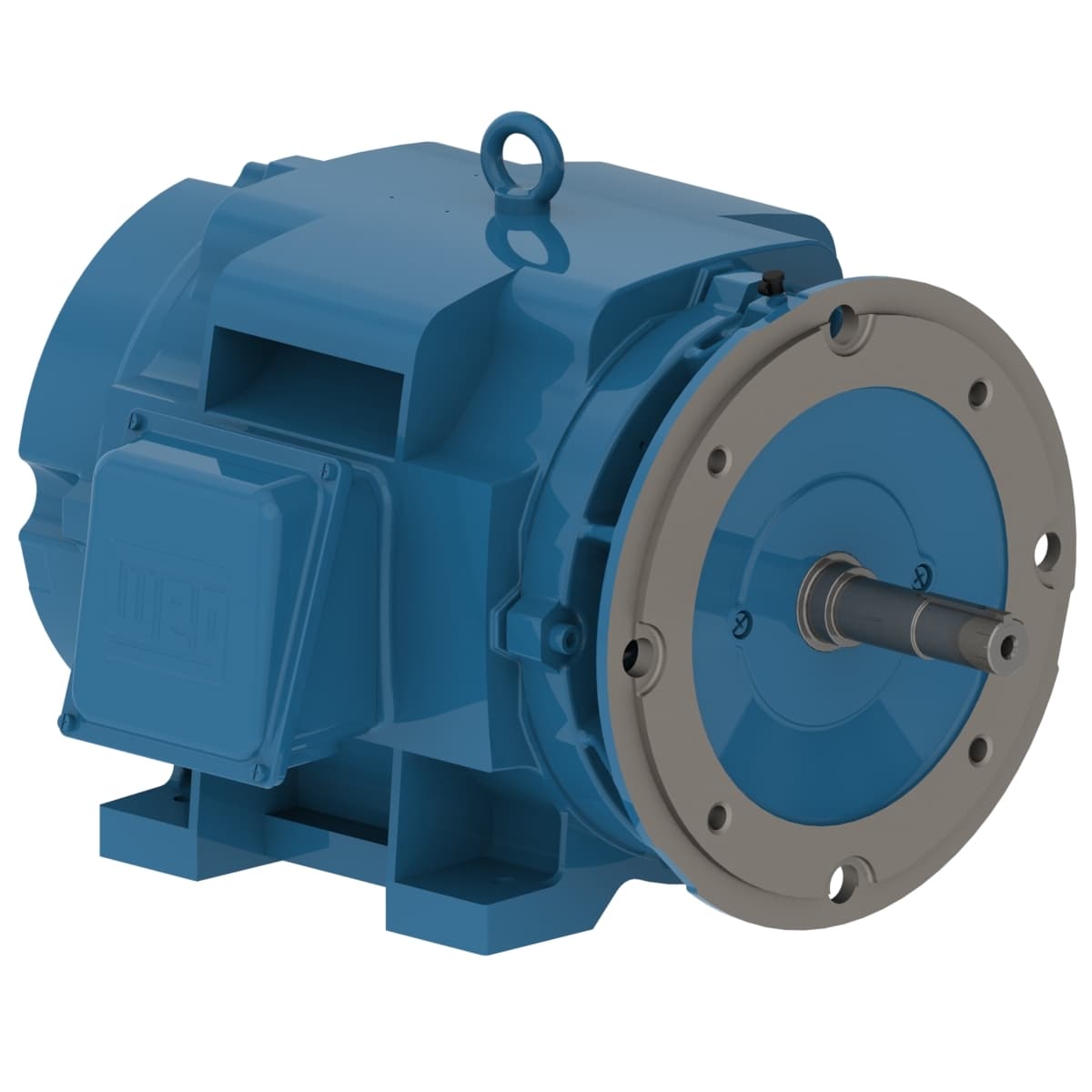

Close Coupled Pump NEMA Premium Efficiency 20 HP 2P 254JM 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02036OT3V254JM WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Rated voltage 200/400 V
- Design B
- Degree of Protection IP23
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Noise level² 66.0 dB(A)
- Rated current 56.6/28.3 A
- Locked rotor time 21s (cold) 12s (hot)
- Starting Method Direct On Line
- Voltage 200/400 V
- Output 20 HP (15 kW)
- Temperature rise 80 K
- Breakdown torque 250 %
- Output rating 20 HP
- L. R. Amperes 317/158 A
- No load current 20.9/10.5 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 200 lb
- Rated torque 29.8 ft.lb
- Mounting F-1
- Terminal box¹ Left position
- Number of Poles 2
- Moment of inertia (J) 0.7328 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated speed 3520 rpm
- Locked rotor torque 160 %
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Slip 2.22 %
- LRC 5.6x(Code F)
- Service factor 1.15
- Frame 254JM
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
