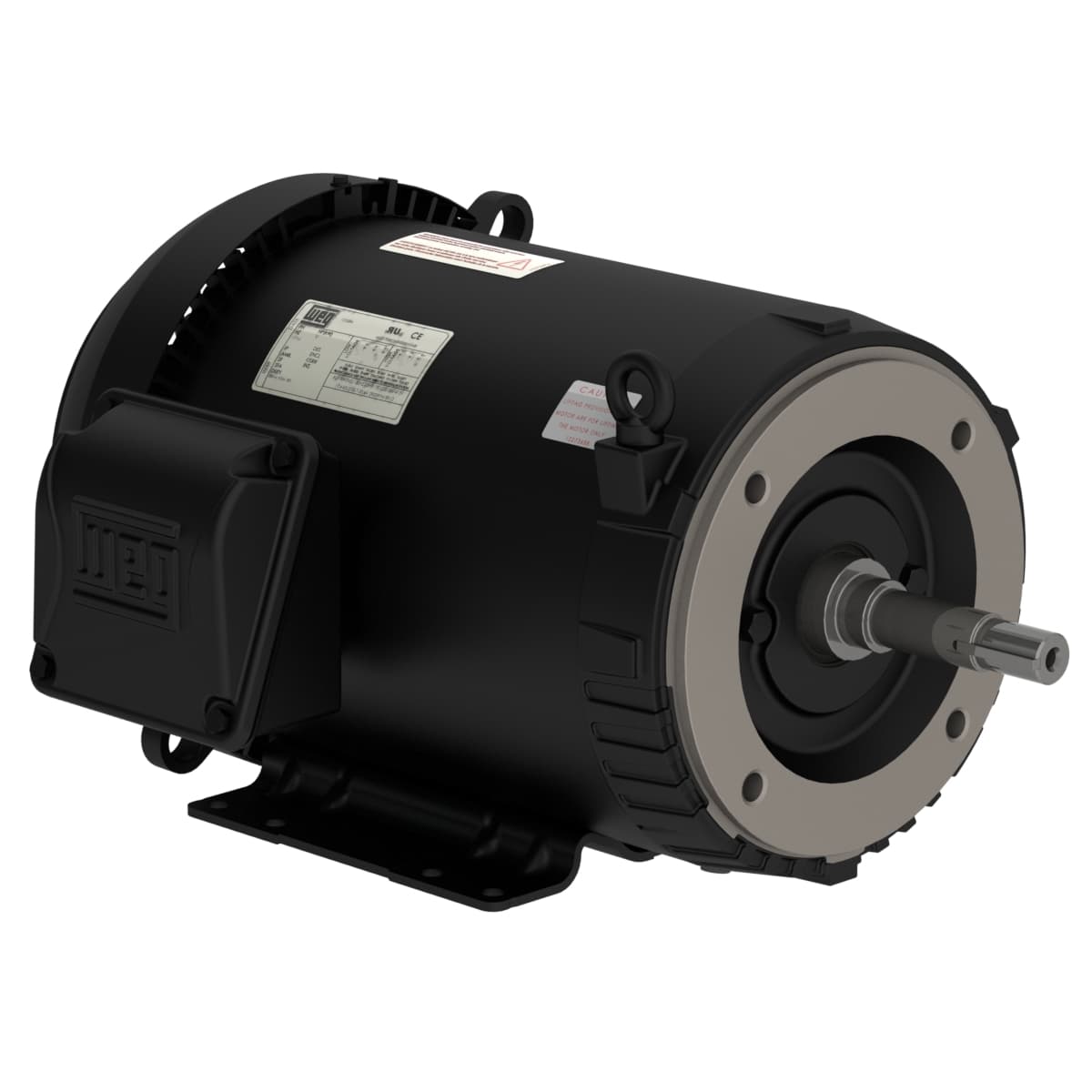

02036ET3V256JM-S WEG AC Motors
Part#:02036ET3V256JM-S
Manufacturer:WEG
Alt. Part#:7899058014861
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel JM Pump NEMA Premium Efficiency 20 HP 2P 254/6JM 3Ph 200/400 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02036ET3V256JM-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3515 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Output 20 HP (15 kW)
- Temperature rise 80 K
- Noise level² 75.0 dB(A)
- Frame 254/6JM
- LRC 6.6x(Code G)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- No load current 15.8/7.91 A
- Rated torque 29.9 ft.lb
- Approx. weight³ 233 lb
- Slip 2.36 %
- Breakdown torque 290 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Number of Poles 2
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Number of poles 2
- Rated voltage 200/400 V
- Moment of inertia (J) 1.22 sq.ft.lb
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated current 52.2/26.1 A
- Design B
- Degree of Protection IP55
- Flange C
- Frequency 60 Hz
- Locked rotor time 21s (cold) 12s (hot)
- Enclosure IC411 - TEFC
- Output rating 20 HP
- L. R. Amperes 345/172 A
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Rated speed 3515 rpm
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Voltage 200/400 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
