02036OT3H254T-S WEG AC Motors
Part#:02036OT3H254T-S
Manufacturer:WEG
Alt. Part#:7909158679782
Product Lifecycle:Active
Get a quick Quote!

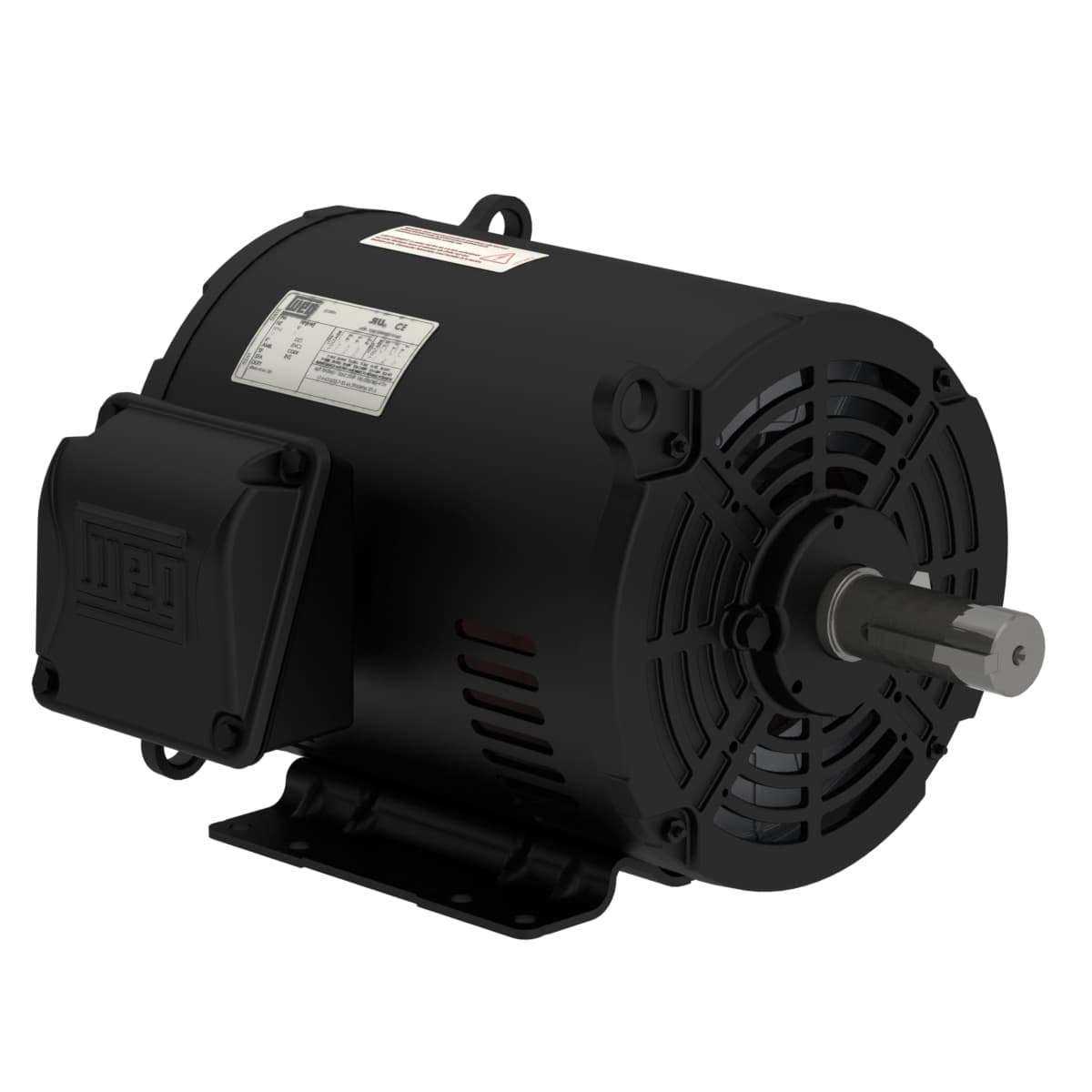

Rolled Steel NEMA Premium Efficiency 20 HP 2P 254/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02036OT3H254T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3525 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated current 19.0 A
- Breakdown torque 240 %
- Temperature rise 80 K
- Standard NEMA MG-1
- L. R. Amperes 114 A
- Insulation Class F
- Approx. weight³ 168 lb
- LRC 6.0x(Code G)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Frame 254/6T
- No load current 6.80 A
- Starting Method Direct On Line
- Number of poles 2
- Number of Poles 2
- Locked rotor time 23s (cold) 13s (hot)
- Noise level² 70.0 dB(A)
- Terminal box¹ Left position
- Frequency 60 Hz
- Moment of inertia (J) 0.7848 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 20 HP
- Output 20 HP (15 kW)
- Locked rotor torque 180 %
- Mounting F-1
- Rated speed 3525 rpm
- Design B
- Rotation¹ Both (CW and CCW)
- Flange Without
- Rated voltage 575 V
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Slip 2.08 %
- Rated torque 29.8 ft.lb
- Service factor 1.15
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02036OT3H254T-S Specs
1-year warranty
