02036OT3H254JM-SG WEG AC Motors
Part#:02036OT3H254JM-SG
Manufacturer:WEG
Alt. Part#:7899058014465
Product Lifecycle:Active
Get a quick Quote!

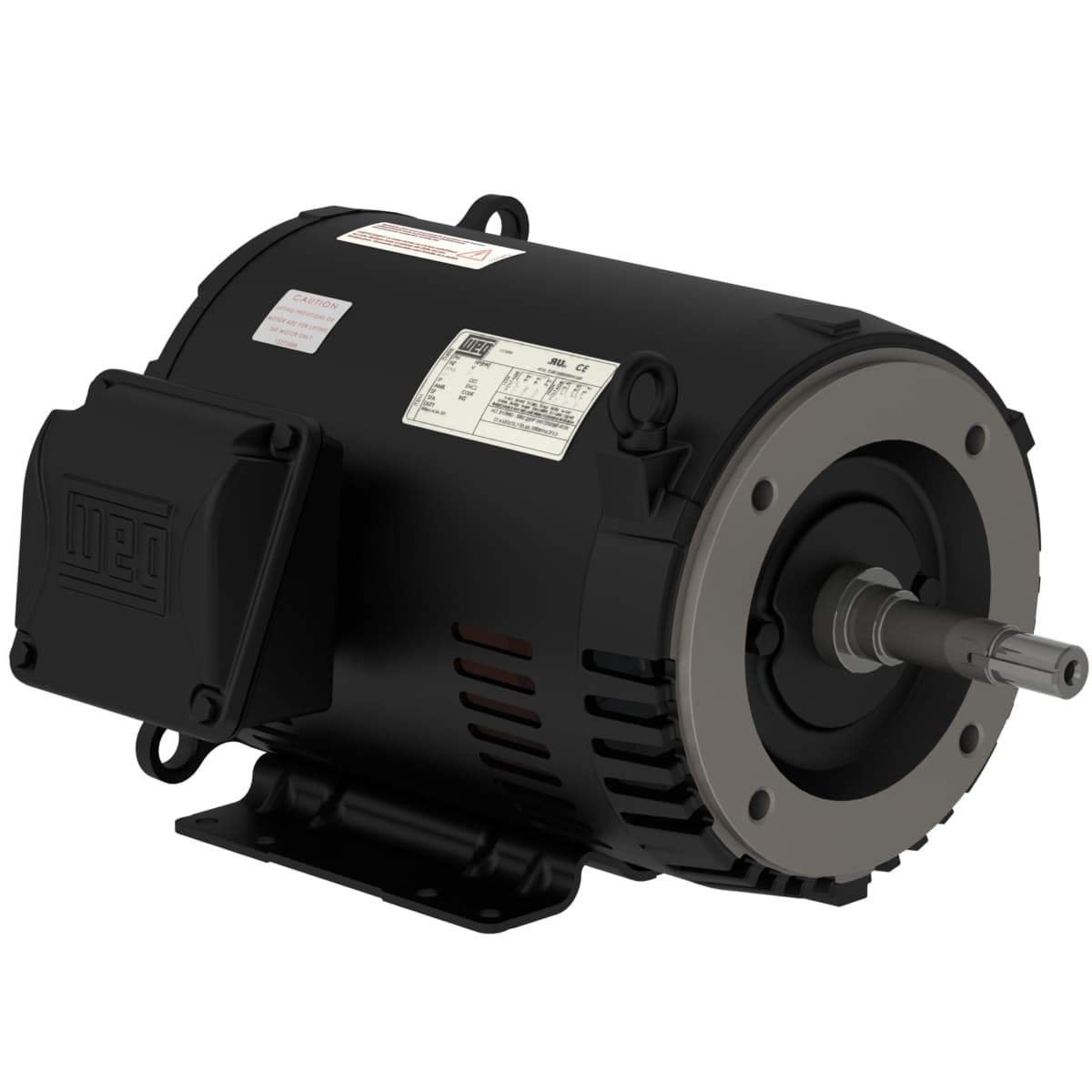

Rolled Steel JM Pump NEMA Premium Efficiency 20 HP 2P 254/6JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02036OT3H254JM-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3525 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Number of Poles 2
- Rated torque 29.8 ft.lb
- Duty Cycle Cont.(S1)
- Mounting F-1
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Rated voltage 575 V
- Insulation Class F
- Noise level² 70.0 dB(A)
- Output rating 20 HP
- Rated speed 3525 rpm
- Output 20 HP (15 kW)
- LRC 6.0x(Code G)
- Temperature rise 80 K
- Design B
- Service factor 1.15
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Voltage 575 V
- Flange C
- Number of poles 2
- No load current 6.80 A
- Locked rotor time 23s (cold) 13s (hot)
- Altitude 1000 m.a.s.l.
- Frame 254/6JM
- Locked rotor torque 180 %
- Starting Method Direct On Line
- Approx. weight³ 151 lb
- Standard NEMA MG-1
- Terminal box¹ Left position
- Breakdown torque 240 %
- Slip 2.08 %
- Moment of inertia (J) 0.7848 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated current 19.0 A
- L. R. Amperes 114 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
