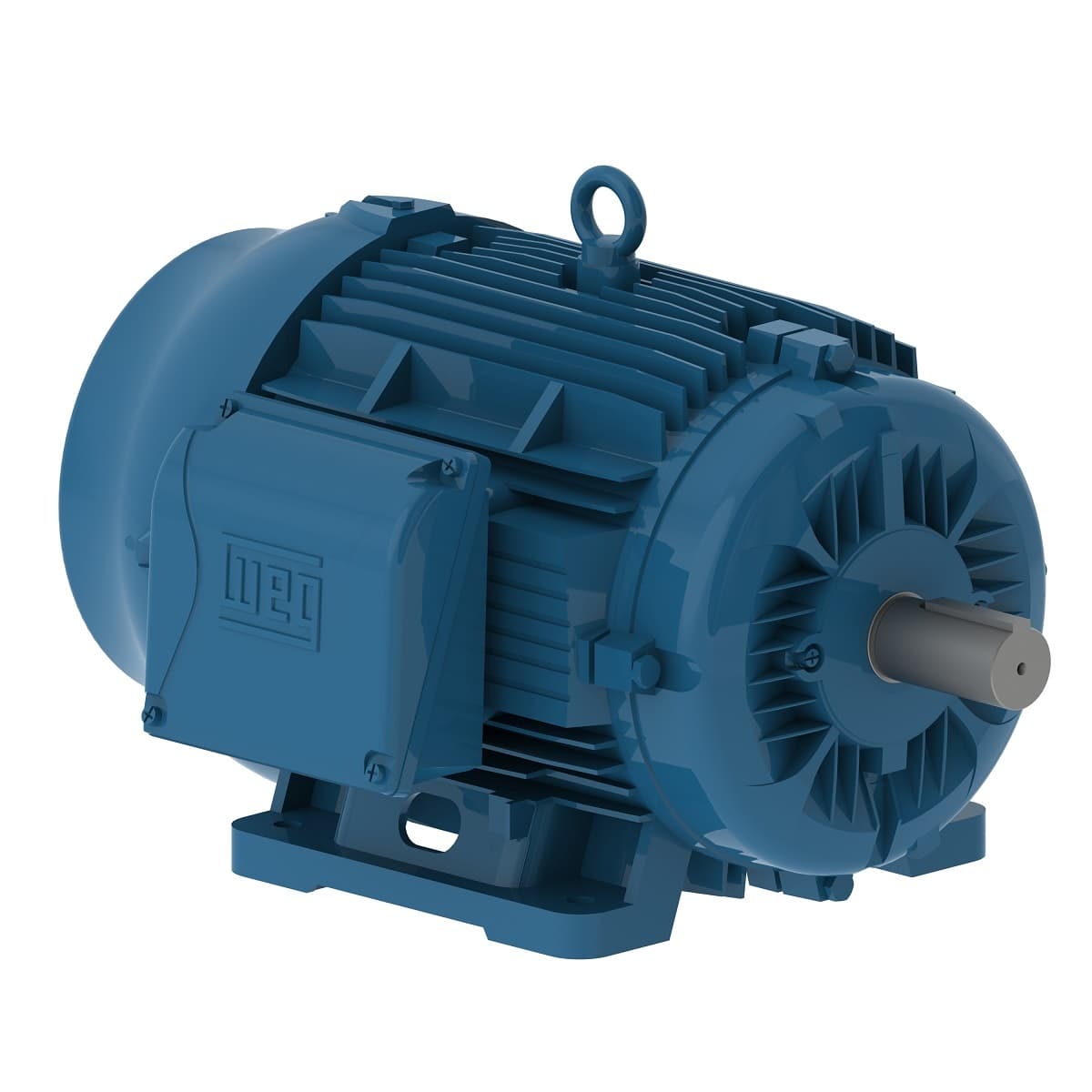

02036ET3H256T-W22 WEG AC Motors
Part#:02036ET3H256T-W22
Manufacturer:WEG
Alt. Part#:7891327159457
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 20 HP 2P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02036ET3H256T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3525 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- L. R. Amperes 113 A
- Duty Cycle Cont.(S1)
- Rated voltage 575 V
- Voltage 575 V
- Number of Poles 2
- Insulation Class F
- Design B
- No load current 5.20 A
- Mounting F-1
- Output rating 20 HP
- Slip 2.08 %
- Breakdown torque 240 %
- Noise level² 72.0 dB(A)
- Rated speed 3525 rpm
- Locked rotor torque 200 %
- Degree of Protection IP55
- Output 20 HP (15 kW)
- LRC 6.1x(Code G)
- Temperature rise 80 K
- Number of poles 2
- Frame 254/6T
- Service factor 1.25
- Enclosure IC411 - TEFC
- Flange Without
- Frequency 60 Hz
- Locked rotor time 25s (cold) 14s (hot)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 261 lb
- Rated current 18.6 A
- Rated torque 29.8 ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Moment of inertia (J) 1.54 sq.ft.lb
- Synchronous speed 3600 rpm
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02036ET3H256T-W22 Specs
1-year warranty
