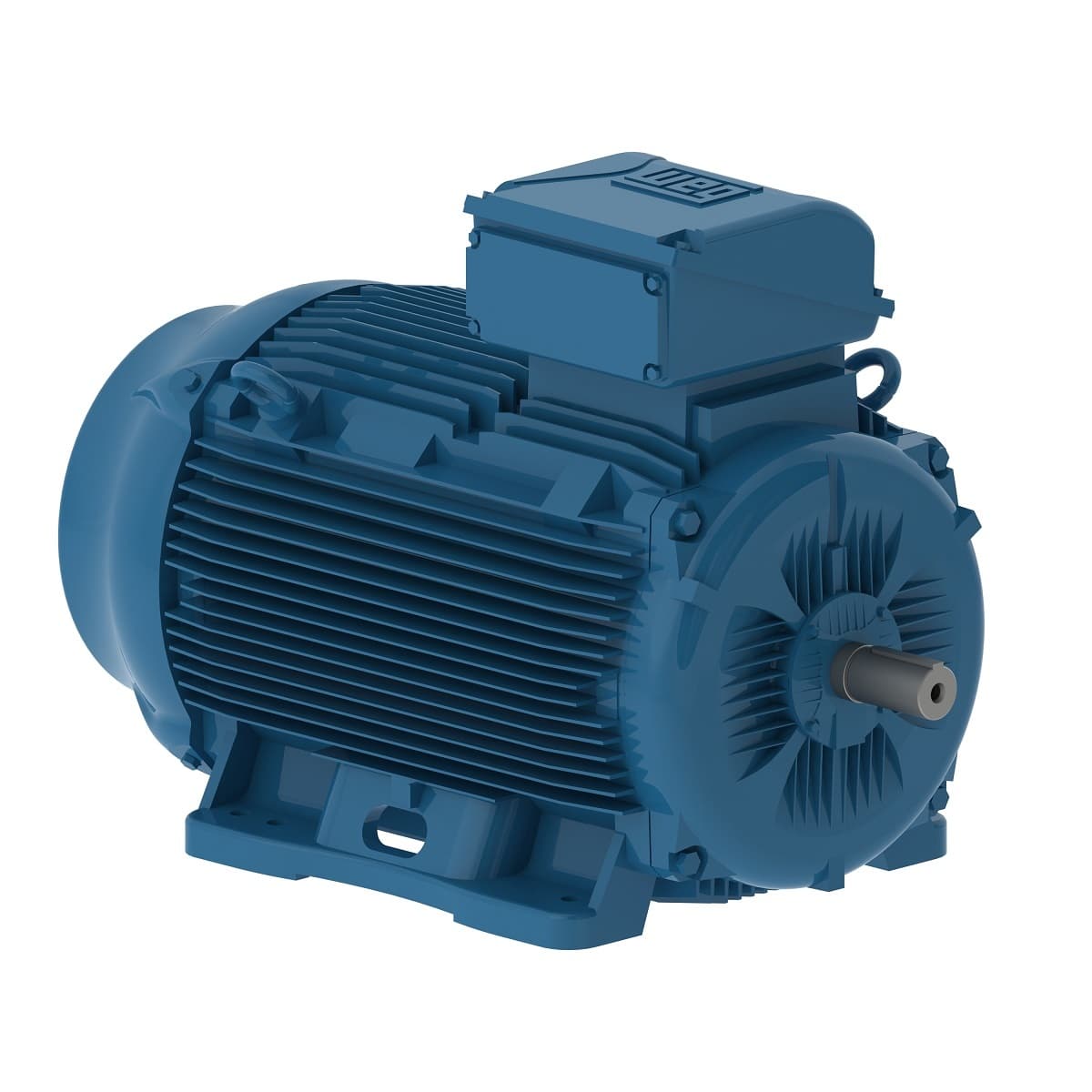

01812ET3E200LF3-W22 WEG AC Motors
Part#:01812ET3E200LF3-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 Tru-Metric IE3 25 HP 6P 200L 3Ph 208-230/460//380-415 V 60 Hz IC411 - TEFC - B3T
Check out the 01812ET3E200LF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- L. R. Amperes 208 A
- Temperature rise 80 K
- Approx. weight³ 492 lb
- Rated speed 979 rpm
- Locked rotor time 34s (cold) 19s (hot)
- Duty Cycle S1
- Synchronous speed 1200 rpm
- Frame 200L
- Design N
- Rotation¹ Both (CW and CCW)
- Number of poles 6
- Slip 2.10 %
- No load current 14.6 A
- Noise level² 60.0 dB(A)
- Flange Without
- Frequency 50 Hz
- Locked rotor torque 200 %
- Mounting B3T
- Number of Poles 6
- Rated torque 134 ft.lb
- Starting Method Direct On Line
- Voltage 208-230/460//380-415 V
- LRC 5.6
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 37.2 A
- Moment of inertia (J) 9.16 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Rated voltage 380 V
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Output rating 25 HP
- Output 25 HP (18.5 kW)
- Insulation Class F
- Degree of Protection IP55
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01812ET3E200LF3-W22 Specs
