01526EP3QCT286V-W22 WEG AC Motors
Part#:01526EP3QCT286V-W22
Manufacturer:WEG
Alt. Part#:7899058007986
Product Lifecycle:Active
Get a quick Quote!

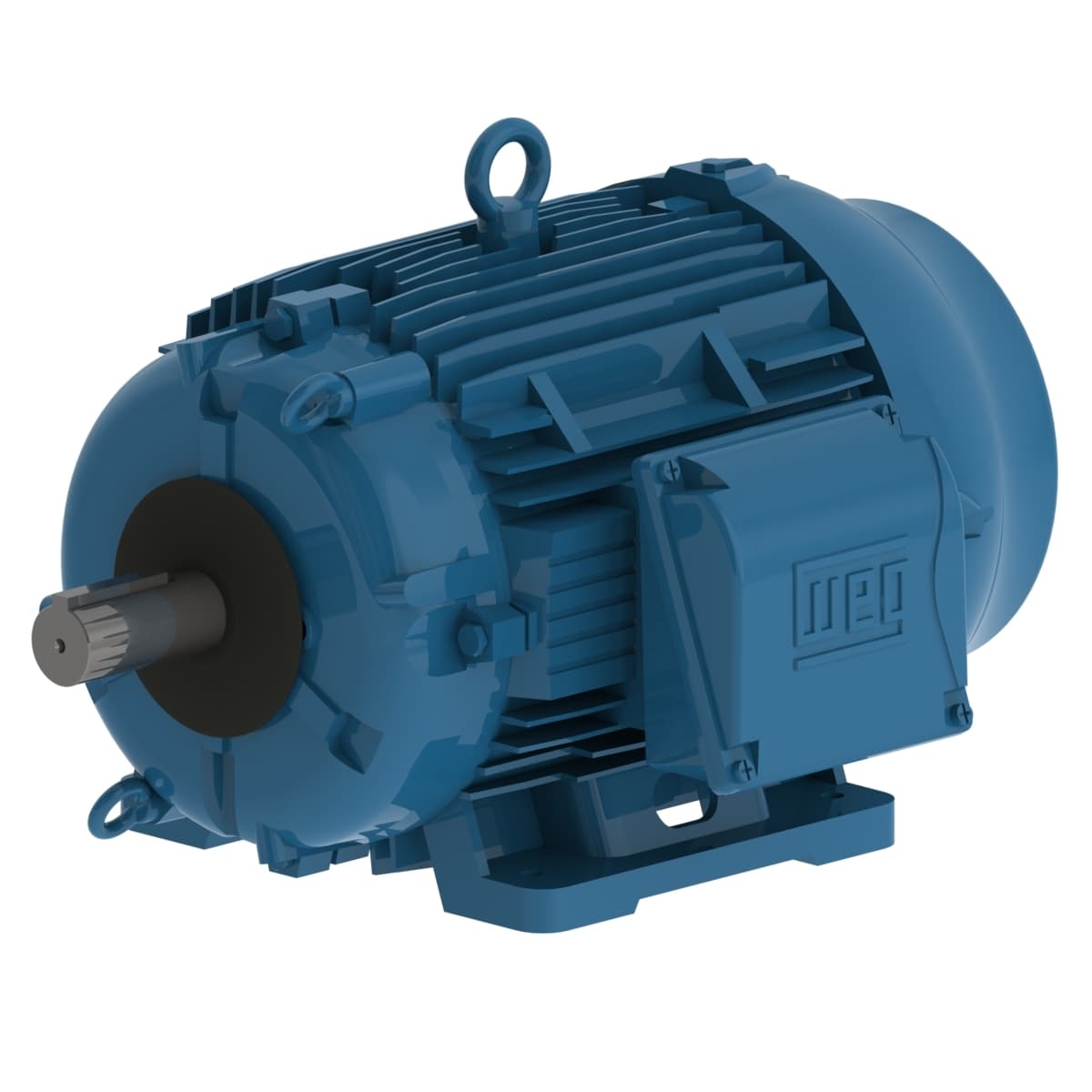

W22 Cooling Tower High Efficiency 3.75/15 HP 12/6P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01526EP3QCT286V-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3.75/15 HP
- Rated Speed580 rpm
- Number of Poles45632 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 12/6
- Service factor 1.15
- Voltage 460 V
- Frame 284/6T
- Breakdown torque 180 %
- Enclosure IC411 - TEFC
- Output rating 3.75/15 HP
- Frequency 60 Hz
- No load current 4.00 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 485 lb
- Rated speed 580 rpm
- Locked rotor torque 130 %
- Rotation¹ Both (CW and CCW)
- Flange Without
- L. R. Amperes 21.3 A
- Insulation Class F
- Noise level² 65.0 dB(A)
- Output 3.75 HP (2.8 kW)
- Starting Method Direct On Line
- Synchronous speed 600/1200 rpm
- Rated current 6.44 A
- Temperature rise 80 K
- Number of poles 12/6
- Rated voltage 460 V
- Moment of inertia (J) 9.16 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Slip 3.33 %
- Rated torque 34.0 ft.lb
- Mounting F-2
- Standard NEMA MG-1
- LRC 3.3x(Code E)
- Locked rotor time 162s (cold) 90s (hot)
- Degree of Protection IP55
- Terminal box¹ Right position
