01526EP3HCT286VF1-W2 WEG AC Motors
Part#:01526EP3HCT286VF1-W2
Manufacturer:WEG
Alt. Part#:7909323997550
Product Lifecycle:Active
Get a quick Quote!

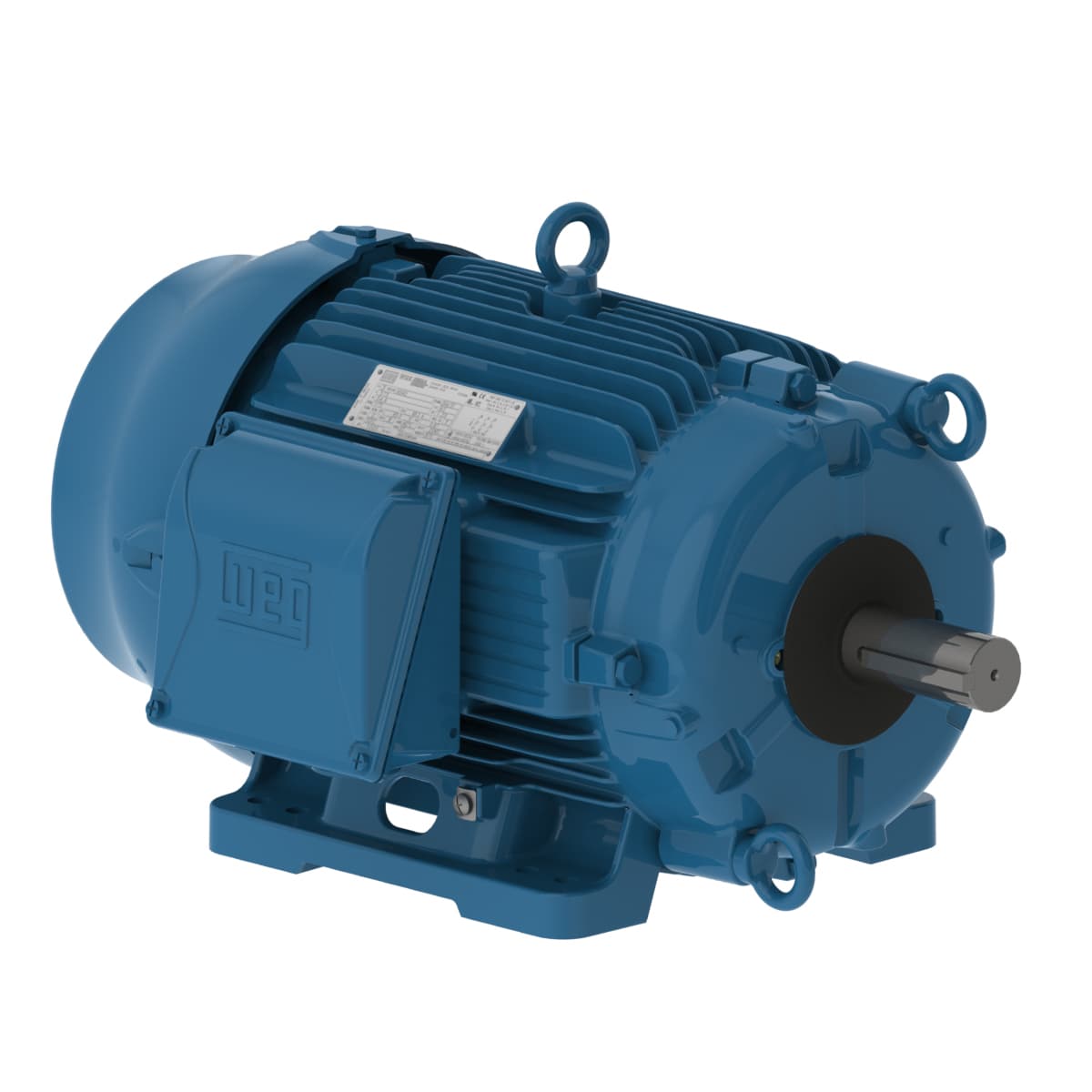

W22 Cooling Tower High Efficiency 3.75/15 HP 12/6P 284/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01526EP3HCT286VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3.75/15 HP
- Rated Speed580 rpm
- Number of Poles45632 Pole
- Voltage575 V
- Flange TypeWithout
- Frame 284/6T
- LRC 3.3x(Code E)
- Temperature rise 80 K
- Approx. weight³ 449 lb
- Output 3.75 HP (2.8 kW)
- No load current 3.20 A
- Starting Method Direct On Line
- Synchronous speed 600/1200 rpm
- Locked rotor time 162s (cold) 90s (hot)
- Altitude 1000 m.a.s.l.
- L. R. Amperes 17.0 A
- Breakdown torque 180 %
- Ambient temperature -20°C to +40°C
- Enclosure IC411 - TEFC
- Moment of inertia (J) 9.16 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Without
- Slip 3.33 %
- Locked rotor torque 130 %
- Mounting F-1
- Output rating 3.75/15 HP
- Number of Poles 12/6
- Service factor 1.15
- Noise level² 65.0 dB(A)
- Terminal box¹ Left position
- Rated speed 580 rpm
- Rated torque 34.0 ft.lb
- Degree of Protection IP55
- Voltage 575 V
- Rated voltage 575 V
- Duty Cycle Cont.(S1)
- Number of poles 12/6
- Frequency 60 Hz
- Insulation Class F
- Standard NEMA MG-1
- Rated current 5.15 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01526EP3HCT286VF1-W2 Specs
