01512ST3QIE284TC-W22 WEG AC Motors
Part#:01512ST3QIE284TC-W22
Manufacturer:WEG
Alt. Part#:7899146769871
Product Lifecycle:Active
Get a quick Quote!

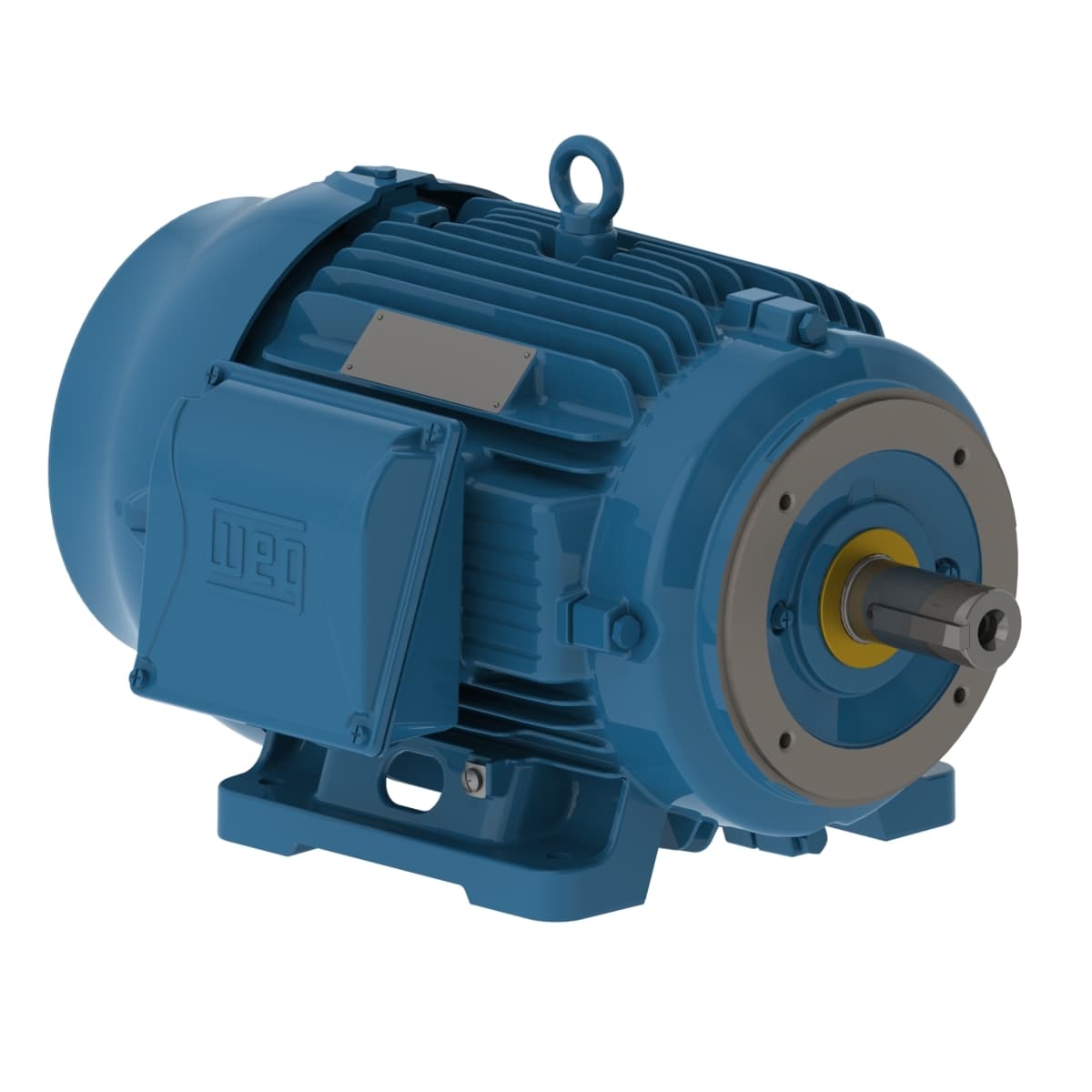

W22 IEEE 841 NEMA Premium Efficiency 15 HP 6P 284/6TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01512ST3QIE284TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeC
- Rated speed 1175 rpm
- Rated torque 67.0 ft.lb
- Degree of Protection IP56
- Slip 2.08 %
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Rated current 17.9 A
- Moment of inertia (J) 7.85 sq.ft.lb
- Noise level² 59.0 dB(A)
- Frequency 60 Hz
- Temperature rise 80 K
- Mounting F-1
- Output rating 15 HP
- LRC 6.4x(Code G)
- Service factor 1.25
- Standard NEMA MG-1
- Flange C
- Output 15 HP (11 kW)
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Number of Poles 6
- No load current 7.00 A
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Rated voltage 460 V
- Breakdown torque 260 %
- Approx. weight³ 409 lb
- Terminal box¹ Left position
- Frame 284/6TC
- Design B
- Altitude 1000 m.a.s.l.
- Number of poles 6
- L. R. Amperes 115 A
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Voltage 460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01512ST3QIE284TC-W22 Specs
1-year warranty
