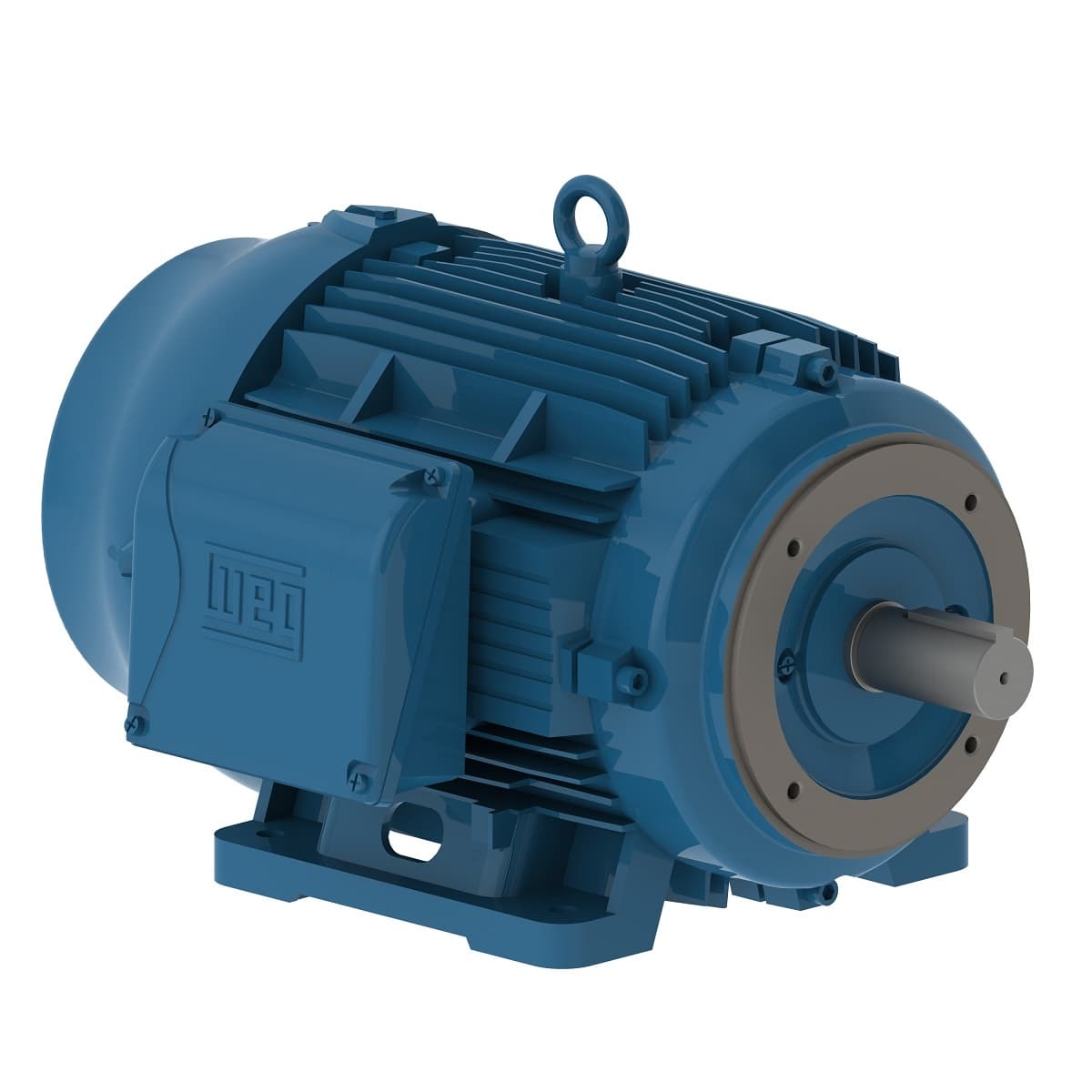

01518ET3E254TC-W22 WEG AC Motors
Part#:01518ET3E254TC-W22
Manufacturer:WEG
Alt. Part#:7909158053490
Product Lifecycle:Active
In-stock parts: 1
Jun 20, 2025
W22 NEMA Premium Efficiency 15 HP 4P 254/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 01518ET3E254TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1768 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.78 %
- Design B
- Rated current 36.0/18.0 A
- Service factor 1.25
- Noise level² 64.0 dB(A)
- Rated speed 1768 rpm
- LRC 6.4x(Code G)
- Insulation Class F
- Standard NEMA MG-1
- Output 15 HP (11 kW)
- Locked rotor time 55s (cold) 31s (hot)
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated torque 44.6 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 290 lb
- L. R. Amperes 230/115 A
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Rated voltage 230/460 V
- Breakdown torque 260 %
- Degree of Protection IP55
- Number of poles 4
- Frequency 60 Hz
- No load current 14.0/7.00 A
- Altitude 1000 m.a.s.l.
- Number of Poles 4
- Locked rotor torque 240 %
- Mounting F-1
- Output rating 15 HP
- Frame 254/6TC
- Moment of inertia (J) 2.62 sq.ft.lb
- Starting Method Direct On Line
- Flange C
- Rotation¹ Both (CW and CCW)
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01518ET3E254TC-W22 Specs
1-year warranty
