01512OT3H284TC-W40 WEG AC Motors
Part#:01512OT3H284TC-W40
Manufacturer:WEG
Alt. Part#:7909492971900
Product Lifecycle:Active
Get a quick Quote!

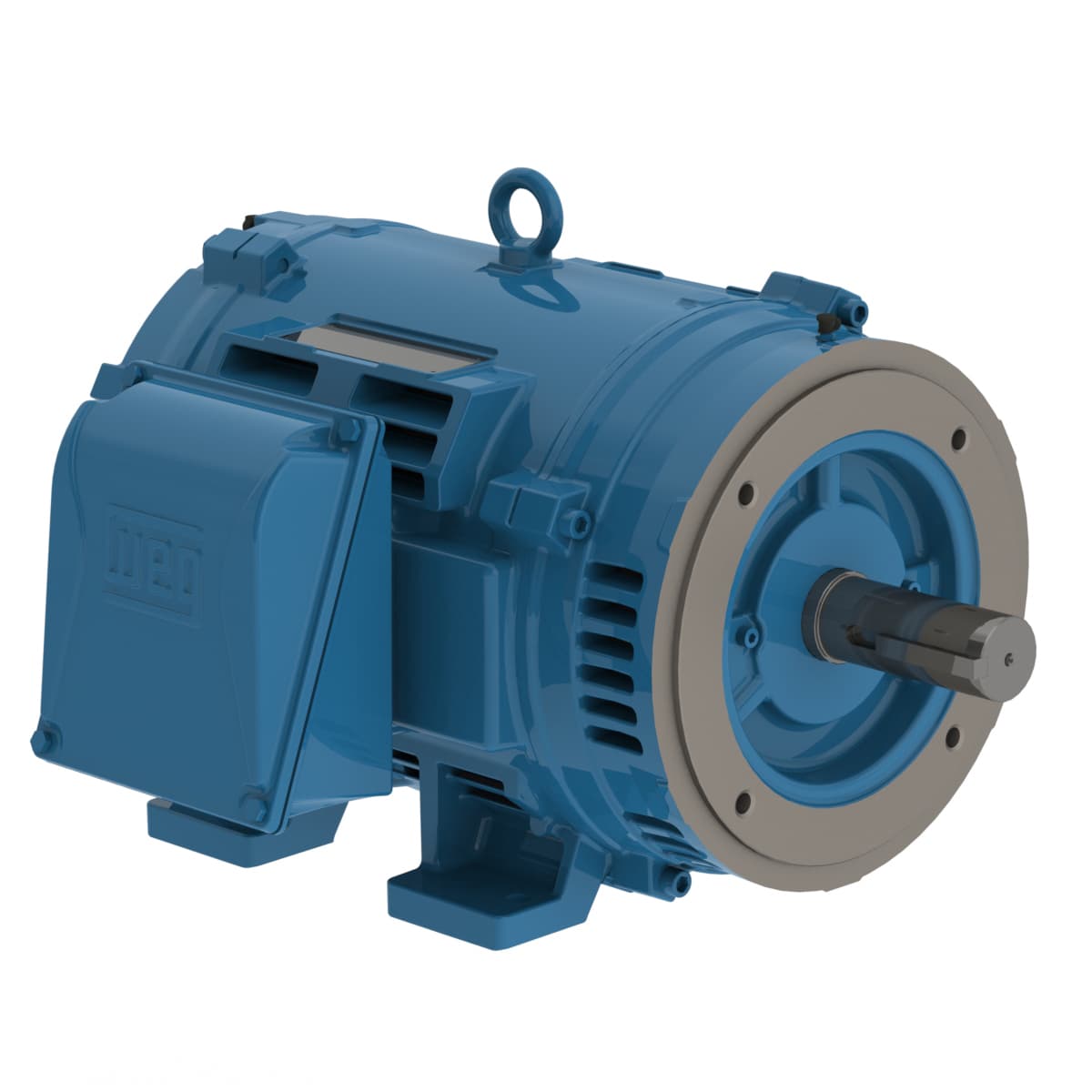

W40 NEMA Premium Efficiency 15 HP 6P 284TC 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01512OT3H284TC-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeC
- Rated current 14.7 A
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 6
- LRC 6.3x(Code G)
- Temperature rise 80 K
- Terminal box¹ Left position
- Output 15 HP (11 kW)
- Moment of inertia (J) 4.80 sq.ft.lb
- Duty Cycle Cont.(S1)
- Output rating 15 HP
- Frame 284TC
- Locked rotor torque 260 %
- Service factor 1.25
- Enclosure IC01 - ODP
- Synchronous speed 1200 rpm
- Number of Poles 6
- Rated torque 66.8 ft.lb
- Mounting F-1
- Flange C
- Frequency 60 Hz
- No load current 6.24 A
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Slip 1.67 %
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 92.7 A
- Insulation Class F
- Noise level² 59.0 dB(A)
- Rated speed 1180 rpm
- Locked rotor time 28s (cold) 16s (hot)
- Approx. weight³ 322 lb
- Rated voltage 575 V
- Breakdown torque 260 %
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01512OT3H284TC-W40 Specs
