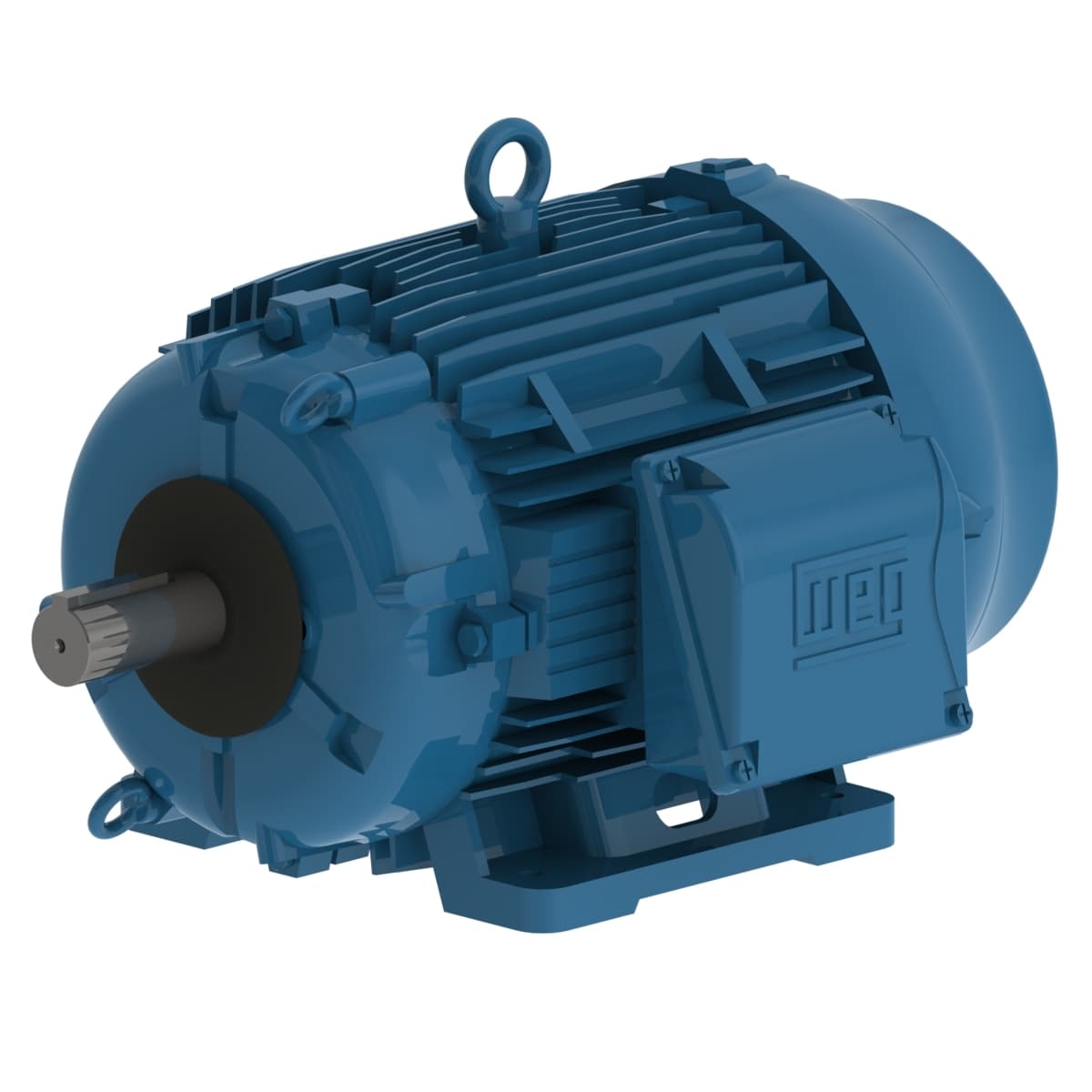

01089EP3QCT256V2-W22 WEG AC Motors
Part#:01089EP3QCT256V2-W22
Manufacturer:WEG
Alt. Part#:7909018678146
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 2.5/10 HP 8/4P 254/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01089EP3QCT256V2-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2.5/10 HP
- Rated Speed1775 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 1775 rpm
- Service factor 1.15
- Degree of Protection IP55
- Voltage 460 V
- Number of Poles 8/4
- L. R. Amperes 88.2 A
- Moment of inertia (J) 2.96 sq.ft.lb
- Slip 1.39 %
- Locked rotor torque 220 %
- Approx. weight³ 341 lb
- Frequency 60 Hz
- Breakdown torque 290 %
- Mounting F-2
- Starting Method Direct On Line
- Output 10 HP (7.5 kW)
- Insulation Class F
- Rated torque 29.6 ft.lb
- Standard NEMA MG-1
- Rated voltage 460 V
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Output rating 2.5/10 HP
- Rated current 12.3 A
- LRC 7.2x(Code H)
- Duty Cycle Cont.(S1)
- Frame 254/6T
- No load current 4.50 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 900/1800 rpm
- Number of poles 8/4
- Locked rotor time 30s (cold) 17s (hot)
- Noise level² 64.0 dB(A)
- Terminal box¹ Right position
- Flange Without
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01089EP3QCT256V2-W22 Specs
1-year warranty
